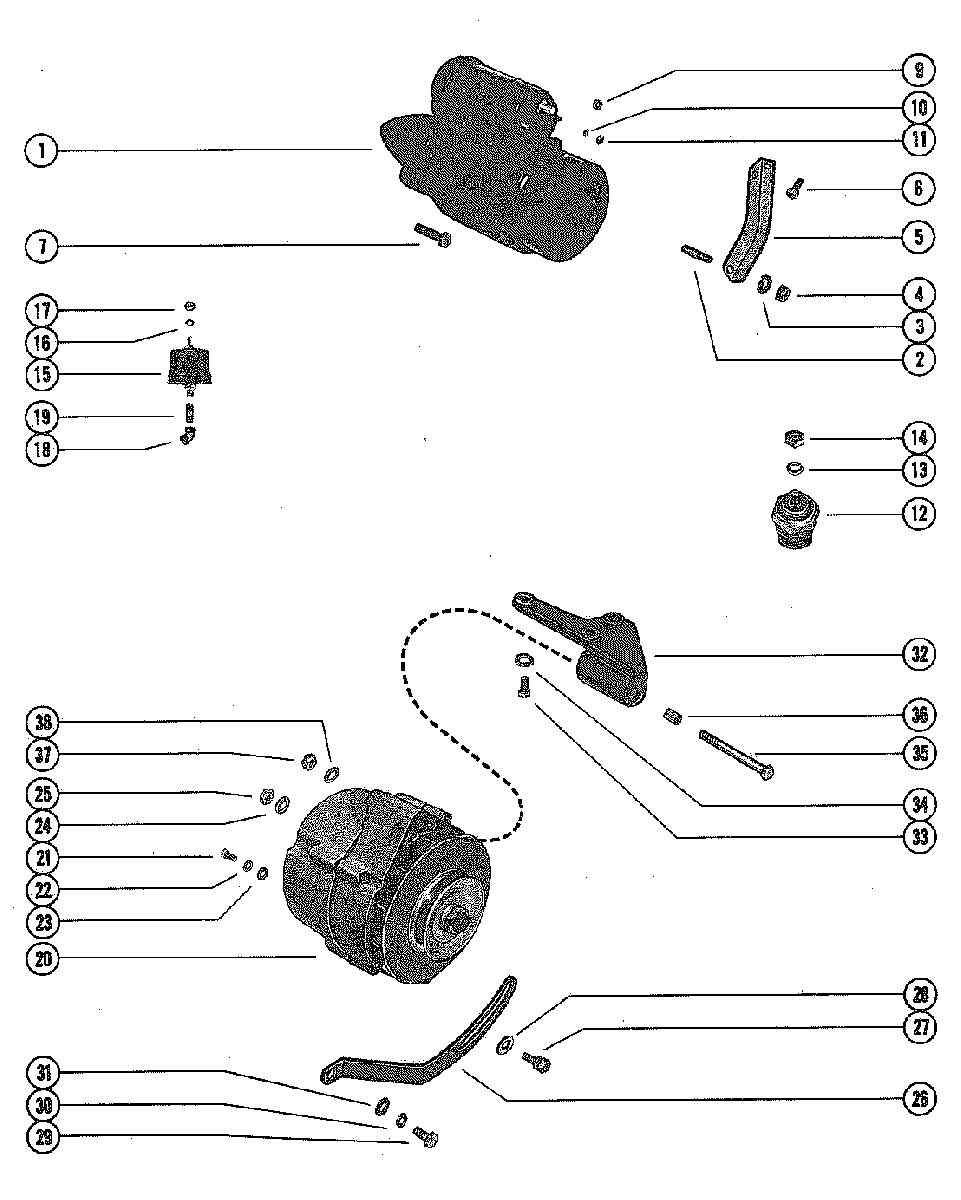

STARTER MOTOR AND ALTERNATOR для Mercruiser - 250 (2 BBL.) GM 350 V-8 1977 4768000 THRU 4908849

  • №
    Артикул
    Название
  • 1
    50-8M0090697 STARTER MOTOR ASSEMBLY (SEE NOTE BELOW)
    STARTER MOTOR ASSEMBLY (SEE NOTE BELOW)
  • 2
    16-52387 STUD, STARTER MOTOR
    STUD, STARTER MOTOR
  • 3
    13-26992 LOCKWASHER, STARTER MOTOR STUD
    LOCKWASHER, STARTER MOTOR STUD
  • 4
    11-20890 NUT, STARTER MOTOR STUD
    NUT, STARTER MOTOR STUD
  • 5
    35363 BRACE, STARTER MOTOR
    BRACE, STARTER MOTOR
  • 6
    10-35765A1 SCREW, BRACE TO ENGINE (5/8")
    SCREW, BRACE TO ENGINE (5/8")
  • 7
    10-94435001 SCREW, STARTER MOTOR TO CYLINDER BLOCK (4 21/32")
    SCREW, STARTER MOTOR TO CYLINDER BLOCK (4 21/32")
  • 7
    10-8053433 SCREW, STARTER MOTOR TO CYLINDER BLOCK (1 15/16")
    SCREW, STARTER MOTOR TO CYLINDER BLOCK (1 15/16")
  • 9
    11-32219 NUT, STARTER TERMINAL (3/8")
    NUT, STARTER TERMINAL (3/8")
  • 10
    13-26995 LOCKWASHER, STARTER TERMINAL (#8)
    LOCKWASHER, STARTER TERMINAL (#8)
  • 11
    11-26419 NUT, STARTER TERMINAL (#8)
    NUT, STARTER TERMINAL (#8)
  • 12
    97258A1 WATER TEMPERATURE SENDER ASSEMBLY
    WATER TEMPERATURE SENDER ASSEMBLY
  • 13
    13-26996 LOCKWASHER, WATER TEMP. SENDER TERMINAL (#10)
    LOCKWASHER, WATER TEMP. SENDER TERMINAL (#10)
  • 14
    11-68219 NUT, WATER TEMPERATURE SENDER TERMINAL (#10)
    NUT, WATER TEMPERATURE SENDER TERMINAL (#10)
  • 15
    8M0068784 OIL PRESSURE SENDER ASSEMBLY
    OIL PRESSURE SENDER ASSEMBLY
  • 16
    13-26996 LOCKWASHER, OIL PRESSURE SENDER TERMINAL (#10)
    LOCKWASHER, OIL PRESSURE SENDER TERMINAL (#10)
  • 17
    11-68219 NUT, OIL PRESSURE SENDER TERMINAL (#10)
    NUT, OIL PRESSURE SENDER TERMINAL (#10)
  • 18
    22-46932 ELBOW, OIL PRESSURE SENDER
    ELBOW, OIL PRESSURE SENDER
  • 19
    22-885153 NIPPLE, OIL PRESSURE SENDER
    NIPPLE, OIL PRESSURE SENDER
  • 20
    78403A2 ALTERNATOR ASSEMBLY (SEE NOTE BELOW)
    ALTERNATOR ASSEMBLY (SEE NOTE BELOW)
  • 21
    10-20055 SCREW, GROUND CABLE TO ALTERNATOR
    SCREW, GROUND CABLE TO ALTERNATOR
  • 22
    13-26996 LOCKWASHER, GROUND CABLE SCREW
    LOCKWASHER, GROUND CABLE SCREW
  • 23
    12-30164 WASHER, GROUND CABLE SCREW
    WASHER, GROUND CABLE SCREW
  • 24
    13-26991 LOCKWASHER, ALTERNATOR TERMINAL
    LOCKWASHER, ALTERNATOR TERMINAL
  • 25
    11-68531 NUT, ALTERNATOR TERMINAL
    NUT, ALTERNATOR TERMINAL
  • 26
    85013T BRACE, ALTERNATOR ADJUSTING
    BRACE, ALTERNATOR ADJUSTING
  • 27
    10-29198 SCREW, ALTERNATOR BRACE TO ALTERNATOR (7/8")
    SCREW, ALTERNATOR BRACE TO ALTERNATOR (7/8")
  • 28
    12-26168 WASHER, ALTERNATOR BRACE SCREW
    WASHER, ALTERNATOR BRACE SCREW
  • 29
    10-98261 SCREW, ALTERNATOR BRACE TO CYLINDER BLOCK (3/4")
    SCREW, ALTERNATOR BRACE TO CYLINDER BLOCK (3/4")
  • 30
    13-35048 LOCKWASHER, ALTERNATOR BRACE SCREW
    LOCKWASHER, ALTERNATOR BRACE SCREW
  • 31
    12-20553 WASHER, ALTERNATOR BRACE SCREW
    WASHER, ALTERNATOR BRACE SCREW
  • 32
    48104A1 BRACKET, ALTERNATOR MOUNTING
    BRACKET, ALTERNATOR MOUNTING
  • 33
    10-76926 SCREW, ALTERNATOR BRACKET TO EXHAUST MANIFOLD (7/8")
    SCREW, ALTERNATOR BRACKET TO EXHAUST MANIFOLD (7/8")
  • 34
    13-35048 LOCKWASHER, ALTERNATOR BRACKET SCREW
    LOCKWASHER, ALTERNATOR BRACKET SCREW
  • 35
    10-48308 SCREW, ALTERNATOR TO ALTERNATOR BRACKET (3 3/4")
    SCREW, ALTERNATOR TO ALTERNATOR BRACKET (3 3/4")
  • 36
    23-33186 BUSHING ALTERNATOR TO BRACKET SCREW
    BUSHING ALTERNATOR TO BRACKET SCREW
  • 37
    12-20553 WASHER, ALTERNATOR BRACKET SCREW
    WASHER, ALTERNATOR BRACKET SCREW
  • 38
    11-23161 NUT, ALTERNATOR BRACKET SCREW
    NUT, ALTERNATOR BRACKET SCREW
