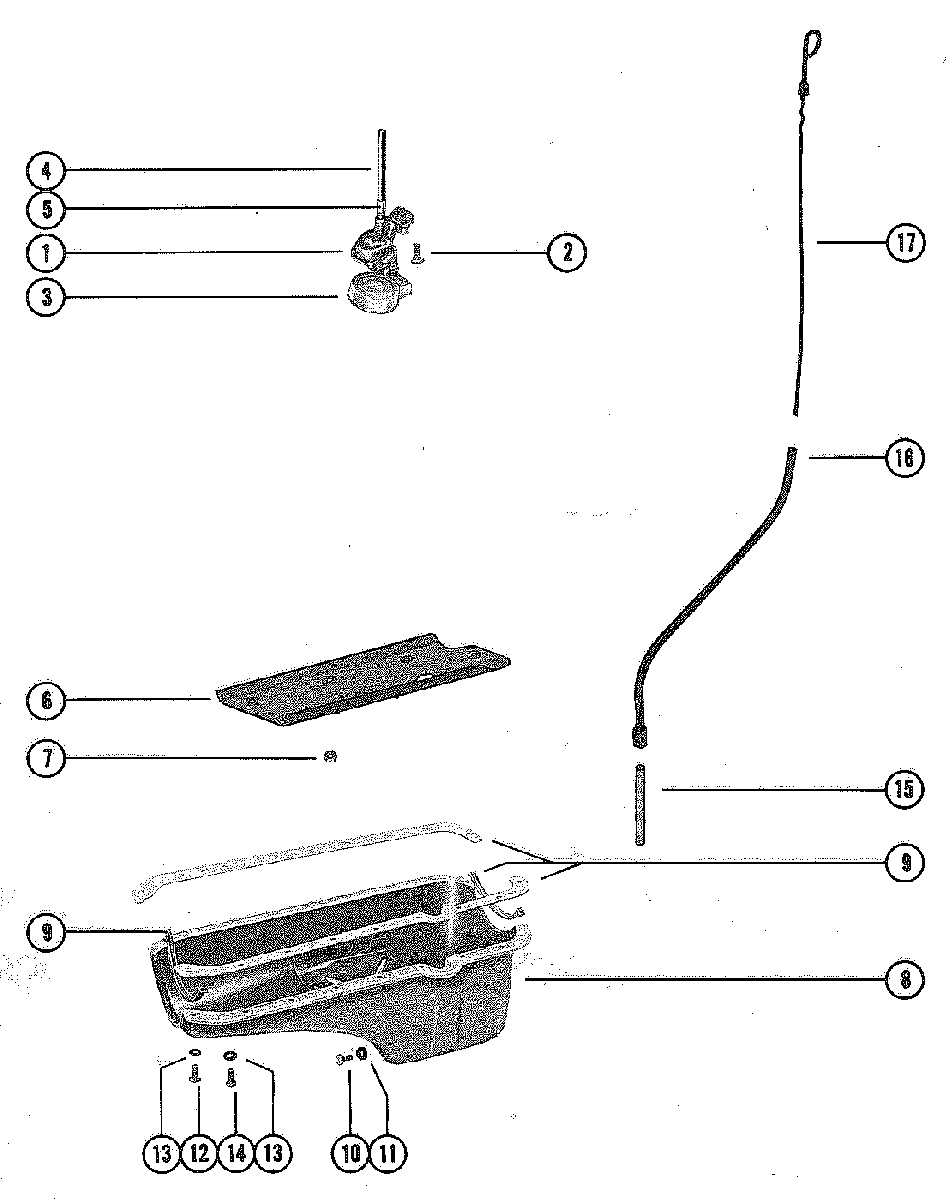

OIL PAN AND OIL PUMP для Mercruiser - 250 (2 BBL.) GM 350 V-8 1977 4768000 THRU 4908849

  • №
    Артикул
    Название
  • 1
    17617 OIL PUMP ASSEMBLY
    OIL PUMP ASSEMBLY
  • 2
    10-48333 BOLT, OIL PUMP TO CYLINDER BLOCK (2")
    BOLT, OIL PUMP TO CYLINDER BLOCK (2")
  • 3
    72645 SCREEN ASSEMBLY, OIL PUMP
    SCREEN ASSEMBLY, OIL PUMP
  • 4
    36184 SHAFT, OIL PUMP TO DISTRIBUTOR
    SHAFT, OIL PUMP TO DISTRIBUTOR
  • 5
    23-36183 RETAINER, OIL PUMP SHAFT
    RETAINER, OIL PUMP SHAFT
  • 6
    52198 BAFFLE, OIL PAN (CYLINDER BLOCK)
    BAFFLE, OIL PAN (CYLINDER BLOCK)
  • 7
    11-37500 NUT, BAFFLE TO CYLINDER BLOCK STUD
    NUT, BAFFLE TO CYLINDER BLOCK STUD
  • 8
    72643 OIL PAN
    OIL PAN
  • 9
    27-85817A1 GASKET SET, OIL PAN
    GASKET SET, OIL PAN
  • 10
    10-49956 SCREW, OIL PAN DRAIN
    SCREW, OIL PAN DRAIN
  • 11
    27-8M0077608 GASKET, OIL PAN DRAIN SCREW
    GASKET, OIL PAN DRAIN SCREW
  • 12
    10-72644 SCREW, OIL PAN TO CYL. BLOCK (5/16 - 18 X 7/8")
    SCREW, OIL PAN TO CYL. BLOCK (5/16 - 18 X 7/8")
  • 13
    13-39107 WASHER, OIL PAN SCREW
    WASHER, OIL PAN SCREW
  • 14
    10-8M0040582 SCREW, OIL PAN TO CYL. BLOCK (1/4 - 20 - 7/8")
    SCREW, OIL PAN TO CYL. BLOCK (1/4 - 20 - 7/8")
  • 15
    72950 TUBE, OIL LEVER (LOWER)
    TUBE, OIL LEVER (LOWER)
  • 16
    32-72539 TUBE, OIL LEVEL GAUGE (UPPER)
    TUBE, OIL LEVEL GAUGE (UPPER)
  • 17
    72938 GAUGE, OIL LEVEL (DIPSTICK)
    GAUGE, OIL LEVEL (DIPSTICK)
