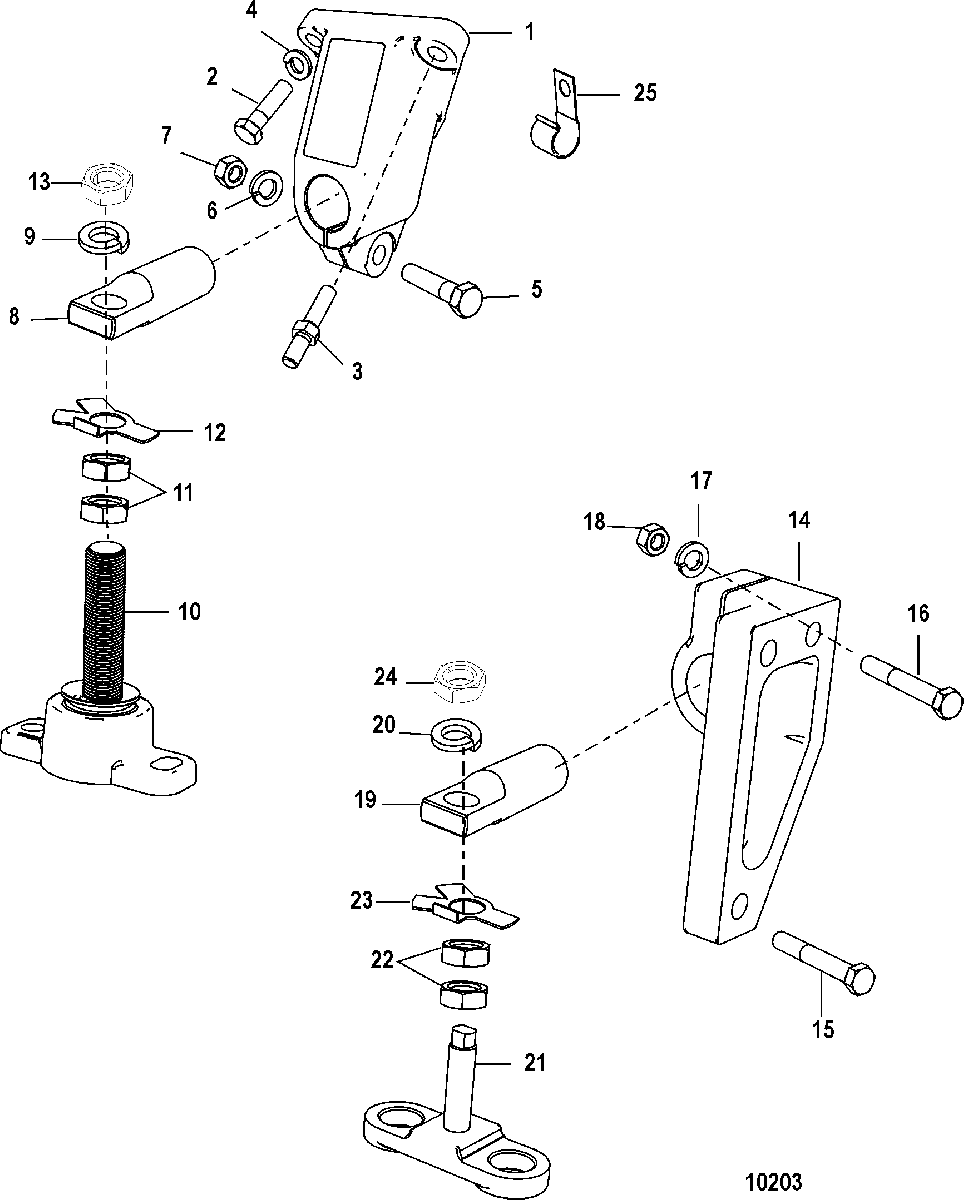

Transmission and Engine Mounting(BORG-WARNER 5000) для Mercruiser - 6.2L MPI HORIZON MIE 1A090000 THRU 1A092168

  • №
    Артикул
    Название
  • 1
    71128A2 BRACKET, Front
    BRACKET, Front
  • 2
    10-68101 SCREW, (.375-16 x 1.375)
    SCREW, (.375-16 x 1.375)
  • 3
    16-8M2004610 STUD, (.375-16 x 2.130)
    STUD, (.375-16 x 2.130)
  • 4
    13-35048 LOCKWASHER, (.375)
    LOCKWASHER, (.375)
  • 5
    10-37269 SCREW, (.437-14 x 2.00)
    SCREW, (.437-14 x 2.00)
  • 6
    13-32993 LOCKWASHER, (.437)
    LOCKWASHER, (.437)
  • 7
    11-82670814 NUT, (.437-14)
    NUT, (.437-14)
  • 8
    66166A4 TRUNNION
    TRUNNION
  • 9
    13-68102 LOCKWASHER, (.750)
    LOCKWASHER, (.750)
  • 10
    66284A2 BASE ASSEMBLY, Engine End
    BASE ASSEMBLY, Engine End
  • 11
    11-20739 NUT, (.750-16), Jam
    NUT, (.750-16), Jam
  • 12
    14-66658 TAB WASHER, Tab
    TAB WASHER, Tab
  • 13
    11-20739 NUT, (.750-16), Jam
    NUT, (.750-16), Jam
  • 14
    807725T BRACKET
    Port, Down Angle Transmission
    BRACKET
    Port, Down Angle Transmission
  • 14
    807724T BRACKET
    Port, V-Drive Transmission
    BRACKET
    Port, V-Drive Transmission
  • 14
    807724T BRACKET
    Starboard, Down Angle Transmission
    BRACKET
    Starboard, Down Angle Transmission
  • 14
    807725T BRACKET
    Starboard, V-Drive Transmission
    BRACKET
    Starboard, V-Drive Transmission
  • 15
    10-4009760 SCREW, (M12 x 60)
    SCREW, (M12 x 60)
  • 16
    10-47724 SCREW, (.437-14 x 3.00)
    Down Angle Transmission
    SCREW, (.437-14 x 3.00)
    Down Angle Transmission
  • 16
    10-47724 SCREW, (.437-14 x 3.00)
    V-Drive Transmission
    SCREW, (.437-14 x 3.00)
    V-Drive Transmission
  • 17
    13-32993 LOCKWASHER, (.437)
    LOCKWASHER, (.437)
  • 18
    11-82670814 NUT, (.437-14)
    NUT, (.437-14)
  • 19
    66166A4 TRUNNION
    TRUNNION
  • 20
    13-68102 LOCKWASHER, (.750)
    LOCKWASHER, (.750)
  • 21
    816326A2 BASE ASSEMBLY, Transmission End
    BASE ASSEMBLY, Transmission End
  • 22
    11-816331 NUT, (.750-16), Jam
    NUT, (.750-16), Jam
  • 23
    14-66658 TAB WASHER
    TAB WASHER
  • 24
    11-20739 NUT, (.750-16), Jam
    NUT, (.750-16), Jam
  • 25
    54-78945 J CLAMP, Harness Support
    J CLAMP, Harness Support
