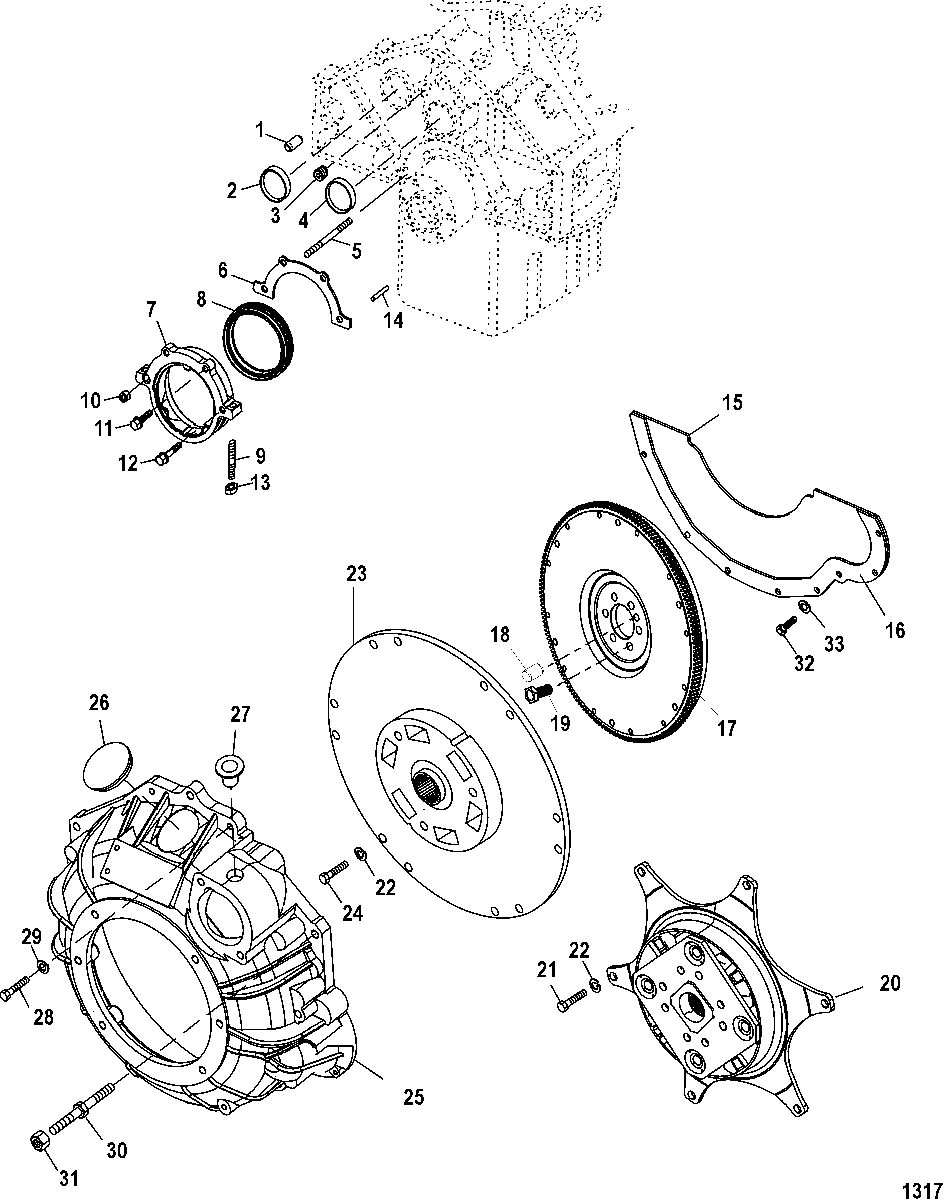

Cylinder Block, Flywheel Housing для Mercruiser - 6.2L MPI HORIZON MIE 1A090000 THRU 1A092168

  • №
    Артикул
    Название
  • 1
    17-8M0092110 PIN, Dowel (.6206/.6211 x 1.20), Flywheel Housing Location
    PIN, Dowel (.6206/.6211 x 1.20), Flywheel Housing Location
  • 2
    19-34270 EXPANSION PLUG, (1.625), Engine Core Hole
    EXPANSION PLUG, (1.625), Engine Core Hole
  • 3
    22-32561 PLUG, (.250-18 x .41), Oil Galley
    PLUG, (.250-18 x .41), Oil Galley
  • 4
    22-72640 PLUG, Camshaft Bearing Hole
    PLUG, Camshaft Bearing Hole
  • 5
    16-14827 STUD, (.250-20 x 2.180)
    STUD, (.250-20 x 2.180)
  • 6
    27-881715 GASKET, Crankshaft Oil Seal Housing
    GASKET, Crankshaft Oil Seal Housing
  • 7
    852940 HOUSING ASSEMBLY, With Studs, Crankshaft Oil Seal
    HOUSING ASSEMBLY, With Studs, Crankshaft Oil Seal
  • 8
    26-852941 SEAL, Crankshaft Oil
    SEAL, Crankshaft Oil
  • 9
    16-11989 STUD, (.312-18 x 1.6718)
    STUD, (.312-18 x 1.6718)
  • 10
    11-8M0098315 NUT
    NUT
  • 11
    10-14242 BOLT, (.250-20 x .875)
    BOLT, (.250-20 x .875)
  • 12
    10-8M0064241 BOLT, (.250-20 x 1.750)
    BOLT, (.250-20 x 1.750)
  • 13
    11-11971 NUT, (.312-18)
    NUT, (.312-18)
  • 14
    17-14263 PIN, Dowel, Oil Seal Housing
    PIN, Dowel, Oil Seal Housing
  • 15
    818718A4 COVER ASSEMBLY
    COVER ASSEMBLY
  • 16
    27-86015 GASKET
    GASKET
  • 17
    200-8M0083286 FLYWHEEL
    FLYWHEEL
  • 18
    17-43504 PIN, Dowel, Flywheel
    PIN, Dowel, Flywheel
  • 19
    10-845757 SCREW, (.437-20 x 1.00)
    SCREW, (.437-20 x 1.00)
  • 20
    862975A1 DRIVEPLATE ASSEMBLY
    (B/W 5000 / Hurth 630 Transmissions)
    DRIVEPLATE ASSEMBLY
    (B/W 5000 / Hurth 630 Transmissions)
  • 21
    10-863480 SCREW, (.375-16 x 1.125)
    (B/W 5000 / Hurth 630 Transmissions)
    SCREW, (.375-16 x 1.125)
    (B/W 5000 / Hurth 630 Transmissions)
  • 22
    13-35048 LOCKWASHER, (.375)
    LOCKWASHER, (.375)
  • 23
    860125T DRIVEPLATE ASSEMBLY
    (B/W -71C/72C)
    DRIVEPLATE ASSEMBLY
    (B/W -71C/72C)
  • 24
    10-863480 SCREW, (.375-16 x 1.125)
    (B/W -71C/72C)
    SCREW, (.375-16 x 1.125)
    (B/W -71C/72C)
  • 25
    814309A1 HOUSING ASSEMBLY
    HOUSING ASSEMBLY
  • 26
    19-12304 PLUG, Timing Window
    PLUG, Timing Window
  • 27
    19-38606 CAPLUG, (#10)
    CAPLUG, (#10)
  • 28
    10-47277 SCREW, (.312-24 x .750)
    SCREW, (.312-24 x .750)
  • 28
    10-34353 SCREW, (.375-16 x 1.00)
    SCREW, (.375-16 x 1.00)
  • 28
    10-37612 SCREW, (.375-16 x 1.250)
    SCREW, (.375-16 x 1.250)
  • 29
    13-400247 LOCKWASHER, (M8)
    LOCKWASHER, (M8)
  • 30
    16-861316 STUD
    STUD
  • 31
    11-82671112 NUT, (.375-16)
    NUT, (.375-16)
  • 32
    10-98253 SCREW, (.250-20 x .500)
    SCREW, (.250-20 x .500)
  • 33
    13-26992 LOCKWASHER, (.250) Stainless Steel
    LOCKWASHER, (.250) Stainless Steel
