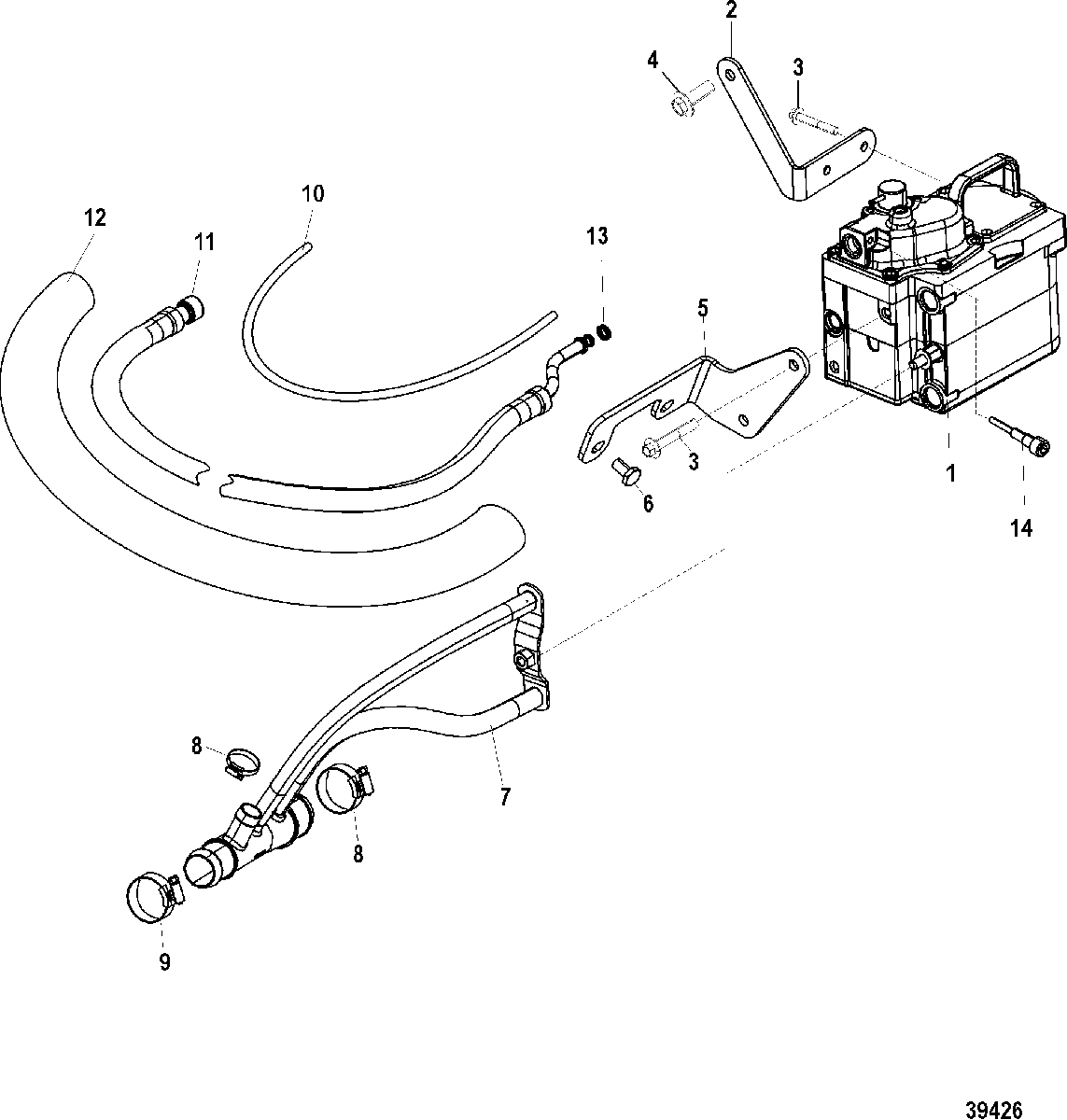

Cool Fuel System -Bravo(SN 1A091622 & Below) для Mercruiser - 6.2L MPI HORIZON MIE 1A090000 THRU 1A092168

№

Артикул

Название
1

864650A05 MODULE KIT, Fuel Pump

MODULE KIT, Fuel Pump

112 600 ₽
2

864459 BRACKET

BRACKET

1 530 ₽
3

10-4010720 SCREW, (M8 x 20)

SCREW, (M8 x 20)

260 ₽
4

10-4010820 SCREW, (M10 x 20) Hex Flange - Stainless Steel

SCREW, (M10 x 20) Hex Flange - Stainless Steel

370 ₽
5

864458 BRACKET

BRACKET

2 340 ₽
6

10-40001195 SCREW, (M10 x 30)

SCREW, (M10 x 30)

400 ₽
7

22-865208T01 HOSE ASSEMBLY, 3 Bib Orfice Meter
(Refer to Bulletin MCM 2009-01)

HOSE ASSEMBLY, 3 Bib Orfice Meter
(Refer to Bulletin MCM 2009-01)

10 460 ₽
7

22-865317T01 FITTING/HOSE ASSEMBLY, 2 Bib Orifice Meter
(Refer to Bulletin MCM 2009-01)

FITTING/HOSE ASSEMBLY, 2 Bib Orifice Meter
(Refer to Bulletin MCM 2009-01)

6 180 ₽
8

54-815504212 CLAMP, Worm Gear

CLAMP, Worm Gear

480 ₽
9

54-815504224 CLAMP, (32 - 50 mm)

CLAMP, (32 - 50 mm)

440 ₽
10

32-8M0063567 HOSE, (58.00 Inches Bulk)

HOSE, (58.00 Inches Bulk)

3 250 ₽
11

32-865257A03 HOSE, Fuel Module to Fuel Rail
5.7/6.2L SN# 1A091517 & Below

HOSE, Fuel Module to Fuel Rail
5.7/6.2L SN# 1A091517 & Below

18 760 ₽
11

32-8M2005177 LINE, Fuel Module to Fuel Rail
SN# 1A091518 & Up

LINE, Fuel Module to Fuel Rail
SN# 1A091518 & Up

17 230 ₽
12

NSS NOT SOLD SEPARATE, Insulator Sleeve

NOT SOLD SEPARATE, Insulator Sleeve

0 ₽
13

26-863151 SEAL, Quad Ring

SEAL, Quad Ring

180 ₽
14

10-866114 SCREW, (.250-28) Special

SCREW, (.250-28) Special

520 ₽
