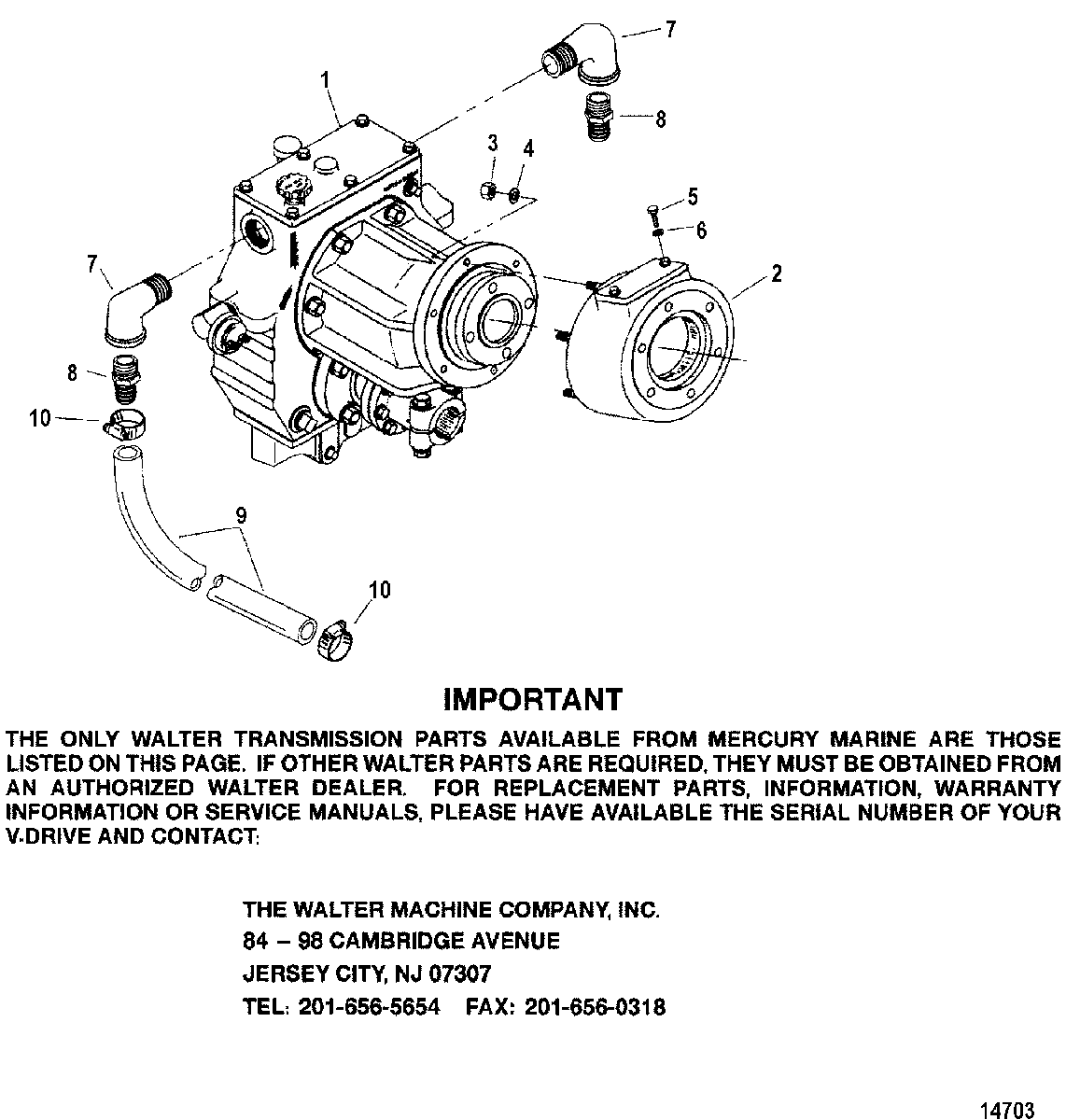

TRANSMISSION(WALTER V-DRIVE) для Mercruiser - 5.7L COMPETITION SKI GM 350 V-8 1997 0K040004 THRU 0K999999

  • №
    Артикул
    Название
  • 1
    860361A6 TRANSMISSION (1.00:1)
    TRANSMISSION (1.00:1)
  • 1
    860362A2 TRANSMISSION (1.46:1)
    TRANSMISSION (1.46:1)
  • 2
    860308A3 HOUSING ASSEMBLY
    HOUSING ASSEMBLY
  • 3
    11-86226 NUT, (.375-16)
    NUT, (.375-16)
  • 4
    13-35048 LOCKWASHER, (.375)
    LOCKWASHER, (.375)
  • 5
    10-28636 SCREW, (.250-20 x .750)
    SCREW, (.250-20 x .750)
  • 6
    13-26992 LOCKWASHER, (.250) Stainless Steel
    LOCKWASHER, (.250) Stainless Steel
  • 7
    22-860378 ELBOW (90 DEGREE)
    ELBOW (90 DEGREE)
  • 8
    22-860379 FITTING
    FITTING
  • 9
    32-8M0062666 HOSE, (96.00 Inches Bulk) (TO SEA WATER PUMP)
    (CUT TO 44 IN.)
    HOSE, (96.00 Inches Bulk) (TO SEA WATER PUMP)
    (CUT TO 44 IN.)
  • 10
    54-815504222 CLAMP, Worm Gear (1.98 DIameter)
    CLAMP, Worm Gear (1.98 DIameter)
