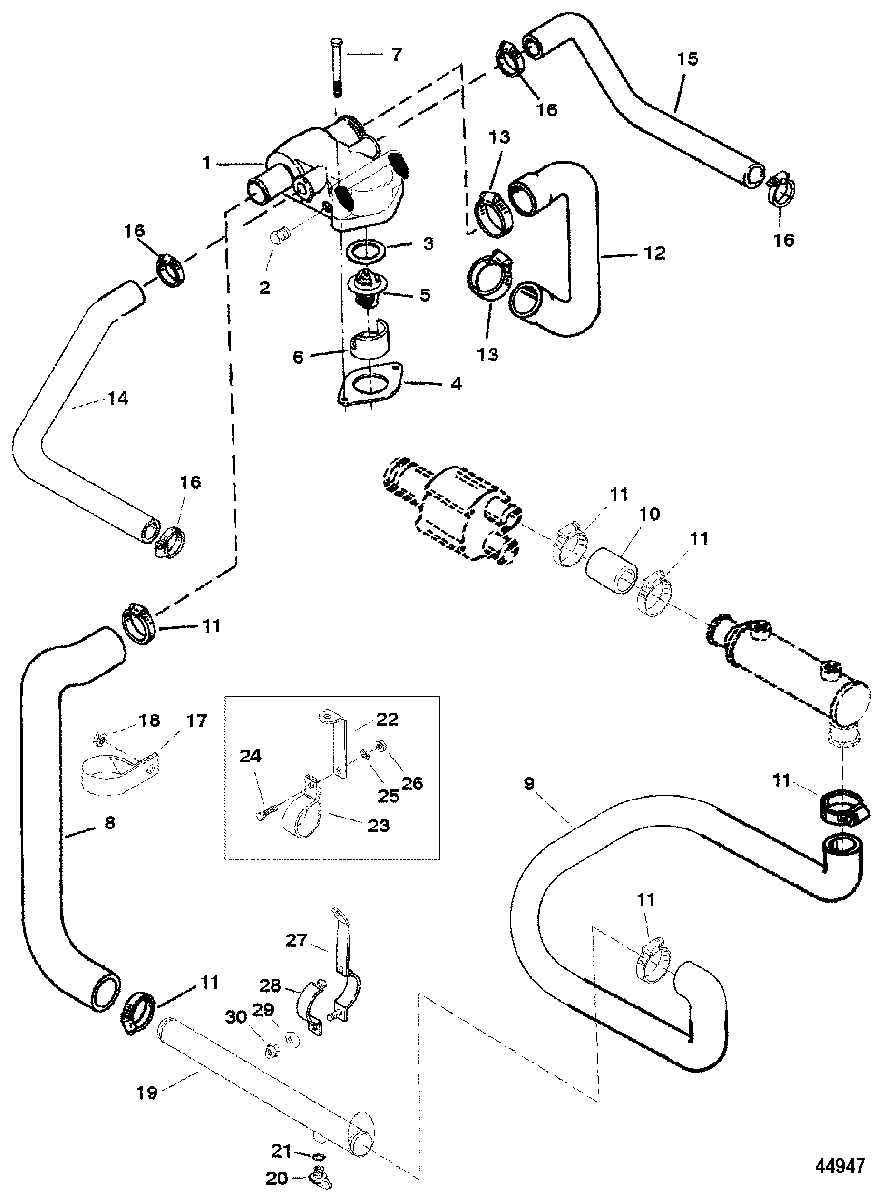

STANDARD COOLING SYSTEM для Mercruiser - 5.7L COMPETITION SKI GM 350 V-8 1997 0K040004 THRU 0K999999

  • №
    Артикул
    Название
  • 1
    860256A4 HOUSING ASSEMBLY, Thermostat
    HOUSING ASSEMBLY, Thermostat
  • 2
    22-32803 PLUG, Pipe (.375-18) Brass
    PLUG, Pipe (.375-18) Brass
  • 3
    27-806871 GASKET, Thermostat
    GASKET, Thermostat
  • 4
    27-530451 GASKET
    GASKET
  • 5
    8M0109441 THERMOSTAT, 71A°C (160A°F)
    THERMOSTAT, 71A°C (160A°F)
  • 6
    23-806922 SLEEVE
    SLEEVE
  • 7
    10-8M0113179 SCREW, (.375-16 x 3.00)
    SCREW, (.375-16 x 3.00)
  • 8
    32-808033 HOSE, Molded, Thermostat Housing to Hose Extender
    HOSE, Molded, Thermostat Housing to Hose Extender
  • 9
    32-808032 HOSE, Molded, Hose Extender to Transmissin Oil Cooler
    HOSE, Molded, Hose Extender to Transmissin Oil Cooler
  • 10
    32-866331 HOSE, (4.00 Inches), Transmissino Oil Cooler to Sea Water Pump
    HOSE, (4.00 Inches), Transmissino Oil Cooler to Sea Water Pump
  • 11
    54-815504222 CLAMP, Worm Gear (1.98 DIameter)
    CLAMP, Worm Gear (1.98 DIameter)
  • 12
    32-861590A05 HOSE, Molded, Thermostat Housing to Water Pump
    HOSE, Molded, Thermostat Housing to Water Pump
  • 13
    54-815504232 CLAMP, Worm Gear (2.50 Diameter)
    CLAMP, Worm Gear (2.50 Diameter)
  • 14
    32-8066351 HOSE, Thermostat Housing to Port Manifold
    HOSE, Thermostat Housing to Port Manifold
  • 15
    32-807697 HOSE, Thermostat Housing to Starboard Manifold
    HOSE, Thermostat Housing to Starboard Manifold
  • 16
    54-815504220 CLAMP, Worm Gear
    CLAMP, Worm Gear
  • 17
    54-47715 CLIP
    CLIP
  • 18
    11-29250 NUT, (.312-24)
    NUT, (.312-24)
  • 19
    860315A1 TUBE, Hose Extender
    TUBE, Hose Extender
  • 20
    22-8M0119211 PLUG KIT, (.500-13) Royal Blue
    PLUG KIT, (.500-13) Royal Blue
  • 21
    25-32509 QUAD RING
    QUAD RING
  • 22
    48134 BRACKET
    DESIGN I
    BRACKET
    DESIGN I
  • 23
    54-97862 CLAMP
    DESIGN I
    CLAMP
    DESIGN I
  • 24
    10-54630 SCREW, (.312-24 x .625)
    DESIGN I
    SCREW, (.312-24 x .625)
    DESIGN I
  • 25
    13-39107 LOCKWASHER, (.312-24)
    DESIGN I
    LOCKWASHER, (.312-24)
    DESIGN I
  • 26
    11-22053 NUT, (.312-24)
    DESIGN I
    NUT, (.312-24)
    DESIGN I
  • 27
    860418T BRACKET
    DESIGN II
    BRACKET
    DESIGN II
  • 28
    860417T CLAMP
    DESIGN II
    CLAMP
    DESIGN II
  • 29
    12-35462 WASHER, (.2656 x .625 x .0625) Stainless Steel
    DESIGN II
    WASHER, (.2656 x .625 x .0625) Stainless Steel
    DESIGN II
  • 30
    11-8267088 NUT, (.250-20)
    DESIGN II
    NUT, (.250-20)
    DESIGN II
  • -
    27-806871A96 GASKET SET, Overhaul
    GASKET SET, Overhaul
