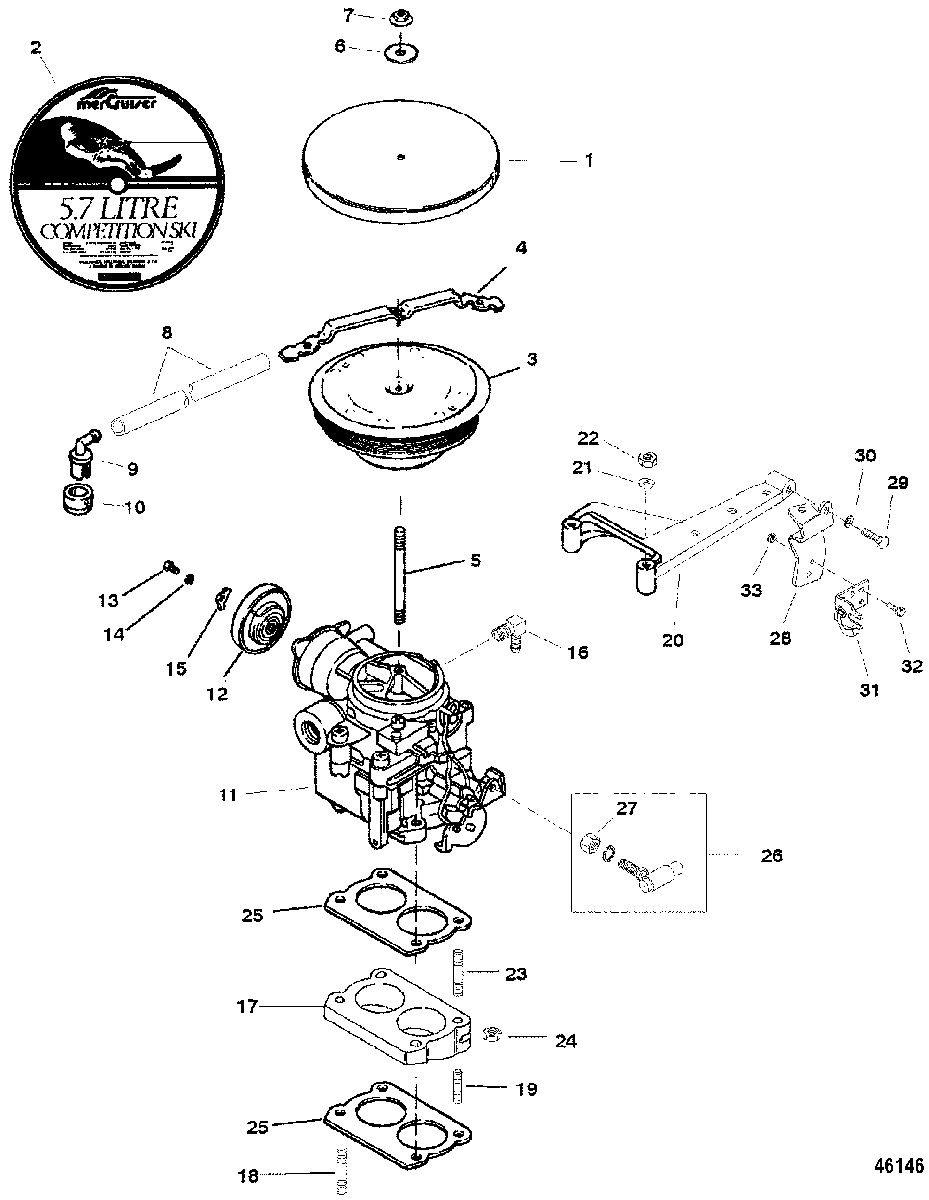

CARBURETOR/THROTTLE LINKAGE(2 BARREL) для Mercruiser - 5.7L COMPETITION SKI GM 350 V-8 1997 0K040004 THRU 0K999999

  • №
    Артикул
    Название
  • 1
    14605T1 COVER, Carburetor
    COVER, Carburetor
  • 2
    37-81893949 DECAL
    DECAL
  • 3
    805016A1 FLAME ARRESTOR
    FLAME ARRESTOR
  • 4
    805313 RETAINER, Breather Hose
    RETAINER, Breather Hose
  • 5
    16-8M0113181 STUD, (.250-20/.250-28 x Special)
    STUD, (.250-20/.250-28 x Special)
  • 6
    12-20533 WASHER
    WASHER
  • 7
    11-826709109 NUT, (.250-28)
    NUT, (.250-28)
  • 8
    32-8M0062669 HOSE, Breather
    HOSE, Breather
  • 9
    97850T ELBOW, 90 Degree, Breather
    ELBOW, 90 Degree, Breather
  • 10
    23-8M0071559 GROMMET
    GROMMET
  • 11
    3310-807312A1 CARBURETOR ASSEMBLY
    (SEE "CARBURETOR (MERCARB -2 BARREL)" FOR BREAKDOWN)
    CARBURETOR ASSEMBLY
    (SEE "CARBURETOR (MERCARB -2 BARREL)" FOR BREAKDOWN)
  • 12
    70125A02 COVER, Choke
    COVER, Choke
  • 13
    10-33047 SCREW
    SCREW
  • 14
    13-26995 LOCKWASHER, (#8) Stainless Steel
    LOCKWASHER, (#8) Stainless Steel
  • 15
    54-33036 RETAINER
    RETAINER
  • 16
    22-54090 ELBOW (90 DEG.)
    ELBOW (90 DEG.)
  • 17
    807265A1 WEDGE (INCLUDES GASKETS)
    WEDGE (INCLUDES GASKETS)
  • 18
    16-70237 STUD, (.312-18/.312-24 x 2.620)
    STUD, (.312-18/.312-24 x 2.620)
  • 19
    16-63332 STUD, (.312 x 1.2812)
    STUD, (.312 x 1.2812)
  • 20
    805489T BRACKET
    BRACKET
  • 21
    12-20084 WASHER, (.328 x .562 x .062)
    WASHER, (.328 x .562 x .062)
  • 22
    11-862902 NUT, (.9375-24)
    NUT, (.9375-24)
  • 23
    16-807975 STUD, (.312 x 2.370)
    STUD, (.312 x 2.370)
  • 24
    11-862902 NUT, (.9375-24)
    NUT, (.9375-24)
  • 25
    27-8079821 GASKET
    GASKET
  • 26
    807484 BALL JOINT ASSEMBLY, Quick Release
    BALL JOINT ASSEMBLY, Quick Release
  • 27
    11-8267089 NUT, (.250-28)
    NUT, (.250-28)
  • 28
    807494T BRACKET, Throttle Bracket Attaching
    BRACKET, Throttle Bracket Attaching
  • 29
    10-36137 SCREW, (.250-28 x 1.00)
    SCREW, (.250-28 x 1.00)
  • 30
    13-26992 LOCKWASHER, (.250) Stainless Steel
    LOCKWASHER, (.250) Stainless Steel
  • 31
    807485T BRACKET ASSEMBLY, Throttle
    BRACKET ASSEMBLY, Throttle
  • 32
    10-89766 SCREW, (#10-32 x .620) Stainless Steel
    SCREW, (#10-32 x .620) Stainless Steel
  • 33
    11-826709106 NUT, (#10-32)
    NUT, (#10-32)
  • -
    27-806871A96 GASKET SET, Overhaul
    CONTENTS INDICATED BY FOOTNOTE 16.
    GASKET SET, Overhaul
    CONTENTS INDICATED BY FOOTNOTE 16.
