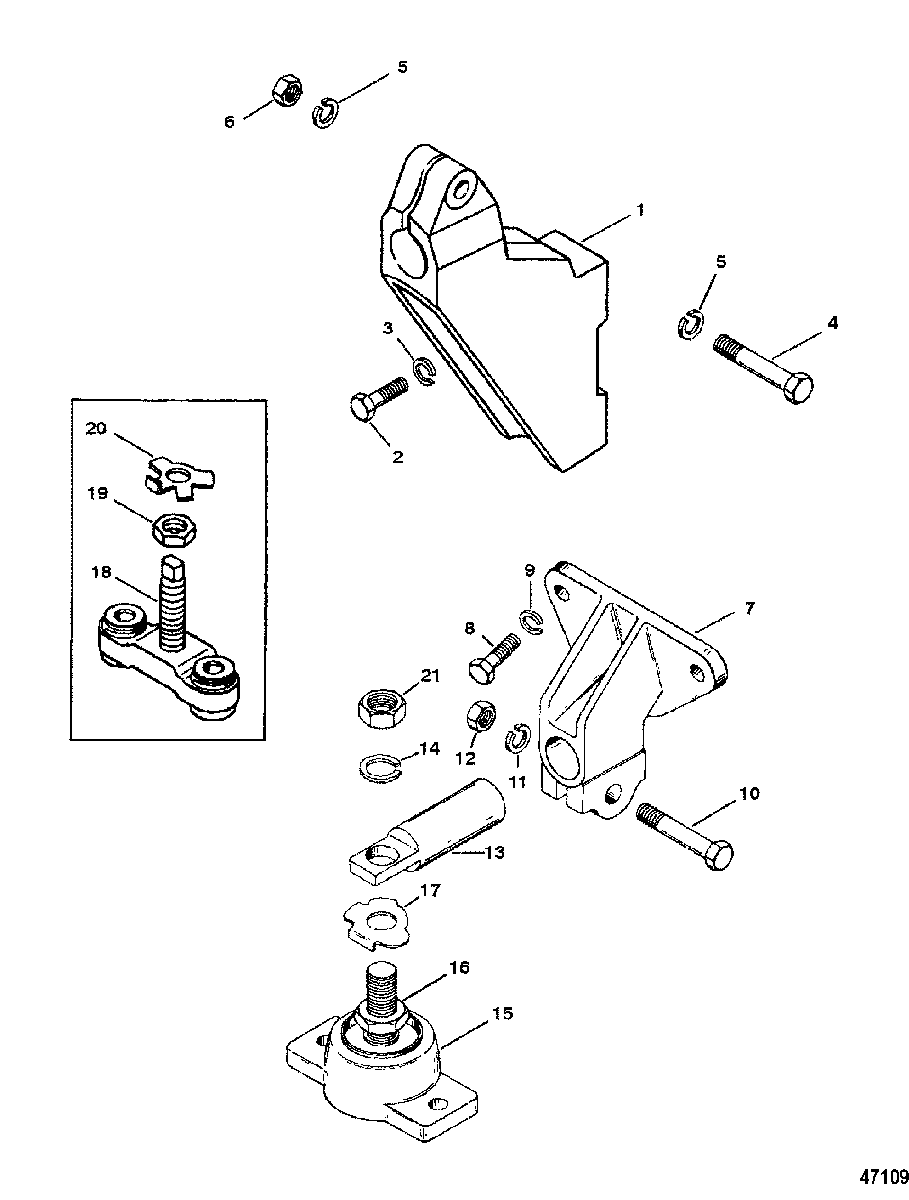

TRANSMISSION AND ENGINE MOUNTING для Mercruiser - 5.7L COMPETITION SKI GM 350 V-8 1996 0F775200 THRU 0K040003

  • №
    Артикул
    Название
  • 1
    805597A1 BRACKET
    (REAR)
    BRACKET
    (REAR)
  • 2
    10-37269 SCREW, (.437-14 x 2.00) (2 IN.)
    SCREW, (.437-14 x 2.00) (2 IN.)
  • 3
    13-32993 LOCKWASHER, (.437)
    LOCKWASHER, (.437)
  • 4
    10-57357 SCREW, (.437-13 x 2.250) (2-1/4 IN.)
    SCREW, (.437-13 x 2.250) (2-1/4 IN.)
  • 5
    13-32993 LOCKWASHER, (.437)
    LOCKWASHER, (.437)
  • 6
    11-82670814 NUT, (.437-14)
    NUT, (.437-14)
  • 7
    71128A2 BRACKET
    (FRONT)
    BRACKET
    (FRONT)
  • 8
    10-68101 SCREW, (.375-16 x 1.375) (1-3/8 IN.)
    SCREW, (.375-16 x 1.375) (1-3/8 IN.)
  • 9
    13-35048 LOCKWASHER, (.375)
    LOCKWASHER, (.375)
  • 10
    10-57357 SCREW, (.437-13 x 2.250)
    SCREW, (.437-13 x 2.250)
  • 11
    13-32993 LOCKWASHER, (.437)
    LOCKWASHER, (.437)
  • 12
    11-82670814 NUT, (.437-14)
    NUT, (.437-14)
  • 13
    66166A4 TRUNNION
    TRUNNION
  • 14
    13-68102 LOCKWASHER, (.750)
    LOCKWASHER, (.750)
  • 15
    66284A2 BASE ASSEMBLY
    ENGINE
    BASE ASSEMBLY
    ENGINE
  • 16
    11-20739 NUT, (.750-16)
    ENGINE
    NUT, (.750-16)
    ENGINE
  • 17
    14-66658 TAB WASHER
    ENGINE
    TAB WASHER
    ENGINE
  • 18
    816326A2 BASE ASSEMBLY
    TRANSMISSION
    BASE ASSEMBLY
    TRANSMISSION
  • 19
    11-816331 NUT, (.750-16)
    TRANSMISSION
    NUT, (.750-16)
    TRANSMISSION
  • 20
    14-66658 TAB WASHER
    TRANSMISSION
    TAB WASHER
    TRANSMISSION
  • 21
    11-20739 NUT, (.750-16)
    NUT, (.750-16)
