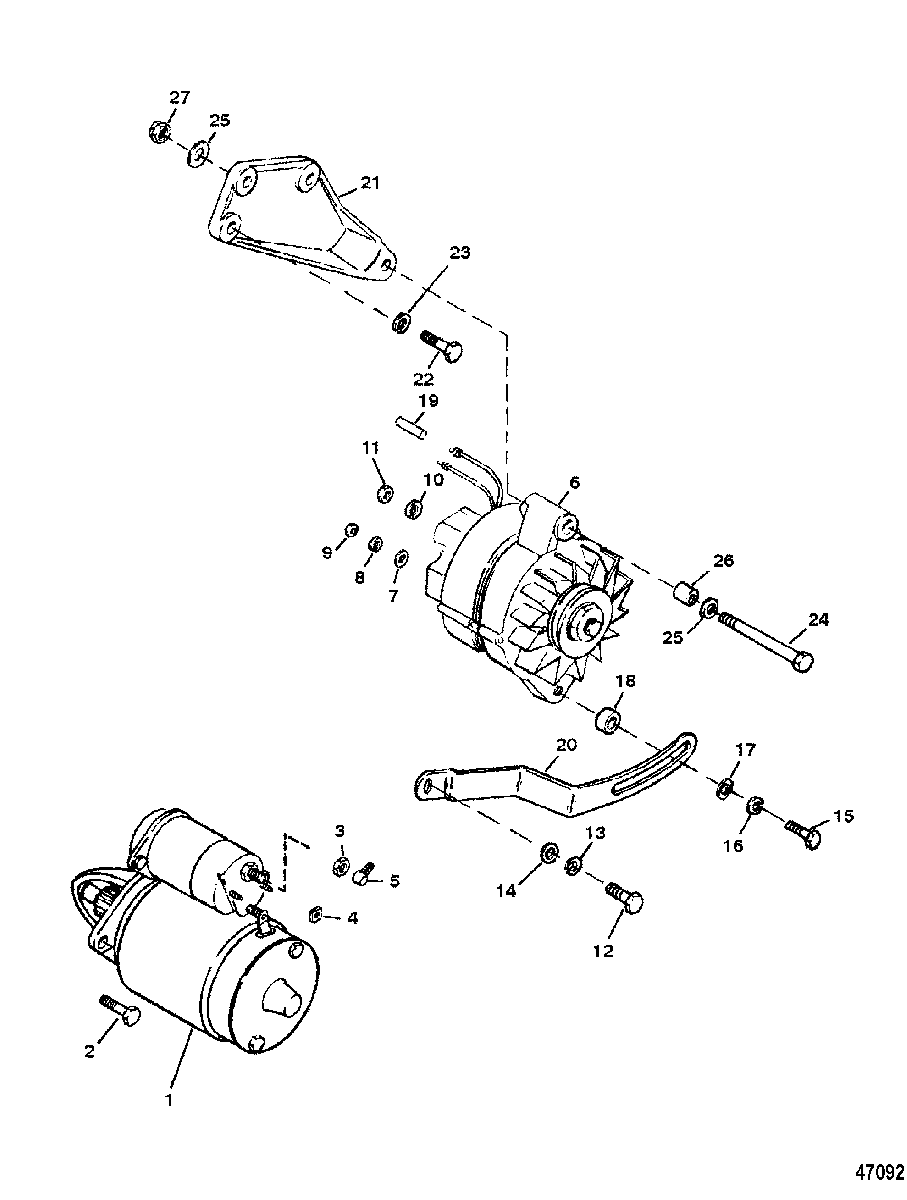

STARTER AND ALTERNATOR для Mercruiser - 5.7L COMPETITION SKI GM 350 V-8 1996 0F775200 THRU 0K040003

  • №
    Артикул
    Название
  • 1
    50-863007A1 STARTER MOTOR ASSEMBLY
    STARTER MOTOR ASSEMBLY
  • 2
    10-8053432 SCREW, (.375-16 x 4.33)
    SCREW, (.375-16 x 4.33)
  • 3
    11-806949 NUT, (M8-1.5) (8MM)
    NUT, (M8-1.5) (8MM)
  • 4
    11-400211 NUT, (M5) Stainless Steel (5MM)
    NUT, (M5) Stainless Steel (5MM)
  • 5
    85-79695T BOOT, Insulator - Black
    BOOT, Insulator - Black
  • 6
    817119A4 ALTERNATOR
    ALTERNATOR
  • 7
    12-96457 WASHER, Phenolic (.27 x .81 x .062)
    WASHER, Phenolic (.27 x .81 x .062)
  • 8
    13-26996 LOCKWASHER, (#10) Stainless Steel
    LOCKWASHER, (#10) Stainless Steel
  • 9
    11-79989 NUT, (#10-24) Stainless Steel (10-24)
    NUT, (#10-24) Stainless Steel (10-24)
  • 10
    13-26992 LOCKWASHER, (.250) Stainless Steel
    LOCKWASHER, (.250) Stainless Steel
  • 11
    11-94330 NUT, (.250-20) Brass (1/4-20)
    NUT, (.250-20) Brass (1/4-20)
  • 12
    10-26487 SCREW, (.375-16 x 1.12)
    SCREW, (.375-16 x 1.12)
  • 13
    13-35048 LOCKWASHER, (.375)
    LOCKWASHER, (.375)
  • 14
    12-34714 WASHER
    WASHER
  • 15
    10-74824 SCREW, (.312-18 x 1.250) (1-1/4 IN.)
    SCREW, (.312-18 x 1.250) (1-1/4 IN.)
  • 16
    13-39107 LOCKWASHER, (.312-24)
    LOCKWASHER, (.312-24)
  • 17
    12-26168 WASHER
    WASHER
  • 18
    23-52095 SPACER
    SPACER
  • 19
    5790811 SLEEVE, (10.00 Inches Bulk)
    SLEEVE, (10.00 Inches Bulk)
  • 20
    85013T BRACE
    BRACE
  • 21
    93175T BRACKET
    BRACKET
  • 22
    10-37612 SCREW, (.375-16 x 1.250) (1-1/4 IN.)
    SCREW, (.375-16 x 1.250) (1-1/4 IN.)
  • 23
    13-35048 LOCKWASHER, (.375)
    LOCKWASHER, (.375)
  • 24
    10-48308 SCREW, (.375-24 x 3.750) (3-3/4 IN.)
    SCREW, (.375-24 x 3.750) (3-3/4 IN.)
  • 25
    12-20553 WASHER, (.406 x .734 x .063)
    WASHER, (.406 x .734 x .063)
  • 26
    23-33186 BUSHING
    BUSHING
  • 27
    11-23161 NUT, (.375-24)
    NUT, (.375-24)
