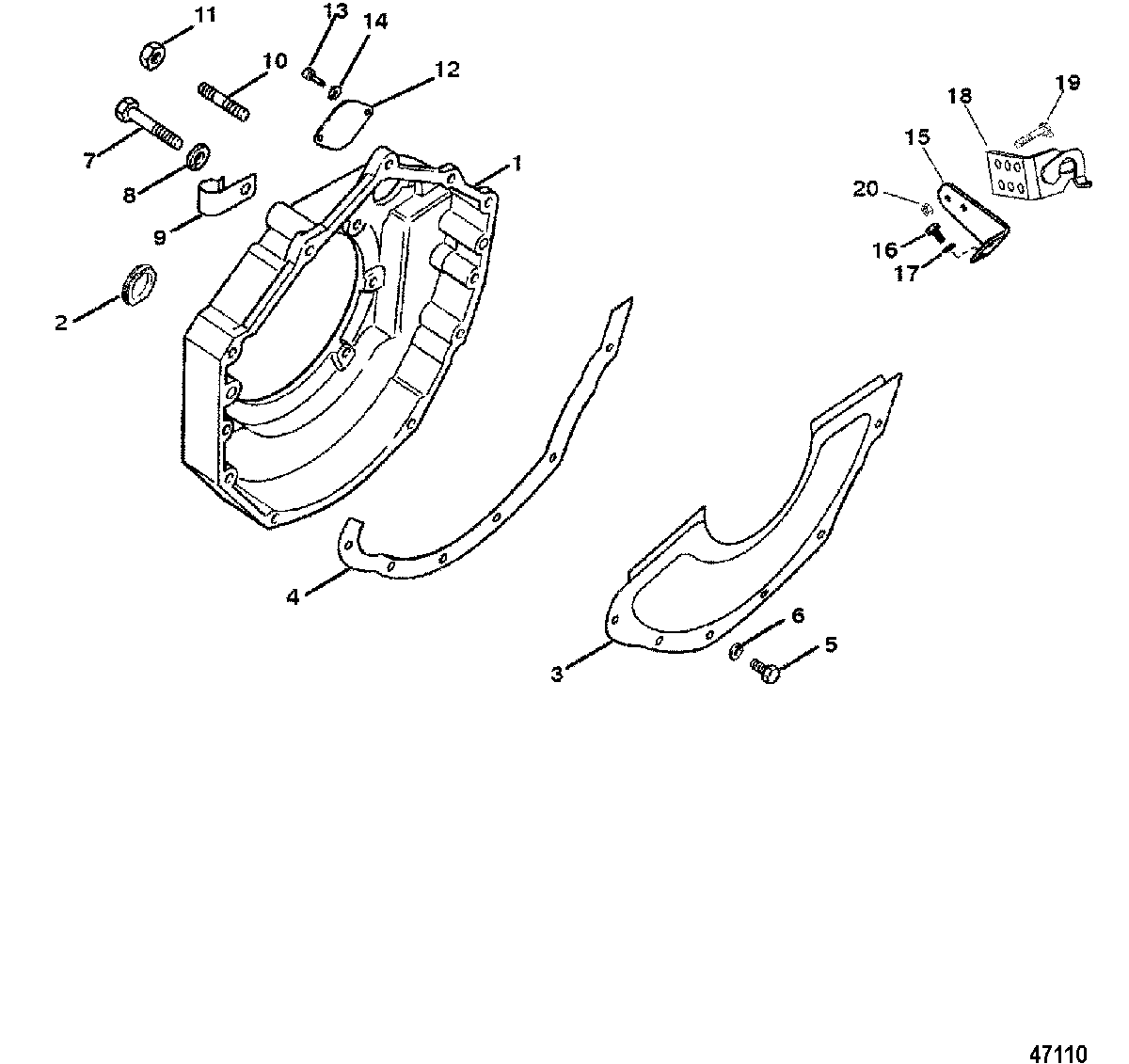

FLYWHEEL HOUSING для Mercruiser - 5.7L COMPETITION SKI GM 350 V-8 1996 0F775200 THRU 0K040003

  • №
    Артикул
    Название
  • 1
    814309A1 HOUSING ASSEMBLY
    HOUSING ASSEMBLY
  • 2
    19-12304 PLUG
    PLUG
  • 3
    818718A3 COVER KIT
    COVER KIT
  • 4
    27-86015 GASKET
    GASKET
  • 5
    10-98253 SCREW, (.250-20 x .500) (1/2 IN.)
    SCREW, (.250-20 x .500) (1/2 IN.)
  • 6
    13-26992 LOCKWASHER, (.250) Stainless Steel
    LOCKWASHER, (.250) Stainless Steel
  • 7
    10-34353 SCREW, (.375-16 x 1.00) (1 IN.)
    3/8-16 THREADS
    SCREW, (.375-16 x 1.00) (1 IN.)
    3/8-16 THREADS
  • 7
    10-47688 SCREW, (.375-16 x 2.750) (2-3/4 IN.)
    3/8-16 THREADS
    SCREW, (.375-16 x 2.750) (2-3/4 IN.)
    3/8-16 THREADS
  • 7
    10-37612 SCREW, (.375-16 x 1.250) (1-1/4 IN.)
    3/8-16 THREADS
    SCREW, (.375-16 x 1.250) (1-1/4 IN.)
    3/8-16 THREADS
  • 8
    13-35048 LOCKWASHER, (.375)
    3/8-16 THREADS
    LOCKWASHER, (.375)
    3/8-16 THREADS
  • 7
    10-47277 SCREW, (.312-24 x .750) (3/4 IN.)
    5/16-24 THREADS
    SCREW, (.312-24 x .750) (3/4 IN.)
    5/16-24 THREADS
  • 8
    13-39107 LOCKWASHER, (.312-24)
    5/16-24 THREADS
    LOCKWASHER, (.312-24)
    5/16-24 THREADS
  • 9
    54-78945 J CLAMP, Harness Support
    J CLAMP, Harness Support
  • 10
    16-861316 STUD, (.375-16 x 2.750) Special
    STUD, (.375-16 x 2.750) Special
  • 11
    11-32219 NUT, (.375-16)
    NUT, (.375-16)
  • 12
    939201 PLATE
    PLATE
  • 13
    10-92913 SCREW, (.437-14 x .750)
    SCREW, (.437-14 x .750)
  • 14
    13-32993 LOCKWASHER, (.437)
    LOCKWASHER, (.437)
  • 15
    807719T BRACKET ASSEMBLY
    BRACKET ASSEMBLY
  • 16
    10-54615 SCREW, (.250-20 x .625)
    SCREW, (.250-20 x .625)
  • 17
    13-26992 LOCKWASHER, (.250) Stainless Steel
    LOCKWASHER, (.250) Stainless Steel
  • 18
    807485T BRACKET ASSEMBLY
    BRACKET ASSEMBLY
  • 19
    10-89766 SCREW, (#10-32 x .620) Stainless Steel
    SCREW, (#10-32 x .620) Stainless Steel
  • 20
    11-826709106 NUT, (#10-32)
    NUT, (#10-32)
