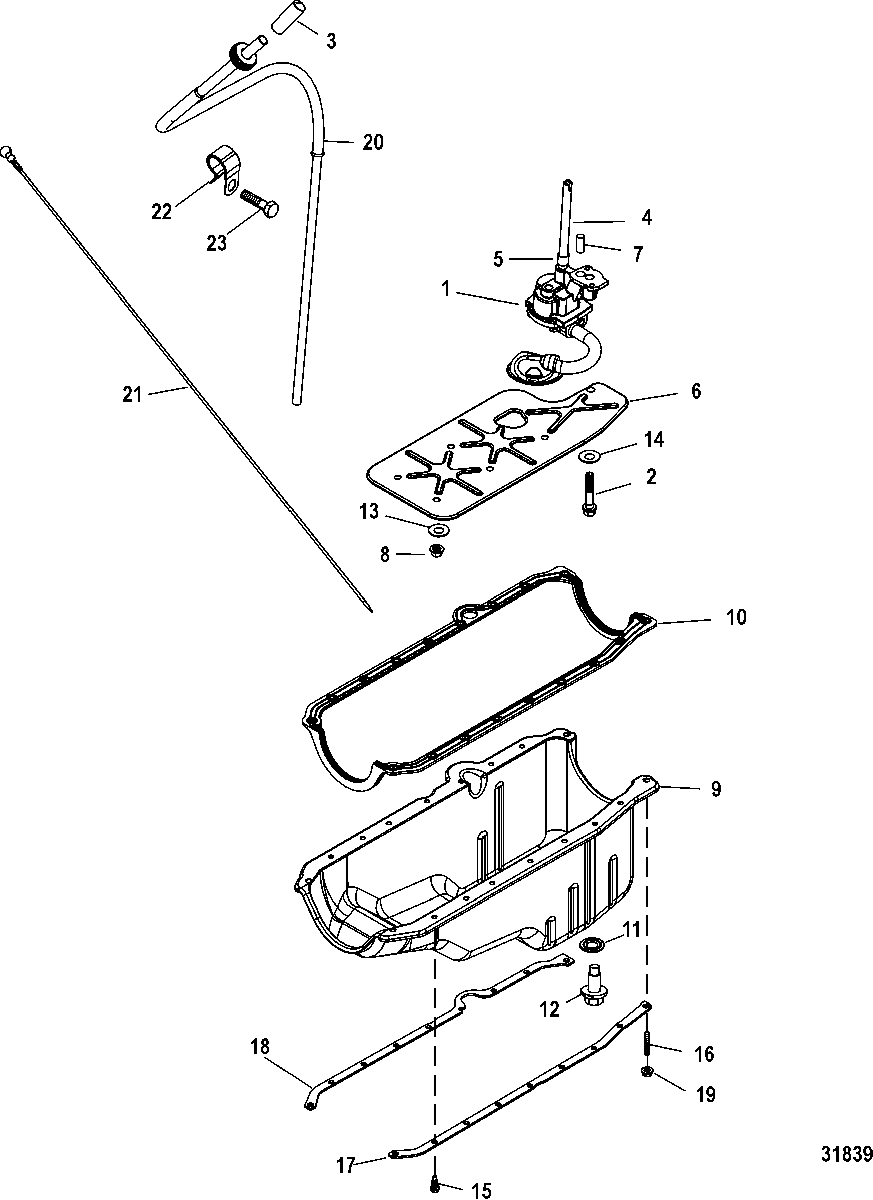

Oil Pan And Oil Pump для Mercruiser - 357 STROKER SCORPION 1G481121 & Up

  • №
    Артикул
    Название
  • 1
    809907T03 PUMP/SCREEN ASSEMBLY, Oil
    PUMP/SCREEN ASSEMBLY, Oil
  • 2
    10-17346 SCREW, Oil Pump
    SCREW, Oil Pump
  • 3
    861982 CAP
    CAP
  • 4
    879194352 SHAFT
    SHAFT
  • 5
    23-36183 RETAINER
    RETAINER
  • 6
    NSS NOT SOLD SEPARATE, Oil Deflector
    (Obtain Locally)(Comp Cam #1939E1)
    NOT SOLD SEPARATE, Oil Deflector
    (Obtain Locally)(Comp Cam #1939E1)
  • 7
    17-843378 PIN, Dowel, Alignment, Oil Pump
    PIN, Dowel, Alignment, Oil Pump
  • 8
    11-37500 NUT, (3/8-16)
    NUT, (3/8-16)
  • 9
    809910 PAN, Oil
    PAN, Oil
  • 10
    27-138651 GASKET, Oil Pan
    GASKET, Oil Pan
  • 11
    27-8M0077608 GASKET, Drain
    GASKET, Drain
  • 12
    10-809911001 SCREW KIT, Drain
    SCREW KIT, Drain
  • 13
    12-20553 WASHER, (.406 x .734 x .063)
    WASHER, (.406 x .734 x .063)
  • 14
    12-27339 WASHER
    WASHER
  • 15
    10-14070 SCREW, (.250-20 x .625)
    SCREW, (.250-20 x .625)
  • 16
    16-11989 STUD, (.312-18 x 1.6718)
    STUD, (.312-18 x 1.6718)
  • 17
    14257 REINFORCEMENT
    (Port)
    REINFORCEMENT
    (Port)
  • 18
    14256 REINFORCEMENT
    (Starboard)
    REINFORCEMENT
    (Starboard)
  • 19
    11-11971 NUT, (.312-18)
    NUT, (.312-18)
  • 20
    862704A4 TUBE
    TUBE
  • 21
    861942T9 DIPSTICK, Oil Level
    DIPSTICK, Oil Level
  • 22
    54-805625 CLIP, Dipsitck Tube
    CLIP, Dipsitck Tube
  • 23
    10-8M0040582 SCREW
    SCREW
  • -
    27-807670A02 GASKET SET, Engine Overhaul
    GASKET SET, Engine Overhaul
