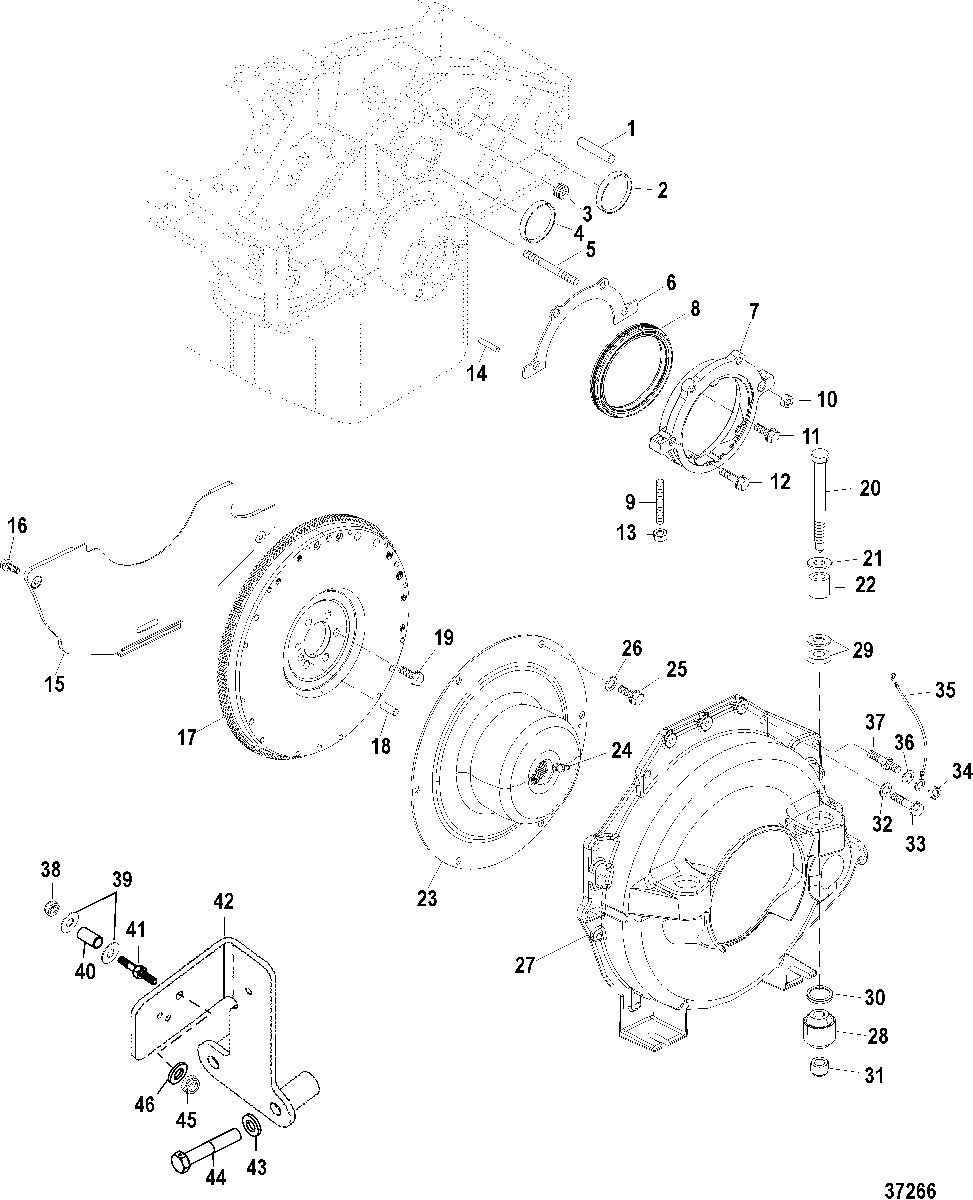

Flywheel Housing для Mercruiser - 357 STROKER SCORPION 1G481121 & Up

  • №
    Артикул
    Название
  • 1
    17-8M0092110 PIN, Dowel (.6206/.6211 x 1.20), Flywheel Housing Location
    PIN, Dowel (.6206/.6211 x 1.20), Flywheel Housing Location
  • 2
    19-34270 EXPANSION PLUG, (1.625), Engine Core Hole
    EXPANSION PLUG, (1.625), Engine Core Hole
  • 3
    22-32561 PLUG, (.250-18 x .41), Oil Galley
    PLUG, (.250-18 x .41), Oil Galley
  • 4
    22-72640 PLUG, Expansion, Camshaft Bearing Hole
    PLUG, Expansion, Camshaft Bearing Hole
  • 5
    16-14827 STUD, (.250-20 x 2.180)
    STUD, (.250-20 x 2.180)
  • 6
    27-881715 GASKET, Crankshaft Oil Seal Housing
    GASKET, Crankshaft Oil Seal Housing
  • 7
    852940 HOUSING ASSEMBLY, With Studs, Crankshaft Oil Seal
    HOUSING ASSEMBLY, With Studs, Crankshaft Oil Seal
  • 8
    26-852941 SEAL, Crankshaft Oil
    SEAL, Crankshaft Oil
  • 9
    16-11989 STUD, (.312-18 x 1.6718)
    STUD, (.312-18 x 1.6718)
  • 10
    11-8M0098315 NUT
    NUT
  • 11
    10-14242 BOLT, (.250-20 x .875)
    BOLT, (.250-20 x .875)
  • 12
    10-8M0064241 BOLT
    BOLT
  • 13
    11-11971 NUT, (.312-18)
    NUT, (.312-18)
  • 14
    17-14263 PIN, Dowel, Oil Seal Housing Locating
    PIN, Dowel, Oil Seal Housing Locating
  • 15
    807260A2 COVER KIT, Flywheel
    COVER KIT, Flywheel
  • NS
    11-807296 NUT, (.250-20)
    NUT, (.250-20)
  • 16
    10-76596 SCREW, (.250-20 x 1.250)
    SCREW, (.250-20 x 1.250)
  • 17
    222-8M0047213 FLYWHEEL
    FLYWHEEL
  • 18
    17-43504 PIN, Dowel, Flywheel
    PIN, Dowel, Flywheel
  • 19
    10-845757 SCREW, (.437-20 x 1.00)
    SCREW, (.437-20 x 1.00)
  • 20
    10-97934 SCREW, (.500-20 x 5.370) Special
    SCREW, (.500-20 x 5.370) Special
  • 21
    12-35777 WASHER, (.5156 x 1.375 x .125) Aluminum
    WASHER, (.5156 x 1.375 x .125) Aluminum
  • 22
    23-99299 SPACER, (.520 x .870 x .630)
    SPACER, (.520 x .870 x .630)
  • 23
    8M0098796 COUPLER ASSEMBLY, Engine - Long Steel Hub
    COUPLER ASSEMBLY, Engine - Long Steel Hub
  • 24
    22-74036 FITTING, Grease
    FITTING, Grease
  • 25
    10-863480 SCREW, (.375-16 x 1.125)
    SCREW, (.375-16 x 1.125)
  • 26
    12-20572 WASHER, (.390 x .750 x .093)
    WASHER, (.390 x .750 x .093)
  • 27
    865657A04 HOUSING ASSEMBLY, Flywheel
    HOUSING ASSEMBLY, Flywheel
  • 28
    865330A02 MOUNT KIT, Rubber
    MOUNT KIT, Rubber
  • 29
    12-892619A01 SHIM KIT
    SHIM KIT
  • 30
    23-99322 SPACER
    SPACER
  • 31
    11-863332 NUT, (.500-20) Aluminum
    NUT, (.500-20) Aluminum
  • 32
    12-20572 WASHER, (.390 x .750 x .093)
    WASHER, (.390 x .750 x .093)
  • 33
    10-37612 SCREW, (.375-16 x 1.250)
    SCREW, (.375-16 x 1.250)
  • 33
    10-32132 SCREW, (.375-16 x 1.750)
    SCREW, (.375-16 x 1.750)
  • 34
    11-32219 NUT, (.375-16)
    NUT, (.375-16)
  • 35
    84-62826T06 CABLE ASSEMBLY, Ground (13.00 Inches) Black
    CABLE ASSEMBLY, Ground (13.00 Inches) Black
  • 36
    13-35048 LOCKWASHER, (.375)
    LOCKWASHER, (.375)
  • 37
    16-861316 STUD
    STUD
  • 38
    11-826709109 NUT, (.250-28) Stainless Steel
    NUT, (.250-28) Stainless Steel
  • 39
    12-69056 WASHER, (.255 x .620 x .030) Stainless Steel
    WASHER, (.255 x .620 x .030) Stainless Steel
  • 40
    23-31866 SPACER, (.256 x .313 x .625)
    SPACER, (.256 x .313 x .625)
  • 41
    16-8M0113178 STUD, (.250-28 x 2.00)
    STUD, (.250-28 x 2.00)
  • 42
    841261T BRACKET
    BRACKET
  • 43
    12-856774 WASHER, (.406 x .750 x .105) Stainless Steel
    WASHER, (.406 x .750 x .105) Stainless Steel
  • 44
    10-358701 SCREW, (.375-16 x 2.00)
    SCREW, (.375-16 x 2.00)
  • 45
    11-35888 NUT, (.250-28) Stainless Steel
    NUT, (.250-28) Stainless Steel
  • 46
    12-846673 WASHER, (.265 x .500 x .060) Stainless Steel
    WASHER, (.265 x .500 x .060) Stainless Steel
  • -
    27-807670A02 GASKET SET, Engine Overhaul
    GASKET SET, Engine Overhaul
