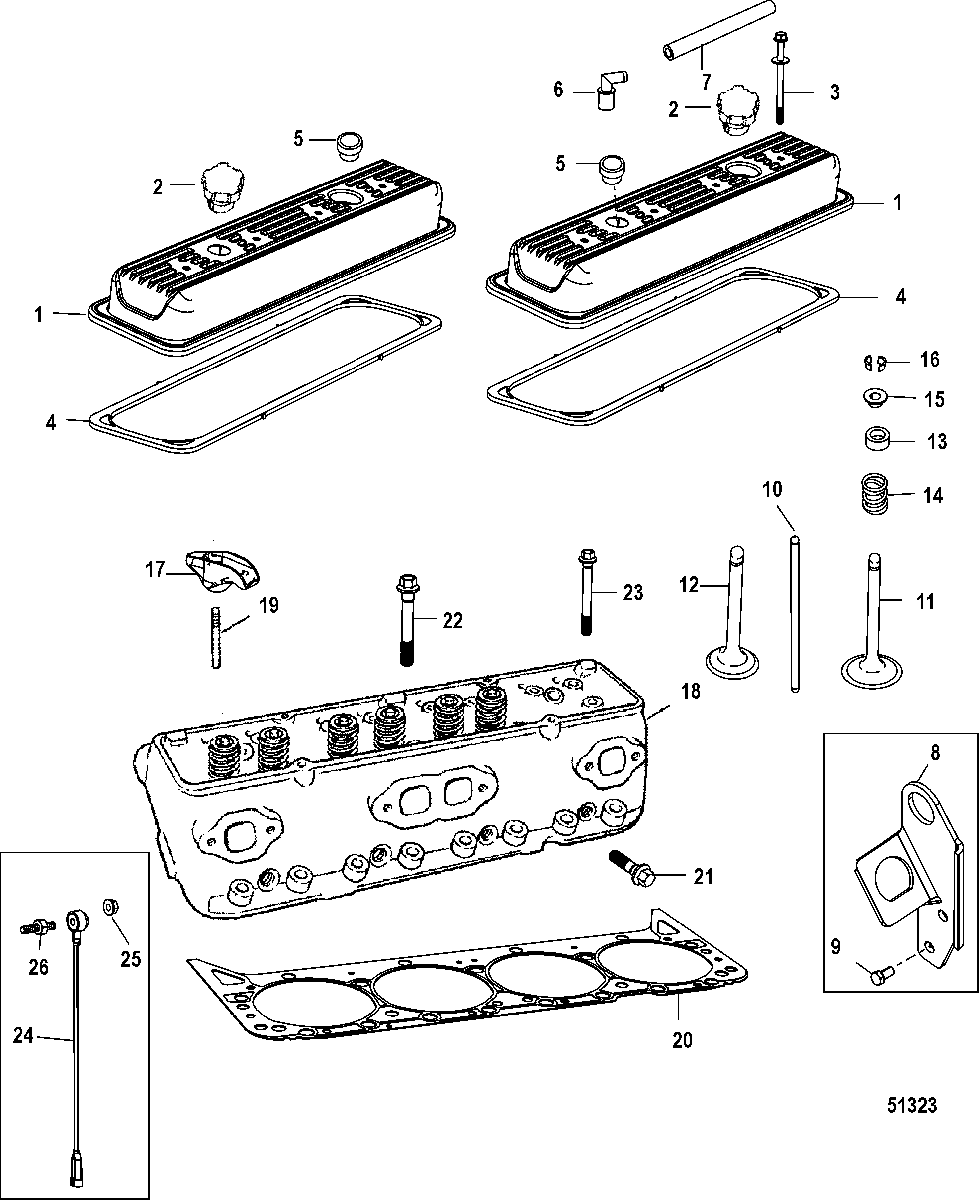

Cylinder Head and Rocker Cover для Mercruiser - 357 STROKER SCORPION 1G481121 & Up

  • №
    Артикул
    Название
  • 1
    809995 COVER, Rocker
    COVER, Rocker
  • 2
    36-18710002 CAP, Oil Fill
    CAP, Oil Fill
  • 3
    10-8M0084557 SCREW
    SCREW
  • 4
    27-17467 GASKET, Rocker Cover
    GASKET, Rocker Cover
  • 5
    23-8M0071559 GROMMET
    GROMMET
  • 6
    97850T ELBOW, 90 Degree, Breather
    ELBOW, 90 Degree, Breather
  • 7
    32-8M0086022 HOSE, (16.50 Inches Bulk)
    HOSE, (16.50 Inches Bulk)
  • 8
    899719T02 BRACKET
    BRACKET
  • 9
    10-98261 SCREW, (.375-16 x .750)
    SCREW, (.375-16 x .750)
  • 10
    NSS NOT SOLD SEPARATE
    (Obtain Locally) (Comp Cams #7608-1)
    NOT SOLD SEPARATE
    (Obtain Locally) (Comp Cams #7608-1)
  • 11
    8243171 VALVE, Exhaust
    (Standard)
    VALVE, Exhaust
    (Standard)
  • 11
    8243181 VALVE, Exhaust
    (.030 Oversize)
    VALVE, Exhaust
    (.030 Oversize)
  • 12
    809992 VALVE, Intake - Standard
    VALVE, Intake - Standard
  • 13
    26-8M0050563 SEAL, Valve
    Intake and Exhaust
    SEAL, Valve
    Intake and Exhaust
  • 14
    8M0120862 Valve Spring Kit, Complete
    Contains valve springs, caps, and keepers for both heads
    Valve Spring Kit, Complete
    Contains valve springs, caps, and keepers for both heads
  • 15
    483481 CAP
    CAP
  • 16
    28-547971 KEY
    KEY
  • 17
    8M0060593 ARM KIT, 1.6 Ratio Self Align
    ARM KIT, 1.6 Ratio Self Align
  • 18
    938-8M0115139 CYLINDER HEAD ASSEMBLY, Cylinder
    CYLINDER HEAD ASSEMBLY, Cylinder
  • 19
    8M0060592 Rocker Stud
    Rocker Stud
  • 20
    27-75611001 GASKET
    GASKET
  • 21
    10-11968 SCREW, (.437-14 x 1.750)
    SCREW, (.437-14 x 1.750)
  • 22
    10-119671 SCREW, (.437-14 x 3.00)
    SCREW, (.437-14 x 3.00)
  • 23
    10-11966 SCREW, (.437-14 x 3.750)
    SCREW, (.437-14 x 3.750)
  • 24
    8M6003194 SENSOR ASSEMBLY, Knock
    SENSOR ASSEMBLY, Knock
  • 25
    11-82670912 NUT, (.375-16) Stainless Steel
    NUT, (.375-16) Stainless Steel
  • 26
    16-863414 STUD
    STUD
  • -
    27-807670A02 GASKET SET, Engine Overhaul
    GASKET SET, Engine Overhaul
