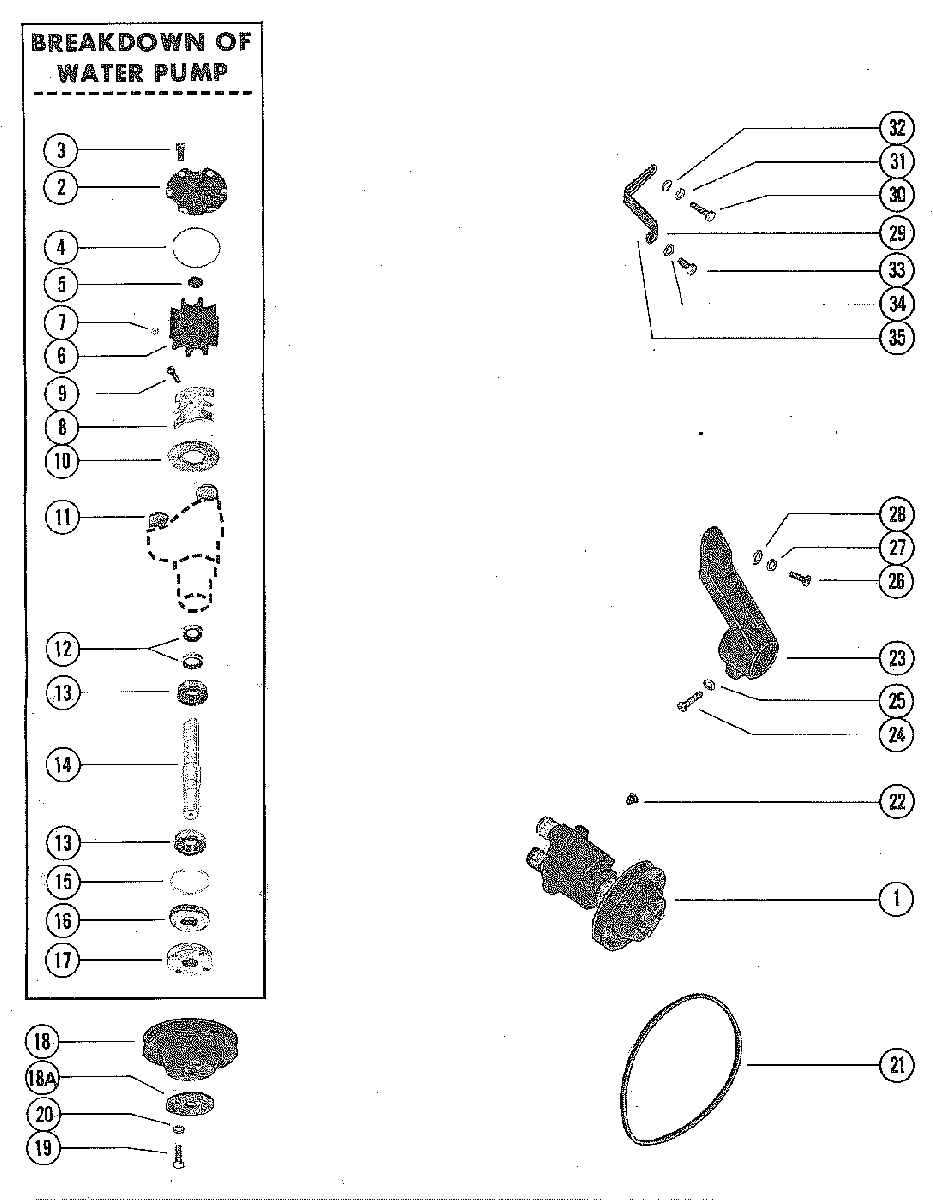

WATER PUMP ASSEMBLY, COMPLETE для Mercruiser - 350 MIE GM 454 V-8 1974-1976 3780450 THRU 4623109

  • №
    Артикул
    Название
  • 1
    46-72774A32 WATER PUMP ASSEMBLY, COMPLETE
    SERIAL 00000000-04178869
    WATER PUMP ASSEMBLY, COMPLETE
    SERIAL 00000000-04178869
  • 1
    46-72774A32 WATER PUMP ASSEMBLY, COMPLETE
    SERIAL 04178870-09999999
    WATER PUMP ASSEMBLY, COMPLETE
    SERIAL 04178870-09999999
  • 2
    59155 COVER, WATER PUMP
    COVER, WATER PUMP
  • 3
    10-28635 SCREW, WATER PUMP COVER ATTACHING (5/8")
    SCREW, WATER PUMP COVER ATTACHING (5/8")
  • 4
    25-53421 "O" RING. WATER PUMP COVER
    "O" RING. WATER PUMP COVER
  • 5
    19-59504 PLUG, IMPELLER
    PLUG, IMPELLER
  • 6
    47-59362T1 IMPELLER ASSEMBLY
    IMPELLER ASSEMBLY
  • 7
    28-8M0032837 KEY, IMPELLER DRIVE
    KEY, IMPELLER DRIVE
  • 8
    59363A1 CAM SEGMENT ASSEMBLY, WATER PUMP
    CAM SEGMENT ASSEMBLY, WATER PUMP
  • 9
    10-60777 SCREW, CAM SEGMENT ATTACHING (1/2")
    SCREW, CAM SEGMENT ATTACHING (1/2")
  • 10
    59503 WEAR PLATE
    WEAR PLATE
  • 11
    23-47511 SLEEVE, WATER PUMP COVER
    SLEEVE, WATER PUMP COVER
  • 12
    26-90562 OIL SEAL, WATER PUMP SHAFT
    OIL SEAL, WATER PUMP SHAFT
  • 13
    30-72961 BALL BEARING, WATER PUMP SHAFT
    SERIAL 00000000-04178869
    BALL BEARING, WATER PUMP SHAFT
    SERIAL 00000000-04178869
  • 13
    30-72961 BALL BEARING, WATER PUMP SHAFT
    SERIAL 04178870-09999999
    BALL BEARING, WATER PUMP SHAFT
    SERIAL 04178870-09999999
  • 14
    59501A1 SHAFT, WATER PUMP
    SHAFT, WATER PUMP
  • 15
    53-23720 RING, SNAP - BALL BEARING RETAING
    RING, SNAP - BALL BEARING RETAING
  • 16
    26-72785 OIL SEAL, WATER PUMP SHAFT
    SERIAL 00000000-04178869
    OIL SEAL, WATER PUMP SHAFT
    SERIAL 00000000-04178869
  • 16
    26-72785 OIL SEAL, WATER PUMP SHAFT
    SERIAL 04178870-09999999
    OIL SEAL, WATER PUMP SHAFT
    SERIAL 04178870-09999999
  • 17
    47530 HUB, WATER PUMP PULLEY
    HUB, WATER PUMP PULLEY
  • 18
    59762T PULLEY, WATER PUMP
    SERIAL 00000000-04501640
    PULLEY, WATER PUMP
    SERIAL 00000000-04501640
  • 18
    73798A1 PULLEY, WATER PUMP
    SERIAL 04501641-09999999
    PULLEY, WATER PUMP
    SERIAL 04501641-09999999
  • 18A
    58265 CLAMP RING, WATER PUMP PULLEY
    SERIAL 04501641-09999999
    CLAMP RING, WATER PUMP PULLEY
    SERIAL 04501641-09999999
  • 19
    10-47277 SCREW, PULLEY TO WATER PUMP (3/4")
    SERIAL 00000000-04501640
    SCREW, PULLEY TO WATER PUMP (3/4")
    SERIAL 00000000-04501640
  • 19
    10-33524 SCREW, PULLEY TO WATER PUMP (5/8")
    SERIAL 04501641-09999999
    SCREW, PULLEY TO WATER PUMP (5/8")
    SERIAL 04501641-09999999
  • 20
    13-39107 LOCKWASHER, WATER PUMP PULLEY SCREW
    LOCKWASHER, WATER PUMP PULLEY SCREW
  • 21
    57-39756 BELT, WATER PUMP
    SERIAL 00000000-04501640
    BELT, WATER PUMP
    SERIAL 00000000-04501640
  • 21
    57-74271Q BELT, WATER PUMP
    SERIAL 04501641-09999999
    BELT, WATER PUMP
    SERIAL 04501641-09999999
  • 22
    22-328022 PLUG, PIPE - WATER PUMP
    PLUG, PIPE - WATER PUMP
  • 23
    47489A2 BRACKET, WATER PUMP
    BRACKET, WATER PUMP
  • 24
    10-34354 SCREW, WATER PUMP BRACKET ATTACHING (1 1/2")
    SCREW, WATER PUMP BRACKET ATTACHING (1 1/2")
  • 25
    13-35048 LOCKWASHER, WATER PUMP BRACKET SCREW
    LOCKWASHER, WATER PUMP BRACKET SCREW
  • 26
    10-48948 SCREW, WATER PUMP BRACKET TO ENGINE (7/8")
    SCREW, WATER PUMP BRACKET TO ENGINE (7/8")
  • 26
    10-47461 SCREW, WATER PUMP BRACKET TO ENGINE (1")
    SCREW, WATER PUMP BRACKET TO ENGINE (1")
  • 27
    13-32993 LOCKWAHER, WATER PUMP BRACKET SCREW
    LOCKWAHER, WATER PUMP BRACKET SCREW
  • 28
    12-74758 WASHER, WATER PUMP BRACKET
    WASHER, WATER PUMP BRACKET
  • 29
    47544 BRACE, WATER PUMP ADJUSTING
    BRACE, WATER PUMP ADJUSTING
  • 30
    10-34353 SCREW, ADJUSTING BRACE TO OIL PAN (1") 1
    SCREW, ADJUSTING BRACE TO OIL PAN (1") 1
  • 31
    13-35048 LOCKWASHER, ADJUSTING BRACE SCREW
    LOCKWASHER, ADJUSTING BRACE SCREW
  • 32
    12-20572 WASHER, ADJUSTING BRACE SCEEW
    WASHER, ADJUSTING BRACE SCEEW
  • 33
    10-35786 SCREW, ADJUSTING BRACE TO BRACKET (1")
    SCREW, ADJUSTING BRACE TO BRACKET (1")
  • 34
    13-35048 LOCKWASHER, ADJUSTING BRACE
    LOCKWASHER, ADJUSTING BRACE
  • 35
    11-46335 NUT, ADJUSTING BRACE SCREW
    NUT, ADJUSTING BRACE SCREW
