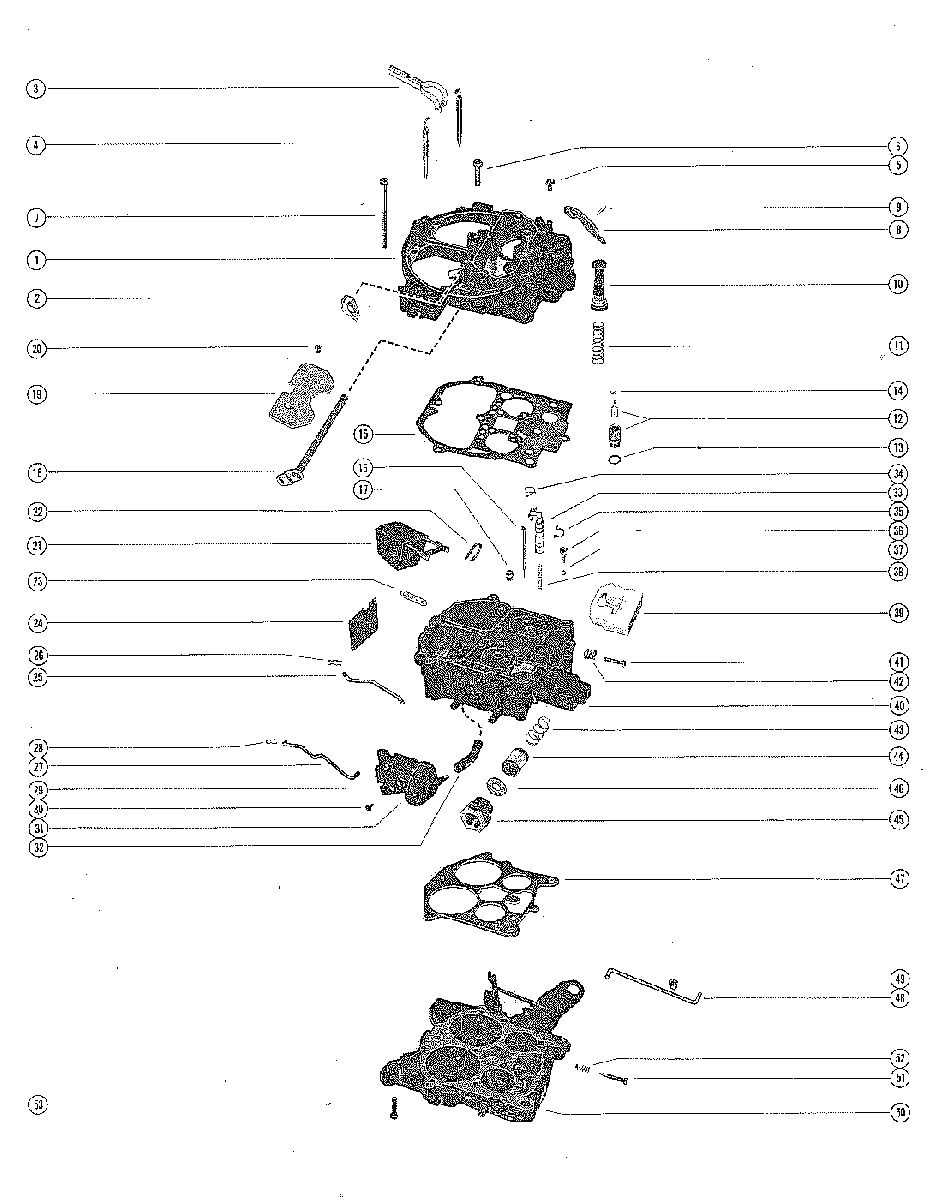

CARBURETOR ASSEMBLY, COMPLETE для Mercruiser - 350 MIE GM 454 V-8 1974-1976 3780450 THRU 4623109

  • №
    Артикул
    Название
  • -
    1347-5326A2 CARBURETOR ASSEMBLY, COMPLETE
    CARBURETOR ASSEMBLY, COMPLETE
  • 1
    1397-5637 AIR HORN ASSEMBLY
    AIR HORN ASSEMBLY
  • 2
    1397-5640 LEVER, AIR VALVE LOCKOUT
    LEVER, AIR VALVE LOCKOUT
  • 3
    1397-3313 HOLDER KIT, SECONDARY METERING ROD
    HOLDER KIT, SECONDARY METERING ROD
  • 4
    1397-5639 METERING ROD, SECONDARY
    METERING ROD, SECONDARY
  • 5
    10-48137 SCREW, AIR HORN TO FLOAT BOWL (3/8")
    SCREW, AIR HORN TO FLOAT BOWL (3/8")
  • 6
    10-34370 SCREW, AIR HORN TO FLOAT BOWL (1")
    SCREW, AIR HORN TO FLOAT BOWL (1")
  • 7
    10-48395 SCREW, AIR HORN TO FLOAT BOWL (3")
    SCREW, AIR HORN TO FLOAT BOWL (3")
  • 8
    1397-5638 LEVER, ACTUATING - PUMP
    LEVER, ACTUATING - PUMP
  • 9
    90-8M0143356 ROLL PIN, HINGE - PUMP LEVER
    ROLL PIN, HINGE - PUMP LEVER
  • 10
    90-8M0143356 PUMP ASSEMBLY
    PUMP ASSEMBLY
  • 11
    90-8M0143356 SPRING, PUMP RETURN
    SPRING, PUMP RETURN
  • 12
    90-8M0143356 NEEDLE AND SEAT ASSEMBLY
    NEEDLE AND SEAT ASSEMBLY
  • 13
    90-8M0143356 GASKET, NEEDLE AND SEAT
    GASKET, NEEDLE AND SEAT
  • 14
    90-8M0143356 PULL CLIP, FLOAT NEEDLE
    PULL CLIP, FLOAT NEEDLE
  • 15
    90-8M0143356 GASKET, AIR HORN
    GASKET, AIR HORN
  • 16
    90-8M0143356 METERING ROD, PRIMARY
    METERING ROD, PRIMARY
  • 17
    90-8M0143356 JET, PRIMARY
    JET, PRIMARY
  • 18
    1397-4326 CHOKE SHAFT AND LEVER ASSEMBLY
    CHOKE SHAFT AND LEVER ASSEMBLY
  • 19
    1397-4587 VALVE, CHOKE - CHOKE SHAFT
    VALVE, CHOKE - CHOKE SHAFT
  • 20
    10-48139 SCREW, CHOKE VALVE TO CHOKE SHAFT
    SCREW, CHOKE VALVE TO CHOKE SHAFT
  • 21
    1397-3327 FLOAT ASSEMBLY
    FLOAT ASSEMBLY
  • 22
    17-48140 PIN, HINGE - FLOAT
    PIN, HINGE - FLOAT
  • 23
    1397-3323 LEVER, INTERMEDIATE CHOKE
    LEVER, INTERMEDIATE CHOKE
  • 24
    1397-3332 BAFFLE, FLOAT BOWL
    BAFFLE, FLOAT BOWL
  • 25
    1397-3324 ROD, CHOKE
    ROD, CHOKE
  • 26
    90-8M0143356 CLIP, CHOKE ROD
    CLIP, CHOKE ROD
  • 27
    1397-3318 ROD, VACUUM CONTROL
    ROD, VACUUM CONTROL
  • 28
    90-8M0143356 CLIP, VACUUM CONTROL ROD
    CLIP, VACUUM CONTROL ROD
  • 29
    1397-3339 BRACKET ASSEMBLY, VACUUM CONTROL
    BRACKET ASSEMBLY, VACUUM CONTROL
  • 30
    10-48138 SCREW, VACUUM CONTROL BRACKET TO FLOAT BOWL
    SCREW, VACUUM CONTROL BRACKET TO FLOAT BOWL
  • 31
    1397-3317 CONTROL ASSEMBLY, VACUUM
    CONTROL ASSEMBLY, VACUUM
  • 32
    1397-3320 HOSE, VACUUM
    HOSE, VACUUM
  • 33
    1397-5641 POWER PISTON ASSEMBLY
    POWER PISTON ASSEMBLY
  • 34
    24-48142 SPRING, METERING ROD - PRIMARY
    SPRING, METERING ROD - PRIMARY
  • 35
    1397-3329 RETAINER, POWER PISTON
    RETAINER, POWER PISTON
  • 36
    1397-3326 RETAINER, PUMP DISCHARGE BALL
    RETAINER, PUMP DISCHARGE BALL
  • 37
    90-8M0143356 BALL, PUMP DISCHARGE
    BALL, PUMP DISCHARGE
  • 38
    24-48141 SPRING, POWER PISTON
    SPRING, POWER PISTON
  • 39
    1397-3331 INSERT, FLOAT BOWL
    INSERT, FLOAT BOWL
  • 40
    1397-3325 FLOAT BOWL ASSEMBLY
    FLOAT BOWL ASSEMBLY
  • 41
    10-48144 SCREW, IDLE STOP
    SCREW, IDLE STOP
  • 42
    24-34373 SPRING, IDLE STOP SCREW
    SPRING, IDLE STOP SCREW
  • 43
    3302-9032 SPRING, FILTER NUT
    SPRING, FILTER NUT
  • 44
    35-53336Q FILTER, FUEL INLET
    FILTER, FUEL INLET
  • 45
    1397-3330 NUT, FILTER - FUEL INLET
    NUT, FILTER - FUEL INLET
  • 46
    90-8M0143356 GASKET, FILTER NUT
    GASKET, FILTER NUT
  • 47
    90-8M0143356 GASKET, THROTTLE BODY
    GASKET, THROTTLE BODY
  • 48
    1397-3333 ROD, PUMP
    ROD, PUMP
  • 49
    90-8M0143356 CLIP, PUMP ROD
    CLIP, PUMP ROD
  • 50
    1397-4588 TROTTLE BODY ASSEMBLY
    TROTTLE BODY ASSEMBLY
  • 51
    90-8M0143356 IDLE NEEDLE, THROTTLE BODY
    IDLE NEEDLE, THROTTLE BODY
  • 52
    24-33050 SPRING IDLE NEEDLE
    SPRING IDLE NEEDLE
  • 53
    1397-4333 SCREW, THROTTLE BODY TO FLOAT BOWL
    SCREW, THROTTLE BODY TO FLOAT BOWL
  • --
    1397-3315 SPRING AND CAM KIT, AIR VALVE
    SPRING AND CAM KIT, AIR VALVE
  • --
    823426A1 OVERHAUL KIT
    OVERHAUL KIT
  • --
    823426A1 GASKET SET
    GASKET SET
  • --
    823426A1 OFF ENGINE KIT
    OFF ENGINE KIT
