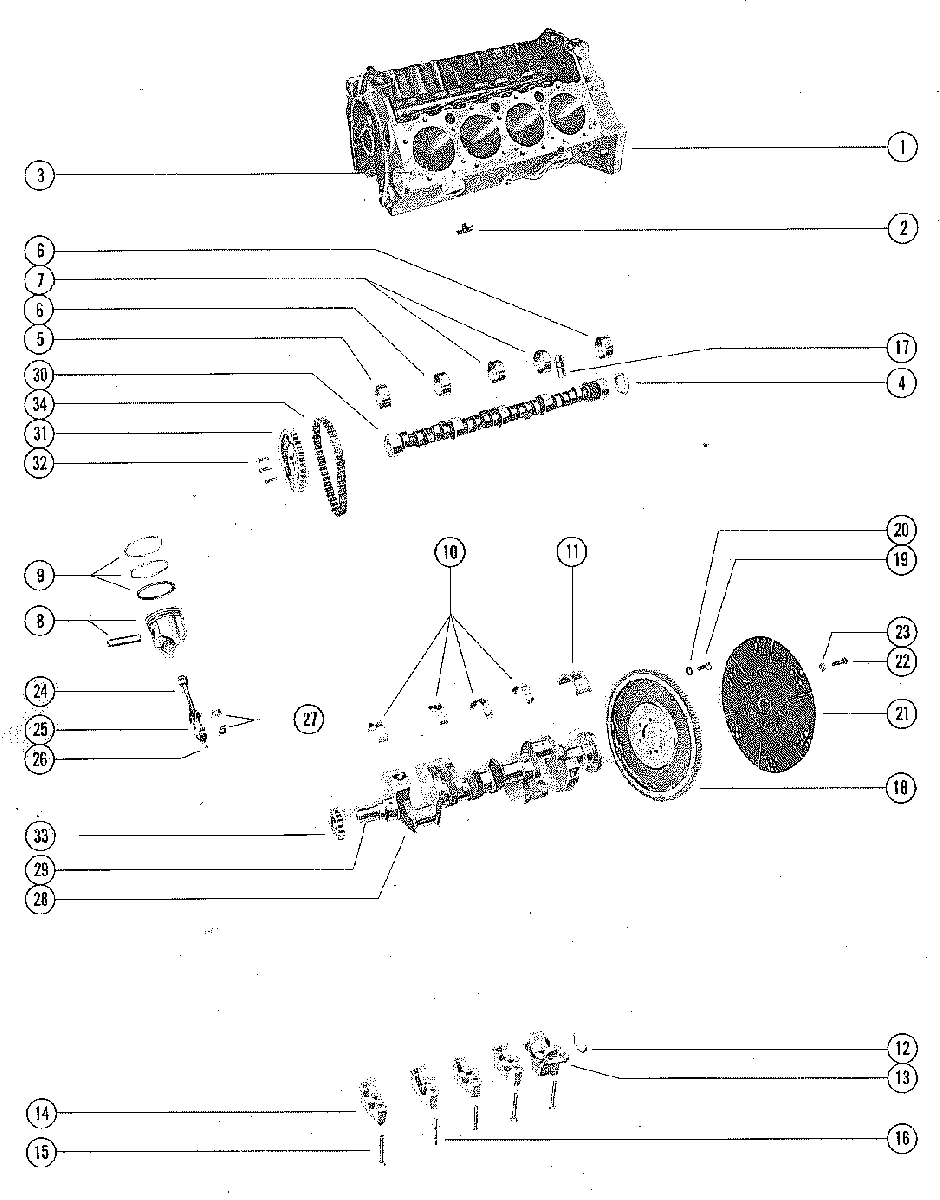

CYLINDER BLOCK, PISTONS AND CRANKSHAFT для Mercruiser - 350 MIE GM 454 V-8 1974-1976 3780450 THRU 4623109

  • №
    Артикул
    Название
  • 1
    842-6035 CYLINDER BLOCK ASSEMBLY
    SERIAL 00000000-04178869
    CYLINDER BLOCK ASSEMBLY
    SERIAL 00000000-04178869
  • 1
    842-6035 CYLINDER BLOCK ASSEMBLY
    SERIAL 04178870-04501640
    CYLINDER BLOCK ASSEMBLY
    SERIAL 04178870-04501640
  • 1
    842-6356 CYLINDER BLOCK ASSEMBLY
    SERIAL 04501641-09999999
    CYLINDER BLOCK ASSEMBLY
    SERIAL 04501641-09999999
  • -
    22-428611 PLUG, PIPE - CYLINDER BLOCK (3/4")
    PLUG, PIPE - CYLINDER BLOCK (3/4")
  • -
    22-69300 PLUG, PIPE - CYLINDER BLOCK (1 3/4")
    PLUG, PIPE - CYLINDER BLOCK (1 3/4")
  • -
    22-32561 PLUG, PIPE - CYLINDER BLOCK (1/4")
    PLUG, PIPE - CYLINDER BLOCK (1/4")
  • -
    22-67865 PLUG, PIPE - CYLINDER BLOCK
    PLUG, PIPE - CYLINDER BLOCK
  • -
    22-12524 PLUG, PIPE - CYLINDER BLOCK (3/8")
    PLUG, PIPE - CYLINDER BLOCK (3/8")
  • 2
    22-16951Q1 DRAIN COCK, WATER - CYLINDER BLOCK
    DRAIN COCK, WATER - CYLINDER BLOCK
  • 3
    17-52190 PIN, DOWEL - CYLINDER BLOCK TO CYLINDER HEAD
    PIN, DOWEL - CYLINDER BLOCK TO CYLINDER HEAD
  • 4
    19-94140 PLUG, EXPANSION - CAMSHAFT BEARING HOLE
    PLUG, EXPANSION - CAMSHAFT BEARING HOLE
  • 5
    23-49150 BEARING UNIT, CAMSHAFT (FRONT)
    BEARING UNIT, CAMSHAFT (FRONT)
  • 6
    23-85684 BEARING UNIT, CAMSHAFT (FRONT INTERMEDIATE AND REAR)
    BEARING UNIT, CAMSHAFT (FRONT INTERMEDIATE AND REAR)
  • 7
    23-49152 BEARING UNIT, CAMSHAFT (CENTER AND REAR INTERMEDIATE)
    BEARING UNIT, CAMSHAFT (CENTER AND REAR INTERMEDIATE)
  • 8
    737-5536T PISTON AND PISTON PIN ASSEMBLY (STANDARD)
    NOT INCLUDED WITH CYLINDER BLOCK ASSEMBLY
    PISTON AND PISTON PIN ASSEMBLY (STANDARD)
    NOT INCLUDED WITH CYLINDER BLOCK ASSEMBLY
  • 8
    737-5537 PISTON AND PISTON PIN ASSEMBLY (.030 O.S.)
    NOT INCLUDED WITH CYLINDER BLOCK ASSEMBLY
    PISTON AND PISTON PIN ASSEMBLY (.030 O.S.)
    NOT INCLUDED WITH CYLINDER BLOCK ASSEMBLY
  • 9
    39-67127 RING, PISTON (STANDARD)
    NOT INCLUDED WITH CYLINDER BLOCK ASSEMBLY
    RING, PISTON (STANDARD)
    NOT INCLUDED WITH CYLINDER BLOCK ASSEMBLY
  • 9
    39-67128 RING, PISTON (.030 O.S.)
    NOT INCLUDED WITH CYLINDER BLOCK ASSEMBLY
    RING, PISTON (.030 O.S.)
    NOT INCLUDED WITH CYLINDER BLOCK ASSEMBLY
  • 10
    23-818473001 BEARING UNIT, CRANKSHAFT MAIN (STANDARD)
    NOT INCLUDED WITH CYLINDER BLOCK ASSEMBLY
    BEARING UNIT, CRANKSHAFT MAIN (STANDARD)
    NOT INCLUDED WITH CYLINDER BLOCK ASSEMBLY
  • 10
    23-818474 BEARING UNIT, CRANKSHAFT MAIN (.030 U.S.)
    NOT INCLUDED WITH CYLINDER BLOCK ASSEMBLY
    BEARING UNIT, CRANKSHAFT MAIN (.030 U.S.)
    NOT INCLUDED WITH CYLINDER BLOCK ASSEMBLY
  • 10
    23-818475 BEARING UNIT, CRANKSHAFT MAIN (.002 U.S.)
    NOT INCLUDED WITH CYLINDER BLOCK ASSEMBLY
    BEARING UNIT, CRANKSHAFT MAIN (.002 U.S.)
    NOT INCLUDED WITH CYLINDER BLOCK ASSEMBLY
  • 10
    23-85724 BEARING UNIT, CRANKSHAFT MAIN (.010 U.S.)
    NOT INCLUDED WITH CYLINDER BLOCK ASSEMBLY
    BEARING UNIT, CRANKSHAFT MAIN (.010 U.S.)
    NOT INCLUDED WITH CYLINDER BLOCK ASSEMBLY
  • 10
    23-818477 BEARING UNIT, CRANKSHAFT MAIN (.020 U.S.)
    NOT INCLUDED WITH CYLINDER BLOCK ASSEMBLY
    BEARING UNIT, CRANKSHAFT MAIN (.020 U.S.)
    NOT INCLUDED WITH CYLINDER BLOCK ASSEMBLY
  • 11
    23-818473001 BEARING UNIT, CRANKSHAFT MAIN - REAR (STANDARD)
    NOT INCLUDED WITH CYLINDER BLOCK ASSEMBLY
    BEARING UNIT, CRANKSHAFT MAIN - REAR (STANDARD)
    NOT INCLUDED WITH CYLINDER BLOCK ASSEMBLY
  • 11
    23-818474 BEARING UNIT, CRANKSHAFT MAIN - REAR (.001 U.S.)
    NOT INCLUDED WITH CYLINDER BLOCK ASSEMBLY
    BEARING UNIT, CRANKSHAFT MAIN - REAR (.001 U.S.)
    NOT INCLUDED WITH CYLINDER BLOCK ASSEMBLY
  • 11
    23-818475 BEARING UNIT, CRANKSHAFT MAIN - REAR (.002 U.S.)
    NOT INCLUDED WITH CYLINDER BLOCK ASSEMBLY
    BEARING UNIT, CRANKSHAFT MAIN - REAR (.002 U.S.)
    NOT INCLUDED WITH CYLINDER BLOCK ASSEMBLY
  • 11
    23-818476001 BEARING UNIT, CRANKSHAFT MAIN - REAR (.010 U.S.)
    NOT INCLUDED WITH CYLINDER BLOCK ASSEMBLY
    BEARING UNIT, CRANKSHAFT MAIN - REAR (.010 U.S.)
    NOT INCLUDED WITH CYLINDER BLOCK ASSEMBLY
  • 11
    23-818477 BEARING UNIT, CRANKSHAFT MAIN - REAR (.020 U.S.)
    NOT INCLUDED WITH CYLINDER BLOCK ASSEMBLY
    BEARING UNIT, CRANKSHAFT MAIN - REAR (.020 U.S.)
    NOT INCLUDED WITH CYLINDER BLOCK ASSEMBLY
  • 12
    26-8M0062773 OIL SEAL, REAR CRANKSHAFT BEARING CAP (LEFT HAND ROTATION)
    NOT INCLUDED WITH CYLINDER BLOCK ASSEMBLY
    OIL SEAL, REAR CRANKSHAFT BEARING CAP (LEFT HAND ROTATION)
    NOT INCLUDED WITH CYLINDER BLOCK ASSEMBLY
  • 12
    26-8M0062773 OIL SEAL, REAR CRANKSHAFT BEARING CAP (RIGHT HAND ROTATION)
    NOT INCLUDED WITH CYLINDER BLOCK ASSEMBLY
    OIL SEAL, REAR CRANKSHAFT BEARING CAP (RIGHT HAND ROTATION)
    NOT INCLUDED WITH CYLINDER BLOCK ASSEMBLY
  • 13
    49142 CAP, REAR - CRANKSHAFT BEARING
    CAP, REAR - CRANKSHAFT BEARING
  • 14
    49143 CAP, INTERMEDIATE AND FRONT - CRANKSHAFT BEARING
    CAP, INTERMEDIATE AND FRONT - CRANKSHAFT BEARING
  • 15
    10-49145 BOLT, CRANKSHAFT BEARING CAP TO CYLINDER BLOCK (2 5/8")
    BOLT, CRANKSHAFT BEARING CAP TO CYLINDER BLOCK (2 5/8")
  • 15
    10-49147 BOLT, CRANKSHAFT BEARING CAP TO CYLINDER BLOCK (3 3/8")
    BOLT, CRANKSHAFT BEARING CAP TO CYLINDER BLOCK (3 3/8")
  • 16
    16-49144 STUD, CRANKSHAFT BEARING CAP TO CYLINDER BLOCK
    STUD, CRANKSHAFT BEARING CAP TO CYLINDER BLOCK
  • 17
    72638 LIFTER, HYDRAULIC VALVE - TAPPET
    LIFTER, HYDRAULIC VALVE - TAPPET
  • 18
    230-5534 FLYWHEEL ASSEMBLY
    FLYWHEEL ASSEMBLY
  • 19
    10-845757 SCREW, FLYWHEEL TO CRANKSHAFT
    SCREW, FLYWHEEL TO CRANKSHAFT
  • 20
    13-39131 LOCKWASHER, FLYWHEEL SCREW
    LOCKWASHER, FLYWHEEL SCREW
  • 21
    860125T DRIVE PLATE, FLYWHEEL
    DRIVE PLATE, FLYWHEEL
  • 22
    10-35091 SCREW, DRIVE PLATE TO FLYWHEEL
    SCREW, DRIVE PLATE TO FLYWHEEL
  • 23
    13-35048 LOCKWASHER, DRIVE PLATE SCREW
    LOCKWASHER, DRIVE PLATE SCREW
  • 24
    614-8M0084554 CONNECTING ROD ASSEMBLY
    SERIAL 00000000-04501640
    CONNECTING ROD ASSEMBLY
    SERIAL 00000000-04501640
  • 25
    10-67864 BOLT, CONNECTING ROD CAP
    SERIAL 00000000-04501640
    BOLT, CONNECTING ROD CAP
    SERIAL 00000000-04501640
  • 26
    23-58506 NUT, CONNECTING ROD CAP BOLT
    SERIAL 00000000-04501640
    NUT, CONNECTING ROD CAP BOLT
    SERIAL 00000000-04501640
  • 24
    614-8M0030663 CONNECTING ROD ASSEMBLY
    SERIAL 04501641-09999999
    CONNECTING ROD ASSEMBLY
    SERIAL 04501641-09999999
  • 25
    10-52192 BOLT, CONNECTING ROD CAP
    SERIAL 04501641-09999999
    BOLT, CONNECTING ROD CAP
    SERIAL 04501641-09999999
  • 26
    11-37493 NUT, CONNECTING ROD CAP BOLT
    SERIAL 04501641-09999999
    NUT, CONNECTING ROD CAP BOLT
    SERIAL 04501641-09999999
  • 27
    23-85726001 BEARING SET (8 PAIR), CONNECTING ROD (STANDARD)
    BEARING SET (8 PAIR), CONNECTING ROD (STANDARD)
  • 27
    23-85727 BEARING UNIT (PAIR), CONNECTING ROD (.001 U.S.)
    BEARING UNIT (PAIR), CONNECTING ROD (.001 U.S.)
  • 27
    23-85728 BEARING UNIT (PAIR), CONNECTING ROD (.002 U.S.)
    BEARING UNIT (PAIR), CONNECTING ROD (.002 U.S.)
  • 27
    23-85691 BEARING UNIT (PAIR), CONNECTING ROD (.010 U.S.)
    BEARING UNIT (PAIR), CONNECTING ROD (.010 U.S.)
  • 27
    23-85729 BEARING UNIT (PAIR), CONNECTING ROD (.020 U.S.)
    BEARING UNIT (PAIR), CONNECTING ROD (.020 U.S.)
  • 28
    429-5533 CRANKSHAFT
    CRANKSHAFT
  • 29
    28-34466 KEY, CRANKSHAFT GEAR, CAMSHAFT GEAR AND DAMPER
    KEY, CRANKSHAFT GEAR, CAMSHAFT GEAR AND DAMPER
  • 30
    431-4734 CAMSHAFT
    LEFT HAND CRANKSHAFT ROTATION
    CAMSHAFT
    LEFT HAND CRANKSHAFT ROTATION
  • 31
    43-61726 SPROCKET, CAMSHAFT
    LEFT HAND CRANKSHAFT ROTATION
    SPROCKET, CAMSHAFT
    LEFT HAND CRANKSHAFT ROTATION
  • 32
    10-34505 BOLT, CAMSHAFT SPROCKET
    LEFT HAND CRANKSHAFT ROTATION
    BOLT, CAMSHAFT SPROCKET
    LEFT HAND CRANKSHAFT ROTATION
  • 33
    43-61727 SPROCKET, CAMSHAFT
    LEFT HAND CRANKSHAFT ROTATION
    SPROCKET, CAMSHAFT
    LEFT HAND CRANKSHAFT ROTATION
  • 34
    61728 CHAIN DRIVE
    LEFT HAND CRANKSHAFT ROTATION
    CHAIN DRIVE
    LEFT HAND CRANKSHAFT ROTATION
  • 30
    431-3427 CAMSHAFT
    RIGHT HAND CRANKSHAFT ROTATION
    CAMSHAFT
    RIGHT HAND CRANKSHAFT ROTATION
  • --
    23-49124 THRUST PLATE, CAMSHAFT
    RIGHT HAND CRANKSHAFT ROTATION
    THRUST PLATE, CAMSHAFT
    RIGHT HAND CRANKSHAFT ROTATION
  • 31
    43-67115 GEAR, CAMSHAFT
    RIGHT HAND CRANKSHAFT ROTATION
    GEAR, CAMSHAFT
    RIGHT HAND CRANKSHAFT ROTATION
  • 32
    10-8M0040582 BOLT, CAMSHAFT GEAR
    RIGHT HAND CRANKSHAFT ROTATION
    BOLT, CAMSHAFT GEAR
    RIGHT HAND CRANKSHAFT ROTATION
  • 33
    43-49114 GEAR, CRANKSHAFT
    RIGHT HAND CRANKSHAFT ROTATION
    GEAR, CRANKSHAFT
    RIGHT HAND CRANKSHAFT ROTATION
