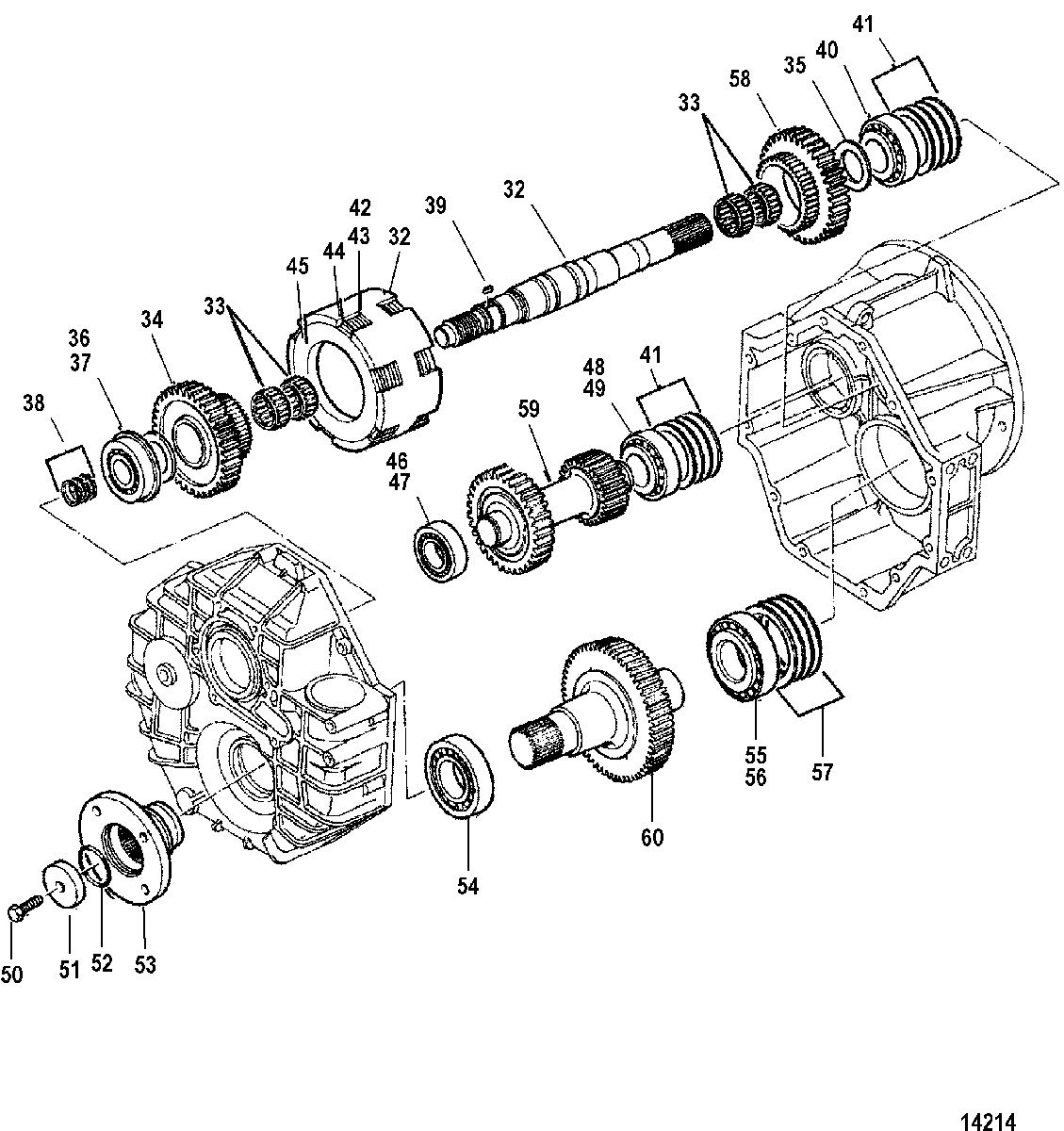

Transmission (Down Angle)(Hurth 630) для Mercruiser - 350 MAG MPI MIE 0L302200 THRU 0M299999

  • №
    Артикул
    Название
  • -
    863744T2 TRANSMISSION, (1.5:1 Ratio)
    TRANSMISSION, (1.5:1 Ratio)
  • -
    863744T3 TRANSMISSION, (2.0:1 Ratio)
    TRANSMISSION, (2.0:1 Ratio)
  • -
    863744T4 TRANSMISSION, (2.5:1 Ratio)
    TRANSMISSION, (2.5:1 Ratio)
  • 32
    813306 SHAFT, Input
    SHAFT, Input
  • 33
    31-813307 BEARING, Roller
    BEARING, Roller
  • 34
    43-813308 GEAR
    GEAR
  • 35
    12-813309 WASHER
    WASHER
  • 36
    31-852066 BEARING (INNER)
    BEARING (INNER)
  • 37
    31-852066 BEARING, Tapered Roller (OUTER)
    BEARING, Tapered Roller (OUTER)
  • 38
    53-813312 RING
    RING
  • 39
    28-813313 KEY
    KEY
  • 40
    30-813314 BEARING
    BEARING
  • 41
    15-813315 SHIM, (.10 mm) (.10 MM)
    SHIM, (.10 mm) (.10 MM)
  • 41
    15-813316 SHIM, (.15 mm)
    SHIM, (.15 mm)
  • 41
    15-813317 SHIM, (.20 mm)
    SHIM, (.20 mm)
  • 41
    15-813318 SHIM, (.50 mm)
    SHIM, (.50 mm)
  • 42
    813319 DISC
    DISC
  • 43
    813320 DISC
    DISC
  • 44
    53-813321 RING
    RING
  • 45
    813322 PRESSURE DISC
    PRESSURE DISC
  • 46
    31-813323 BEARING, Tapered Roller (INNER)
    BEARING, Tapered Roller (INNER)
  • 47
    31-813324 BEARING, Tapered Roller (OUTER)
    BEARING, Tapered Roller (OUTER)
  • 48
    31-813325 BEARING, Tapered Roller (INNER)
    BEARING, Tapered Roller (INNER)
  • 49
    31-813326 BEARING, Tapered Roller (OUTER)
    BEARING, Tapered Roller (OUTER)
  • 50
    10-813327 SCREW
    SCREW
  • 51
    23-813328 SPACER
    SPACER
  • 52
    25-813329 O-RING
    O-RING
  • 53
    813330 FLANGE, Output
    FLANGE, Output
  • 54
    31-813331 BEARING, Tapered Roller
    BEARING, Tapered Roller
  • 55
    31-813332 BEARING, Tapered Roller (INNER)
    BEARING, Tapered Roller (INNER)
  • 56
    31-813333 BEARING, Tapered Roller (OUTER)
    BEARING, Tapered Roller (OUTER)
  • 57
    15-813334 SHIM, (.10 mm)
    SHIM, (.10 mm)
  • 57
    15-813335 SHIM, (.15 mm)
    SHIM, (.15 mm)
  • 57
    15-813336 SHIM, (.30 mm)
    SHIM, (.30 mm)
  • 57
    15-813337 SHIM, (.50 mm)
    SHIM, (.50 mm)
  • 58
    43-813338 GEAR
    (NO LONGER AVAILABLE)(1.5:1 RATIO)
    GEAR
    (NO LONGER AVAILABLE)(1.5:1 RATIO)
  • 58
    43-813341 GEAR
    (NO LONGER AVAILABLE)(2.0:1 RATIO)
    GEAR
    (NO LONGER AVAILABLE)(2.0:1 RATIO)
  • 58
    43-813344 GEAR
    (2.5:1 RATIO)
    GEAR
    (2.5:1 RATIO)
  • 59
    813339 SHAFT, Intermediate
    (NO LONGER AVAILABLE)(1.5:1 RATIO)
    SHAFT, Intermediate
    (NO LONGER AVAILABLE)(1.5:1 RATIO)
  • 59
    813342 SHAFT, Intermediate
    (NO LONGER AVAILABLE)(2.0:1 RATIO)
    SHAFT, Intermediate
    (NO LONGER AVAILABLE)(2.0:1 RATIO)
  • 59
    813345 SHAFT, Intermediate
    (2.5:1 RATIO)
    SHAFT, Intermediate
    (2.5:1 RATIO)
  • 60
    813340 SHAFT, Output
    (NO LONGER AVAILABLE)(1.5:1 RATIO)
    SHAFT, Output
    (NO LONGER AVAILABLE)(1.5:1 RATIO)
  • 60
    813343 SHAFT, Output
    (NO LONGER AVAILABLE)(2.0:1 RATIO)
    SHAFT, Output
    (NO LONGER AVAILABLE)(2.0:1 RATIO)
  • 60
    813346 SHAFT, Output
    (NO LONGER AVAILABLE)(2.5:1 RATIO)
    SHAFT, Output
    (NO LONGER AVAILABLE)(2.5:1 RATIO)
