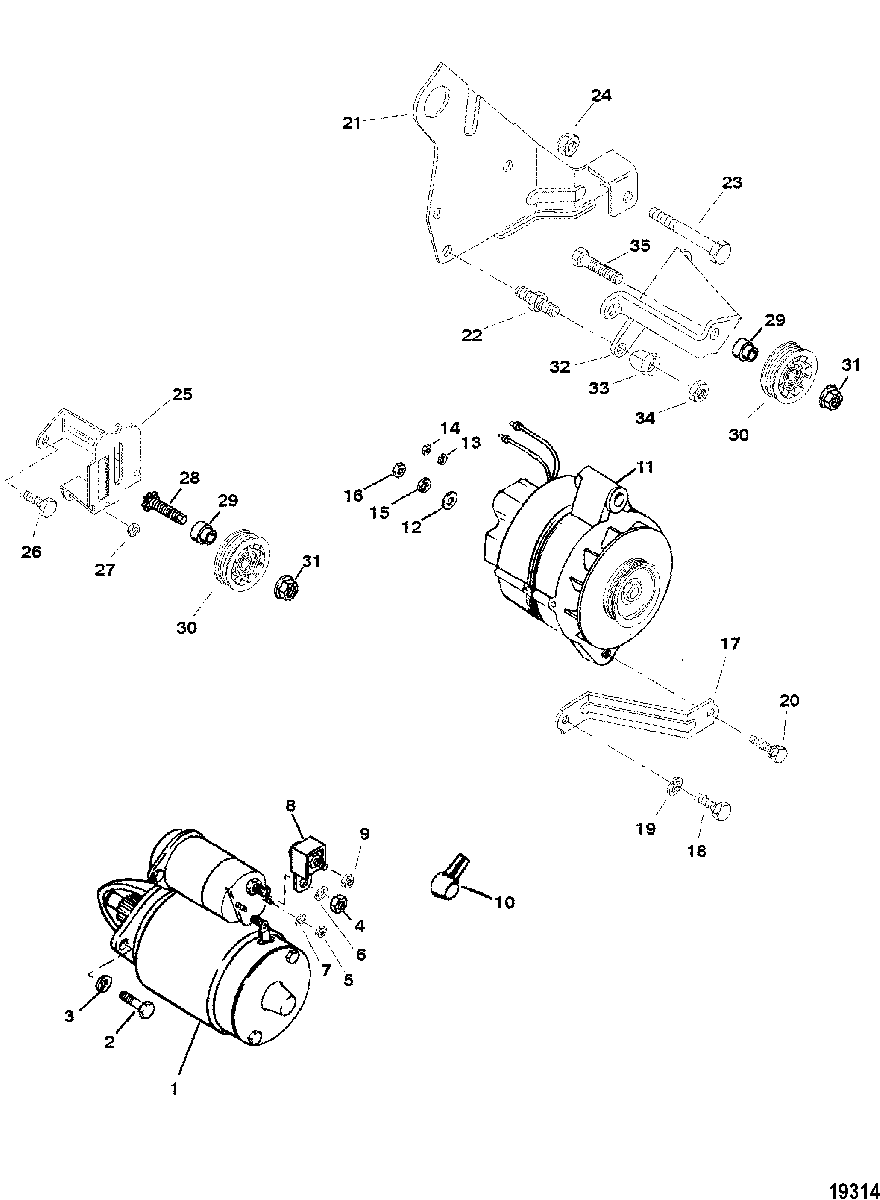

Alternator and Starter(Mando) для Mercruiser - 350 MAG MPI MIE 0L302200 THRU 0M299999

  • №
    Артикул
    Название
  • 1
    50-808011A05 STARTER MOTOR ASSEMBLY
    (SEE "STARTER MOTOR" FOR BREAKDOWN)
    STARTER MOTOR ASSEMBLY
    (SEE "STARTER MOTOR" FOR BREAKDOWN)
  • 2
    10-47462 SCREW, (.437-14 x 1.250)
    SCREW, (.437-14 x 1.250)
  • 3
    13-32993 LOCKWASHER, (.437)
    LOCKWASHER, (.437)
  • 4
    11-15874 NUT, (M10)
    NUT, (M10)
  • 5
    11-400211 NUT, (M5) Stainless Steel
    NUT, (M5) Stainless Steel
  • 6
    13-32993 LOCKWASHER, (.437)
    LOCKWASHER, (.437)
  • 7
    13-26996 LOCKWASHER, (#10) Stainless Steel
    LOCKWASHER, (#10) Stainless Steel
  • 8
    88-79023A91 FUSE ASSEMBLY, 90 Ampere
    FUSE ASSEMBLY, 90 Ampere
  • 9
    11-21825 NUT, (.250-28)
    NUT, (.250-28)
  • 10
    85-79695T BOOT, Insulator - Black
    BOOT, Insulator - Black
  • 11
    807653T ALTERNATOR ASSEMBLY
    (SEE "ALTERNATOR (MANDO)" FOR BREAKDOWN)
    ALTERNATOR ASSEMBLY
    (SEE "ALTERNATOR (MANDO)" FOR BREAKDOWN)
  • 12
    12-96457 WASHER, Phenolic (.27 x .81 x .062)
    WASHER, Phenolic (.27 x .81 x .062)
  • 13
    13-26996 LOCKWASHER, (#10) Stainless Steel
    LOCKWASHER, (#10) Stainless Steel
  • 14
    11-79989 NUT, (#10-24) Stainless Steel
    NUT, (#10-24) Stainless Steel
  • 15
    13-26992 LOCKWASHER, (.250) Stainless Steel
    LOCKWASHER, (.250) Stainless Steel
  • 16
    11-94330 NUT, (.250-20) Brass
    NUT, (.250-20) Brass
  • 17
    807750T BRACE
    BRACE
  • 18
    10-98261 SCREW, (.375-16 x .750)
    SCREW, (.375-16 x .750)
  • 19
    13-35048 LOCKWASHER, (.375)
    LOCKWASHER, (.375)
  • 20
    10-29198 SCREW AND LOCKWASHER, (.312-18 x .875)
    SCREW AND LOCKWASHER, (.312-18 x .875)
  • 21
    860370T1 BRACKET
    BRACKET
  • 22
    16-860102 STUD, (.375-16 x 1.730)
    STUD, (.375-16 x 1.730)
  • 23
    10-56743 SCREW, (.375-24 x 3.125)
    SCREW, (.375-24 x 3.125)
  • 24
    11-23161 NUT, (.375-24)
    NUT, (.375-24)
  • 25
    807767T BRACKET, Idler Adjustment
    BRACKET, Idler Adjustment
  • 26
    10-98261 SCREW, (.375-16 x .750)
    SCREW, (.375-16 x .750)
  • 27
    11-29250 NUT, (.312-24)
    NUT, (.312-24)
  • 28
    43-8M0113182 PINION STUD, (.437-20) Stainless Steel
    PINION STUD, (.437-20) Stainless Steel
  • 29
    865193 BUSHING
    BUSHING
  • 30
    807757T PULLEY ASSEMBLY, Idler - Black
    PULLEY ASSEMBLY, Idler - Black
  • 31
    11-859135 NUT, (.437-20) Brass/Nickel Plated
    NUT, (.437-20) Brass/Nickel Plated
  • 32
    807753T1 BRACKET
    BRACKET
  • 33
    12-73729 WASHER, (.390 x .546 x .190)
    WASHER, (.390 x .546 x .190)
  • 34
    11-32219 NUT, (.375-16)
    NUT, (.375-16)
  • 35
    10-816601 SCREW, (.437-20 x 1.500)
    SCREW, (.437-20 x 1.500)
