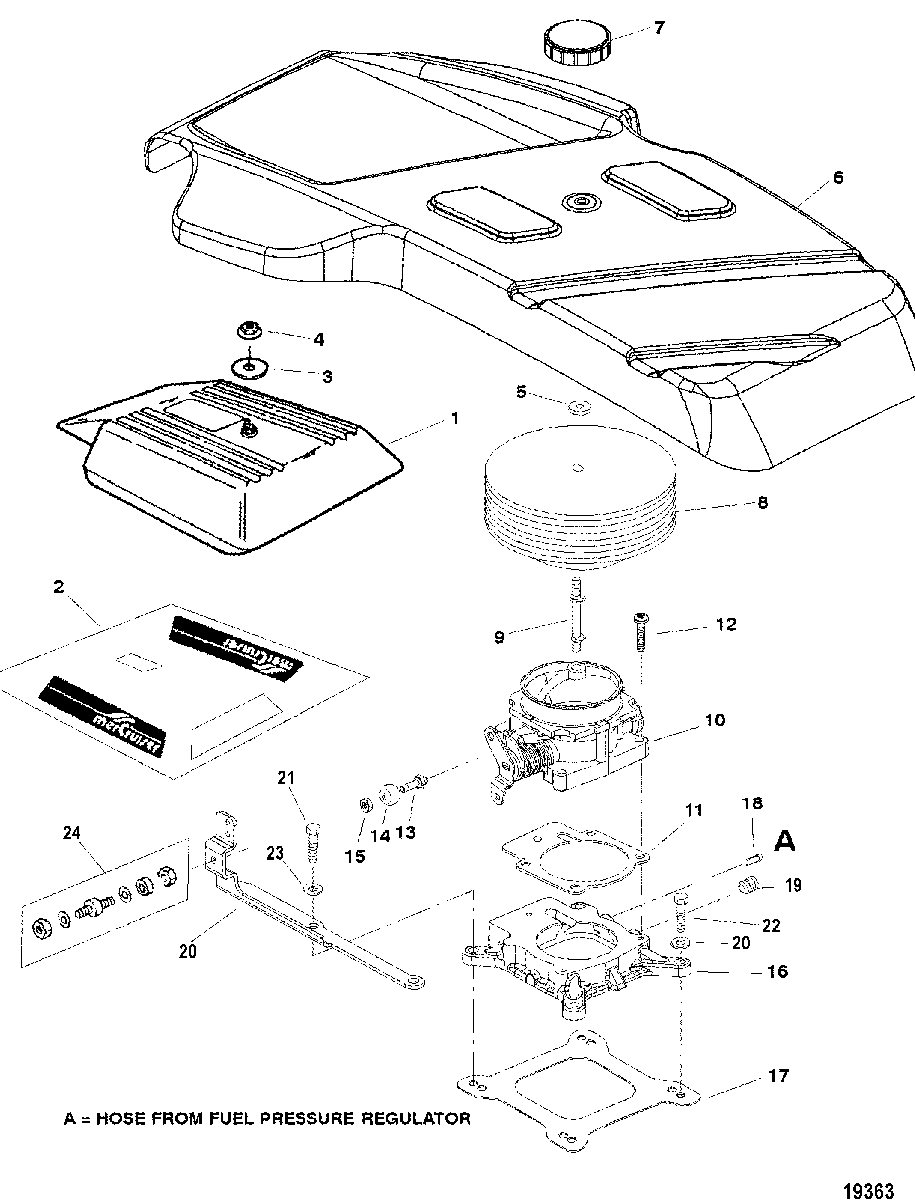

Throttle Body and Flame Arrestor для Mercruiser - 350 MAG MPI MIE 0L302200 THRU 0M299999

  • №
    Артикул
    Название
  • 1
    18484A3 COVER
    (350 MAG MPI)
    COVER
    (350 MAG MPI)
  • 2
    37-861373A2 DECAL SET
    (350 MAG MPI)
    DECAL SET
    (350 MAG MPI)
  • 3
    12-86400 WASHER
    (350 MAG MPI)
    WASHER
    (350 MAG MPI)
  • 4
    11-826709109 NUT, (.250-28) Stainless Steel
    (350 MAG MPI)
    NUT, (.250-28) Stainless Steel
    (350 MAG MPI)
  • 5
    12-26907 WASHER (5/8 IN. O.D.)
    WASHER (5/8 IN. O.D.)
  • 6
    861803A1 COVER ASSEMBLY, Engine
    (350 HORIZON)
    COVER ASSEMBLY, Engine
    (350 HORIZON)
  • 7
    11-861813 FASTENER
    (350 HORIZON)
    FASTENER
    (350 HORIZON)
  • NS
    37-858314A5 DECAL SET
    (350 HORIZON)
    DECAL SET
    (350 HORIZON)
  • 8
    861443T FLAME ARRESTOR
    FLAME ARRESTOR
  • 9
    16-8M0113181 STUD, (.250-20/.250-28 x Special)
    STUD, (.250-20/.250-28 x Special)
  • 10
    861442A1 THROTTLE BODY ASSEMBLY (90MM)
    THROTTLE BODY ASSEMBLY (90MM)
  • 11
    27-861449 GASKET
    GASKET
  • NS
    803148 SENSOR
    SENSOR
  • NS
    10-803150 SCREW
    SCREW
  • NS
    26-803152 SEAL, TPS
    SEAL, TPS
  • NS
    803149 VALVE, IAC
    VALVE, IAC
  • NS
    10-803151 SCREW, IAC
    SCREW, IAC
  • 12
    10-807054 SCREW, (.250-20 x 1.00)
    SCREW, (.250-20 x 1.00)
  • 13
    16-807133 STUD, (.250 x 1.750)
    STUD, (.250 x 1.750)
  • 14
    12-20533 WASHER
    WASHER
  • 15
    11-826709109 NUT, (.250-28) Stainless Steel
    NUT, (.250-28) Stainless Steel
  • 16
    863210A1 PLATE ASSEMBLY, TBI Adaptor (90MM)
    PLATE ASSEMBLY, TBI Adaptor (90MM)
  • 17
    27-41610 GASKET
    GASKET
  • 18
    22-805598 FITTING, (.1875) Barb
    FITTING, (.1875) Barb
  • 19
    22-73379 PLUG, (.250-18)
    PLUG, (.250-18)
  • 20
    861388 BRACKET, Throttle Cable
    BRACKET, Throttle Cable
  • 21
    10-74824 SCREW, (.312-18 x 1.250)
    SCREW, (.312-18 x 1.250)
  • 22
    10-860132 SCREW, (.312-18 x 1.250)
    SCREW, (.312-18 x 1.250)
  • 23
    12-20084 WASHER, (.328 x .562 x .062)
    WASHER, (.328 x .562 x .062)
  • 24
    16-97477A3 STUD KIT
    STUD KIT
  • -
    27-75611A98 GASKET SET, Engine Overhaul
    GASKET SET, Engine Overhaul
