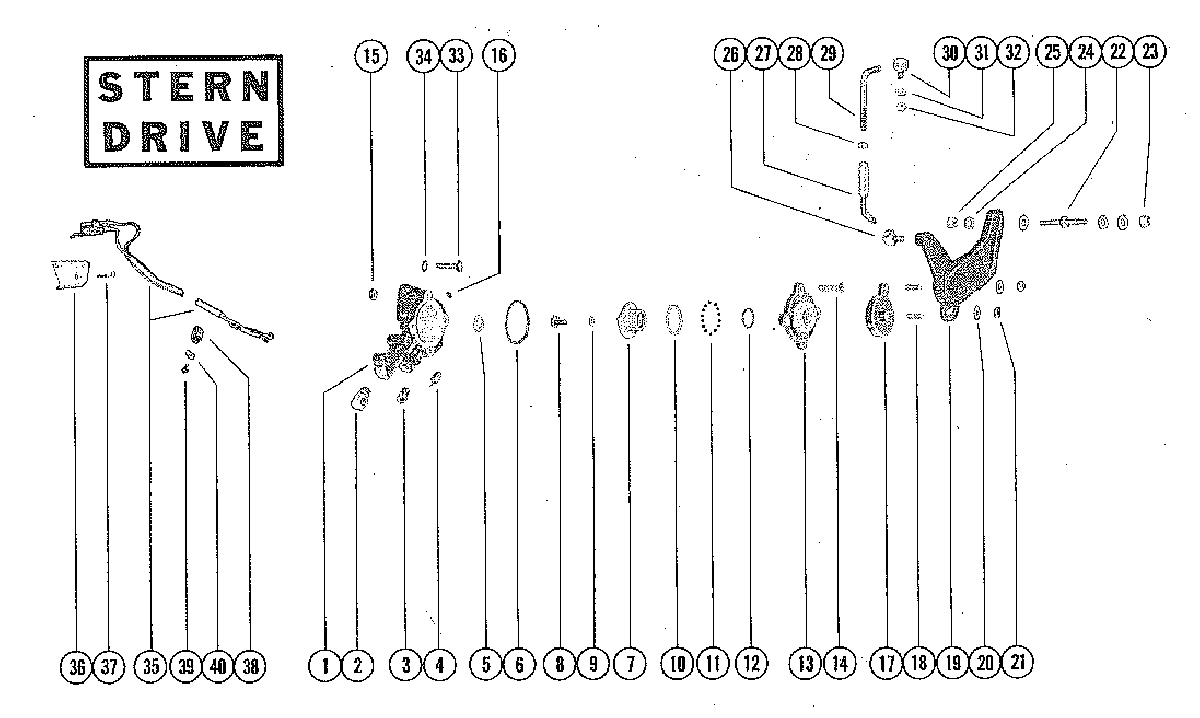

REVERSE LOCK VALVE ASSEMBLY AND SHIFT LEVER для Mercruiser - 270 MIE GM 350 V-8 1969-1972 2851074 THRU 3077735
-
№АртикулНазвание
-
176812T4 REVERSE LOCK VALVE ASSEMBLYREVERSE LOCK VALVE ASSEMBLY
-
222-45794 ELBOW, HYDRAULIC TRIM HOSE TO REVERSE LOCK VALVEELBOW, HYDRAULIC TRIM HOSE TO REVERSE LOCK VALVE
-
322-48167 CONNECTOR, ELBOWCONNECTOR, ELBOW
-
445709 FOLLOWER, CAMFOLLOWER, CAM
-
613-25906 WASHER, WAVE - REVERSE LOCK VALVEWASHER, WAVE - REVERSE LOCK VALVE
-
625-457101 "O" RING, REVERSE LOCK VALVE"O" RING, REVERSE LOCK VALVE
-
745526 CAM, REVERSE LOCK VALVECAM, REVERSE LOCK VALVE
-
810-46736 SCREW, CAM TO CAM LEVER (1/2")SCREW, CAM TO CAM LEVER (1/2")
-
913-26996 LOCKWASHER, CAM SCREWLOCKWASHER, CAM SCREW
-
1012-45713 WASHER, RETAINING - BALL TO VALVE COVERWASHER, RETAINING - BALL TO VALVE COVER
-
1130-45712 BALL, VALVE COVERBALL, VALVE COVER
-
1225-45711 "O" RING, VALVE COVER"O" RING, VALVE COVER
-
1345528A2 COVER, REVERSE LOCK VALVECOVER, REVERSE LOCK VALVE
-
1410-45716 SCREW, COVER TO REVERSE LOCK VALVE (15/16")SCREW, COVER TO REVERSE LOCK VALVE (15/16")
-
1511-20110 NUT, COVER SCREWNUT, COVER SCREW
-
1622-390721 PLUG, PIPE - REVERSE LOCK VALVEPLUG, PIPE - REVERSE LOCK VALVE
-
1746732A1 LEVER ASSEMBLY, CAMLEVER ASSEMBLY, CAM
-
1816-45715 STUD, SHIFT CONTROL LEVER TO CAM LEVER (23/32")STUD, SHIFT CONTROL LEVER TO CAM LEVER (23/32")
-
1947346T LEVER, SHIFT - CAM LEVERLEVER, SHIFT - CAM LEVER
-
2012-21273 WASHER, CAM LEVER STUDWASHER, CAM LEVER STUD
-
2111-20110 NUT, SHIFT CONTROL LEVER TO CAM LEVER STUDNUT, SHIFT CONTROL LEVER TO CAM LEVER STUD
-
2216-34069 STUD, SHIFT CABLE TO SHIFT LEVER (2 1/4")STUD, SHIFT CABLE TO SHIFT LEVER (2 1/4")
-
2311-8267089 NUT, SHIFT CABLE STUDNUT, SHIFT CABLE STUD
-
2412-39143 WASHER, SHIFT CABLE STUDWASHER, SHIFT CABLE STUD
-
2511-8267089 NUT, SHIFT CABKE STUD TO SHIFT LEVERNUT, SHIFT CABKE STUD TO SHIFT LEVER
-
2627947 SWIVEL, LINK ROD TO SHIFT LEVERSWIVEL, LINK ROD TO SHIFT LEVER
-
2725996A1 LINK ROD ASSEMBLYLINK ROD ASSEMBLY
-
2811-25168 NUT, JAM - LINK RODNUT, JAM - LINK ROD
-
2938982 LINK ROD, SHIFT LEVERLINK ROD, SHIFT LEVER
-
3047459 SWIVEL, LINK ROD TO TRANSMISSION SHIFT LEVERSWIVEL, LINK ROD TO TRANSMISSION SHIFT LEVER
-
3112-30164 WASHER, LINK ROD SWIVELWASHER, LINK ROD SWIVEL
-
3211-20110 NUT, LINK ROD SWIVELNUT, LINK ROD SWIVEL
-
3310-25299 SCREW, REVERSE LOCK VALVE TO SHIFT SUPPORT BRACKET (3/4")SCREW, REVERSE LOCK VALVE TO SHIFT SUPPORT BRACKET (3/4")
-
3413-21804 LOCKWASHER, REVERSE LOCK VALVE SCREWLOCKWASHER, REVERSE LOCK VALVE SCREW
-
3549645A1 SWITCH ASSEMBLY, CUT-OUT - REVERSE LOCK VALVESWITCH ASSEMBLY, CUT-OUT - REVERSE LOCK VALVE
-
3645717 SHIELD, CUT-OUT SWITCHSHIELD, CUT-OUT SWITCH
-
3710-36003 SCREW, SHIELD AND SWITCH TO REVERSE LOCK VALVE (3/4")SCREW, SHIELD AND SWITCH TO REVERSE LOCK VALVE (3/4")
-
3854-24836 CLIP, CUT-OUT SWITCH LEAD TO TRANSOM PLATECLIP, CUT-OUT SWITCH LEAD TO TRANSOM PLATE
-
3910-21643 SCREW, CUT-OUT SWITCH LEAD CLIP ATTACHING (1/2")SCREW, CUT-OUT SWITCH LEAD CLIP ATTACHING (1/2")
-
408M0084613 "D" WASHER, CLIP ATTACHING SCREW"D" WASHER, CLIP ATTACHING SCREW
