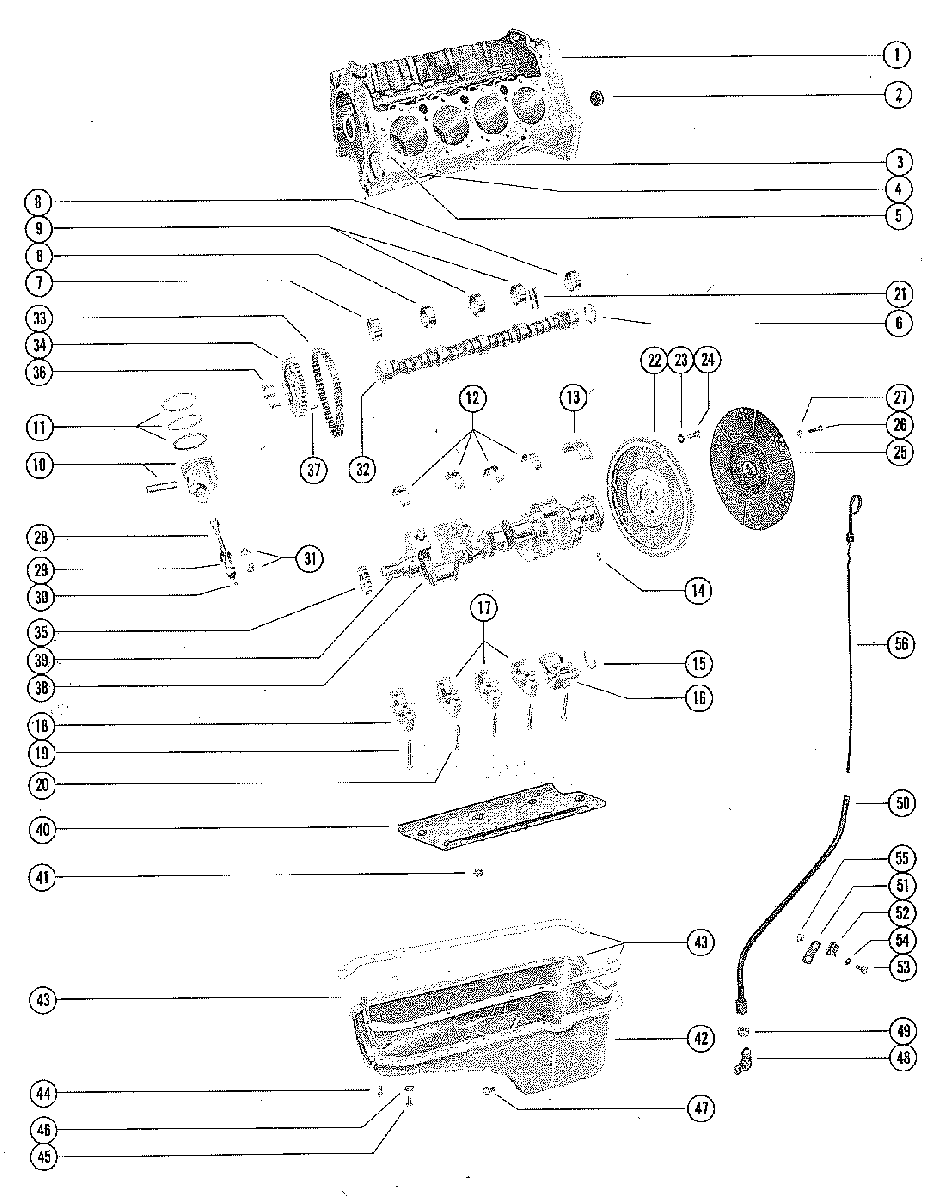

CYLINDER BLOCK, PISTONS AND CRANKSHAFT для Mercruiser - 270 MIE GM 350 V-8 1969-1972 2851074 THRU 3077735

  • №
    Артикул
    Название
  • 1
    841-4301 CYLINDER BLOCK ASSEMBLY
    CYLINDER BLOCK ASSEMBLY
  • 2
    19-35308 PLUG, EXPANSION - CYLINDER BLOCK (1 1/4")
    PLUG, EXPANSION - CYLINDER BLOCK (1 1/4")
  • 3
    22-36382 PLUG, WATER DRAIN - CYLINDER BLOCK
    PLUG, WATER DRAIN - CYLINDER BLOCK
  • 4
    19-34270 PLUG, EXPANSION - CYLINDER BLOCK (1 5/8" DIA.)
    PLUG, EXPANSION - CYLINDER BLOCK (1 5/8" DIA.)
  • 4
    19-45670 PLUG, EXPANSION - CYLINDER BLOCK (1/2" DIA.)
    PLUG, EXPANSION - CYLINDER BLOCK (1/2" DIA.)
  • 4
    22-32561 PLUG, PIPE - CYLINDER BLOCK (1/4"DIA.)
    PLUG, PIPE - CYLINDER BLOCK (1/4"DIA.)
  • 5
    17-35465 PIN, DOWEL - CYLINDER BLOCK TO CYLINDER HEAD (5/16"DIA.)
    PIN, DOWEL - CYLINDER BLOCK TO CYLINDER HEAD (5/16"DIA.)
  • 6
    22-72640 PLUG, EXPANSION - CAMSHAFT BEARING HOLE
    PLUG, EXPANSION - CAMSHAFT BEARING HOLE
  • 7
    23-85674 BEARING UNIT, CAMSHAFT (FRONT)
    BEARING UNIT, CAMSHAFT (FRONT)
  • 8
    23-85674 BEARING UNIT, CAMSHAFT (FRONT INTERMEDIATE AND REAR)
    BEARING UNIT, CAMSHAFT (FRONT INTERMEDIATE AND REAR)
  • 9
    23-85674 BEARING UNIT, CAMSHAFT (CENTER AND REAR INTERMEDIATE)
    BEARING UNIT, CAMSHAFT (CENTER AND REAR INTERMEDIATE)
  • 10
    735-4303 PISTON AND PISTON PIN ASSEMBLY (.001 O.S.)
    -USE STANDARD RING
    PISTON AND PISTON PIN ASSEMBLY (.001 O.S.)
    -USE STANDARD RING
  • 10
    735-4304 PISTON AND PISTON PIN ASSEMBLY (.020 O.S.)
    PISTON AND PISTON PIN ASSEMBLY (.020 O.S.)
  • 10
    735-4305 PISTON AND PISTON PIN ASSEMBLY (.030 O.S.)
    PISTON AND PISTON PIN ASSEMBLY (.030 O.S.)
  • 11
    39-17464 RING, PISTON - 8 SETS (STANDARD)
    RING, PISTON - 8 SETS (STANDARD)
  • 11
    39-66217 RING, PISTON - 8 SETS (.020 O.S.)
    RING, PISTON - 8 SETS (.020 O.S.)
  • 11
    39-17465 RING, PISTON - 8 SETS (.030 O.S.)
    RING, PISTON - 8 SETS (.030 O.S.)
  • 12
    23-818465 BEARING UNIT, CRANKSHAFT MAIN (STANDARD)
    BEARING UNIT, CRANKSHAFT MAIN (STANDARD)
  • 12
    23-818466 BEARING UNIT, CRANKSHAFT MAIN (.001 U.S.)
    BEARING UNIT, CRANKSHAFT MAIN (.001 U.S.)
  • 12
    23-52207 BEARING UNIT, CRANKSHAFT MAIN (.002 U.S.)
    BEARING UNIT, CRANKSHAFT MAIN (.002 U.S.)
  • 12
    23-818467 BEARING UNIT, CRANKSHAFT MAIN (.010 U.S.)
    BEARING UNIT, CRANKSHAFT MAIN (.010 U.S.)
  • 12
    23-818468 BEARING UNIT, CRANKSHAFT MAIN (.020 U.S.)
    BEARING UNIT, CRANKSHAFT MAIN (.020 U.S.)
  • 13
    23-818465 BEARING UNIT, CRANKSHAFT MAIN - REAR (STANDARD)
    BEARING UNIT, CRANKSHAFT MAIN - REAR (STANDARD)
  • 13
    23-818466 BEARING UNIT, CRANKSHAFT MAIN - REAR (.001 U.S.)
    BEARING UNIT, CRANKSHAFT MAIN - REAR (.001 U.S.)
  • 13
    23-52213 BEARING UNIT, CRANKSHAFT MAIN - REAR (.002 U.S.)
    BEARING UNIT, CRANKSHAFT MAIN - REAR (.002 U.S.)
  • 13
    23-818467 BEARING UNIT, CRANKSHAFT MAIN - REAR (.010 U.S.)
    BEARING UNIT, CRANKSHAFT MAIN - REAR (.010 U.S.)
  • 13
    23-818468 BEARING UNIT, CRANKSHAFT MAIN - REAR (.020 U.S.)
    BEARING UNIT, CRANKSHAFT MAIN - REAR (.020 U.S.)
  • 14
    17-24813 PIN, DOWEL - REAR CRANKSHAFT BEARING CAP (1/4" DIA.)
    PIN, DOWEL - REAR CRANKSHAFT BEARING CAP (1/4" DIA.)
  • 15
    26-814622 OIL SEAL, REAR CRANKSHAFT CRANKSHAFT BEARING CAP
    (LEFT HAND CRANKSHAFT)
    OIL SEAL, REAR CRANKSHAFT CRANKSHAFT BEARING CAP
    (LEFT HAND CRANKSHAFT)
  • 15
    26-35313 OIL SEAL, REAR CRANKSHAFT CRANKSHAFT BEARING CAP
    (RIGHT HAND CRANKSHAFT)
    OIL SEAL, REAR CRANKSHAFT CRANKSHAFT BEARING CAP
    (RIGHT HAND CRANKSHAFT)
  • 16
    52217 CAP, REAR - CRANKSHAFT BEARING
    CAP, REAR - CRANKSHAFT BEARING
  • 17
    58213 CAP, INTERMEDIATE - CRANKSHAFT BEARING
    CAP, INTERMEDIATE - CRANKSHAFT BEARING
  • 18
    54789 CAP, FRONT - CRANKSHAFT BEARING
    CAP, FRONT - CRANKSHAFT BEARING
  • 19
    10-54788 BOLT, CRANKSHAFT BEARING CAP TO CYLINDER BLOCK (2 31/32")
    BOLT, CRANKSHAFT BEARING CAP TO CYLINDER BLOCK (2 31/32")
  • 19
    8M0102366 BOLT, CRANKSHAFT BEARING CAP TO CYLINDER BLOCK (2 1/2")
    BOLT, CRANKSHAFT BEARING CAP TO CYLINDER BLOCK (2 1/2")
  • 20
    16-54790 STUD, OIL PAN BAFFLE ATTACHING
    STUD, OIL PAN BAFFLE ATTACHING
  • 20
    17-24813 PIN, DOWEL - CRANKCASE FRONT END COVER (1/4" DIA.)
    PIN, DOWEL - CRANKCASE FRONT END COVER (1/4" DIA.)
  • 21
    72638 LIFTER, HYDRAULIC VALVE - TAPPET
    LIFTER, HYDRAULIC VALVE - TAPPET
  • 22
    230-4614 FLYWHEEL ASSEMBLY
    FLYWHEEL ASSEMBLY
  • 23
    13-39131 LOCKWASHER, FLYWHEEL SCREW
    LOCKWASHER, FLYWHEEL SCREW
  • 24
    10-845757 SCREW, FLYWHEEL TO CRANKSHAFT
    SCREW, FLYWHEEL TO CRANKSHAFT
  • 25
    47608A1 DRIVE PLATE, FLYWHEEL
    DRIVE PLATE, FLYWHEEL
  • 26
    10-35091 SCREW, DRIVE PLATE TO FLYWHEEL
    SCREW, DRIVE PLATE TO FLYWHEEL
  • 27
    13-35048 LOCKWASHER, DRIVE PLATE SCREW
    LOCKWASHER, DRIVE PLATE SCREW
  • 28
    614-8164T CONNECTING ROD ASSEMBLY
    CONNECTING ROD ASSEMBLY
  • 29
    10-85802 BOLT, CONNECTING ROD CAP
    BOLT, CONNECTING ROD CAP
  • 30
    11-37493 NUT, CONNECTING ROD CAP BOLT
    NUT, CONNECTING ROD CAP BOLT
  • 31
    23-85701 BEARING SET (4 PAIR), CONNECTING ROD (STANDARD)
    BEARING SET (4 PAIR), CONNECTING ROD (STANDARD)
  • 31
    23-85702 BEARING UNIT (PAIR), CONNECTING ROD (.001 U.S.)
    BEARING UNIT (PAIR), CONNECTING ROD (.001 U.S.)
  • 31
    23-85703 BEARING UNIT (PAIR), CONNECTING ROD (.002 U.S.)
    BEARING UNIT (PAIR), CONNECTING ROD (.002 U.S.)
  • 31
    23-85704 BEARING UNIT (PAIR), CONNECTING ROD (.010 U.S.)
    BEARING UNIT (PAIR), CONNECTING ROD (.010 U.S.)
  • 31
    23-85705 BEARING UNIT (PAIR), CONNECTING ROD (.020 U.S.)
    BEARING UNIT (PAIR), CONNECTING ROD (.020 U.S.)
  • 32
    431-3355 CAMSHAFT (LEFT HAND CRANKSHAFT ROTATION)
    CAMSHAFT (LEFT HAND CRANKSHAFT ROTATION)
  • 32
    431-884035 CAMSHAFT (RIGHT HAND CRANKSHAFT ROTATION)
    CAMSHAFT (RIGHT HAND CRANKSHAFT ROTATION)
  • 33
    35378 CHAIN, CAMSHAFT TIMING
    LEFT HAND CRANKSHAFT ROTATION
    CHAIN, CAMSHAFT TIMING
    LEFT HAND CRANKSHAFT ROTATION
  • 34
    17161A1 SPROCKET, CAMSHAFT TIMING (44 TEETH)
    LEFT HAND CRANKSHAFT ROTATION
    SPROCKET, CAMSHAFT TIMING (44 TEETH)
    LEFT HAND CRANKSHAFT ROTATION
  • 35
    17161A1 SPROCKET, CRANKSHAFT TIMING (22 TEETH)
    LEFT HAND CRANKSHAFT ROTATION
    SPROCKET, CRANKSHAFT TIMING (22 TEETH)
    LEFT HAND CRANKSHAFT ROTATION
  • 34
    43-14324 GEAR, CAMSHAFT TIMING (58 TEETH)
    RIGHT HAND CRANKSHAFT ROTATION
    GEAR, CAMSHAFT TIMING (58 TEETH)
    RIGHT HAND CRANKSHAFT ROTATION
  • 35
    43-14324 GEAR, CRANKSHSFT TIMING (29 TEETH)
    RIGHT HAND CRANKSHAFT ROTATION
    GEAR, CRANKSHSFT TIMING (29 TEETH)
    RIGHT HAND CRANKSHAFT ROTATION
  • 36
    10-34505 BOLT, CAMSHAFT TIMING SPROCKET (3/4")
    BOLT, CAMSHAFT TIMING SPROCKET (3/4")
  • 36
    12-848136 WASHER, CAMSHAFT TIMING SPROCKET BOLT
    WASHER, CAMSHAFT TIMING SPROCKET BOLT
  • 37
    17-843378 PIN, DOWEL - CAMSHAFT TIMING SPROCKET (1/4" DIA.)
    PIN, DOWEL - CAMSHAFT TIMING SPROCKET (1/4" DIA.)
  • 38
    429-4302 CRANKSHAFT
    CRANKSHAFT
  • 39
    28-34466 KEY, CRANKSHAFT PULLEY AND BALANCER
    KEY, CRANKSHAFT PULLEY AND BALANCER
  • 40
    52198 BAFFLE, OIL PAN (CYLINDER BLOCK)
    BAFFLE, OIL PAN (CYLINDER BLOCK)
  • 41
    11-37500 NUT, BAFFLE TO CYLINDER BLOCK STUD
    NUT, BAFFLE TO CYLINDER BLOCK STUD
  • 42
    87758A1 OIL PAN
    OIL PAN
  • 43
    27-52236 GASKET SET, OIL PAN
    GASKET SET, OIL PAN
  • 44
    10-55714 SCREW, OIL PAN TO CYLINDER BLOCK (5/16 - 18 x 7/8)
    SCREW, OIL PAN TO CYLINDER BLOCK (5/16 - 18 x 7/8)
  • 45
    10-55715 SCREW, OIL PAN TO CYLINDER BLOCK (1/4 - 20 x 7/8)
    SCREW, OIL PAN TO CYLINDER BLOCK (1/4 - 20 x 7/8)
  • 46
    12-46897 WASHER, OIL PAN SCREW
    WASHER, OIL PAN SCREW
  • 47
    22-36373 PLUG, PIPE - OIL PAN DRAIN
    PLUG, PIPE - OIL PAN DRAIN
  • 48
    22-47625 ELBOW, OIL LEVEL GAUGE TUBE TL OIL PAN
    ELBOW, OIL LEVEL GAUGE TUBE TL OIL PAN
  • 49
    11-47626 NUT, OIL LEVEL GAUGE TUBE
    NUT, OIL LEVEL GAUGE TUBE
  • 50
    86890A2 TUBE, OIL LEVEL GAUGE
    TUBE, OIL LEVEL GAUGE
  • 51
    48133 BRACKET, OIL LEVEL GAUGE TUBE CLIP
    BRACKET, OIL LEVEL GAUGE TUBE CLIP
  • 52
    54-475451 CLIP, OIL LEVEL GAUGE TUBE
    CLIP, OIL LEVEL GAUGE TUBE
  • 53
    10-33524 SCREW, OIL LEVER GAUGE TUBE CLIP TO BRACKET (5/8")
    SCREW, OIL LEVER GAUGE TUBE CLIP TO BRACKET (5/8")
  • 54
    13-39107 LOCKWASHER, OIL LEVEL GAUGE TUBE CLIP SCREW
    LOCKWASHER, OIL LEVEL GAUGE TUBE CLIP SCREW
  • 55
    11-22053 NUT, OIL LEVEL GAUGE TUBE SCREW
    NUT, OIL LEVEL GAUGE TUBE SCREW
  • 56
    86194219 GAUGE, OIL LEVEL (DIPSTICK)-STERN DRIVE
    GAUGE, OIL LEVEL (DIPSTICK)-STERN DRIVE
  • 56
    48394 GAUGE, OIL LEVEL (DIPSTICK)-STERN DRIVE
    GAUGE, OIL LEVEL (DIPSTICK)-STERN DRIVE
