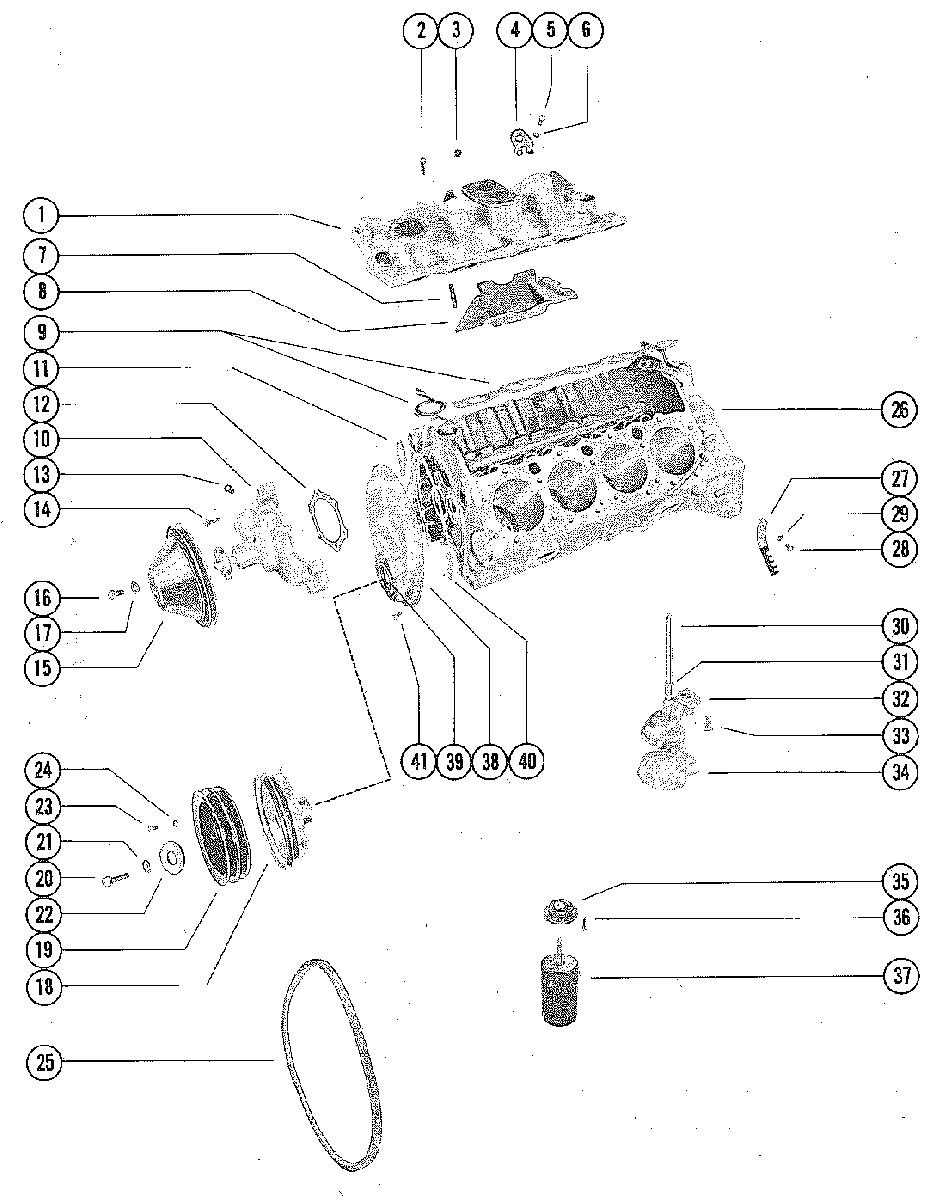

INTAKE MANIFOLD AND OIL PUMP для Mercruiser - 270 MIE GM 350 V-8 1969-1972 2851074 THRU 3077735
-
№АртикулНазвание
-
154794 INTAKE MANIFOLDINTAKE MANIFOLD
-
210-26487 BOLT, INTAKE MANIFOLD TO CYLINDER BLOCK (1 1/8")BOLT, INTAKE MANIFOLD TO CYLINDER BLOCK (1 1/8")
-
210-52200 BOLT, INTAKE MANIFOLD TO CYLINDER BLOCK (1 1/2")BOLT, INTAKE MANIFOLD TO CYLINDER BLOCK (1 1/2")
-
322-48336 PLUG, PIPE - INTAKE MANIFOLDPLUG, PIPE - INTAKE MANIFOLD
-
454-47512 EYE, LIFTINGEYE, LIFTING
-
510-34354 SCREW, LIFTING EYE ATTACHING (1 1/2")SCREW, LIFTING EYE ATTACHING (1 1/2")
-
613-35048 LOCKWASHER, LIFTING EYE SCREWLOCKWASHER, LIFTING EYE SCREW
-
716-52228 STUD, GUARD TO INTAKE MANIFOLDSTUD, GUARD TO INTAKE MANIFOLD
-
854795 GUARD, INTAKE MANIFOLDGUARD, INTAKE MANIFOLD
-
927-54792 GASKET SET, INTAKE MANIFOLDGASKET SET, INTAKE MANIFOLD
-
1046-8M0113734 WATER PUMP ASSEMBLYWATER PUMP ASSEMBLY
-
1127-34897 GASKET, WATER PUMP MOUNTINGGASKET, WATER PUMP MOUNTING
-
1227-35380 GASKET, WATER PUMP BACKING PLATEGASKET, WATER PUMP BACKING PLATE
-
1322-48336 PLUG, PIPE - WATER PUMPPLUG, PIPE - WATER PUMP
-
1410-48424 SCREW, WATER PUMP TO CYLINDER BLOCK (1 5/8")SCREW, WATER PUMP TO CYLINDER BLOCK (1 5/8")
-
1410-47688 SCREW, WATER PUMP TO CYLINDER BLOCK (2 3/4")SCREW, WATER PUMP TO CYLINDER BLOCK (2 3/4")
-
1552349 PULLEY, WATER PUMPPULLEY, WATER PUMP
-
1610-47277 SCREW, PULLEY TO WATER PUMP (3/4")SCREW, PULLEY TO WATER PUMP (3/4")
-
1713-39107 LOCKWASHER, WATER PUMP PULLEY SCREWLOCKWASHER, WATER PUMP PULLEY SCREW
-
18FI1100847 BALANCER, HARMONIC - CRANKSHAFTBALANCER, HARMONIC - CRANKSHAFT
-
1933863T PULLEY, HARMONIC BALANCERPULLEY, HARMONIC BALANCER
-
2010-34281 BOLT, PULLEY AND HARMONIC BALANCER TO CRANKSHAFT (2")BOLT, PULLEY AND HARMONIC BALANCER TO CRANKSHAFT (2")
-
2113-39131 LOCKWASHER, PULLEY AND HARMONIC BALANCER BOLTLOCKWASHER, PULLEY AND HARMONIC BALANCER BOLT
-
2212-35332001 WASHER, PULLEY AND HARMONIC BALANCER BOLTWASHER, PULLEY AND HARMONIC BALANCER BOLT
-
2310-34352 BOLT, CRANKSHAFT PULLEY TO HARMONIC BALANCER (7/8")BOLT, CRANKSHAFT PULLEY TO HARMONIC BALANCER (7/8")
-
2413-35048 LOCKWASHER, CRANKSHAFT PULLEY BOLTLOCKWASHER, CRANKSHAFT PULLEY BOLT
-
2557-48120Q1 BELT, ALTERNATOR DRIVE (46")BELT, ALTERNATOR DRIVE (46")
-
26841-4301 CYLINDER BLOCK ASSEMBLY (SEE F6 FOR PARTS BREAKDOWN)CYLINDER BLOCK ASSEMBLY (SEE F6 FOR PARTS BREAKDOWN)
-
2735365 SUPPORT, SPARK PLUG LEAD WIRESUPPORT, SPARK PLUG LEAD WIRE
-
2810-8M0040582 SCREW, LEAD WIRE SUPPORT TO CYLINDER BLOCK (1/2")SCREW, LEAD WIRE SUPPORT TO CYLINDER BLOCK (1/2")
-
2913-35367 LOCKWASHER, LEAD WIRE SUPPORT SCREWLOCKWASHER, LEAD WIRE SUPPORT SCREW
-
3036184 SHAFT, OIL PUMP TO DISRIBUTORSHAFT, OIL PUMP TO DISRIBUTOR
-
3123-36183 RETAINER, OIL PUMP SHAFTRETAINER, OIL PUMP SHAFT
-
3217617 OIL PUMP ASSEMBLYOIL PUMP ASSEMBLY
-
3310-48333 BOLT, OIL PUMP TO CYLINDER BLOCK (2")BOLT, OIL PUMP TO CYLINDER BLOCK (2")
-
3435354 SCREEN ASSEMBLY, OIL PUMPSCREEN ASSEMBLY, OIL PUMP
-
3571920 FILTER VALVE ASSEMBLY
ENGINE WITH OIL FILTER ON CYLINDER BLOCKFILTER VALVE ASSEMBLY
ENGINE WITH OIL FILTER ON CYLINDER BLOCK -
3610-36404 SCREW, FILTER VALVE TO CYLINDER BLOCK
ENGINE WITH OIL FILTER ON CYLINDER BLOCKSCREW, FILTER VALVE TO CYLINDER BLOCK
ENGINE WITH OIL FILTER ON CYLINDER BLOCK -
3554785 ADAPTOR ASSEMBLY, OIL FILTER BY-PASS
ENGINE WITH OIL FILTER ON ELECTRIC PANELADAPTOR ASSEMBLY, OIL FILTER BY-PASS
ENGINE WITH OIL FILTER ON ELECTRIC PANEL -
3610-54786 SCREW, ADAPTOR TO CYLINDER BLOCK
ENGINE WITH OIL FILTER ON ELECTRIC PANELSCREW, ADAPTOR TO CYLINDER BLOCK
ENGINE WITH OIL FILTER ON ELECTRIC PANEL -
3735-866340Q03 OIL FILTER ASSEMBLY (STERN DRIVE ) - NOT AS SHOWNOIL FILTER ASSEMBLY (STERN DRIVE ) - NOT AS SHOWN
-
388M0127828 COVER ASSEMBLY, CRANKCASE FRONT END (STANDARD ROTATION)COVER ASSEMBLY, CRANKCASE FRONT END (STANDARD ROTATION)
-
388M0127828 COVER ASSEMBLY, CRANKCASE FRONT END (OPPOSITE ROTATION)COVER ASSEMBLY, CRANKCASE FRONT END (OPPOSITE ROTATION)
-
3926-97335 OIL SEAL, CRANKCASE FRONT END COVEROIL SEAL, CRANKCASE FRONT END COVER
-
4027-14250 GASKET, CRANKCASE FRONT END COVERGASKET, CRANKCASE FRONT END COVER
-
4110-8M0040582 SCREW, CRANKCASE FRONT END COVER TO CYLINDER BLOCK (7/16")SCREW, CRANKCASE FRONT END COVER TO CYLINDER BLOCK (7/16")
