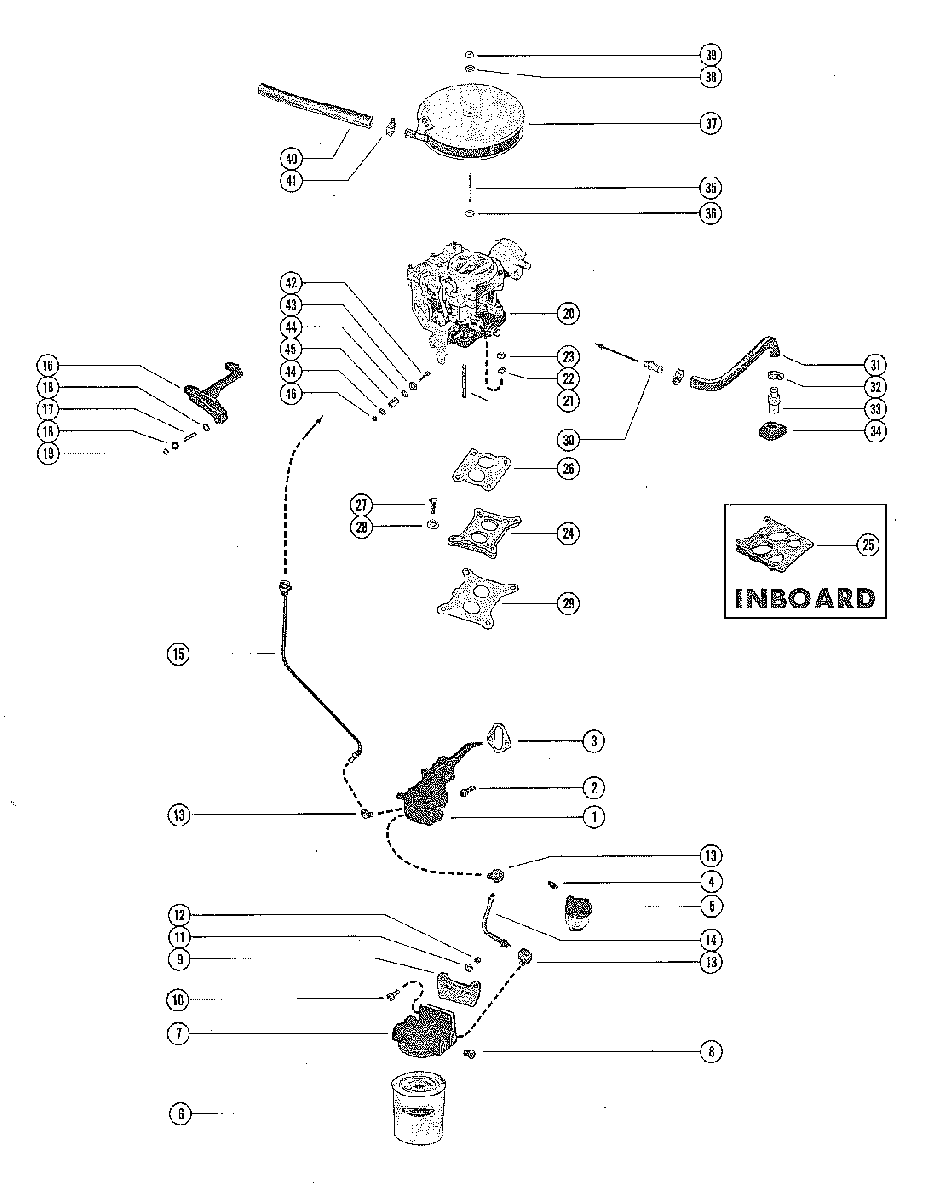

FUEL PUMP, FUEL FILTER AND CARBURETOR для Mercruiser - 233 MIE FORD 351 V-8 1975-1976 4173000 THRU 4775784
-
№АртикулНазвание
-
162092T FUEL PUMP ASSEMBLYFUEL PUMP ASSEMBLY
-
210-56882 SCREW, FUEL PUMP TO CYLINDER BLOCK (1 1/2")SCREW, FUEL PUMP TO CYLINDER BLOCK (1 1/2")
-
327-34213 GASKET, FUEL PUMPGASKET, FUEL PUMP
-
432778T NIPPLE, SIGHT GLASS TO FUEL PUMPNIPPLE, SIGHT GLASS TO FUEL PUMP
-
522-39072A1 SIGHT GLASSSIGHT GLASS
-
635-802893Q01 FUEL FILTERFUEL FILTER
-
789876A3 BASE, FUEL FILTERBASE, FUEL FILTER
-
822-36382 PLUG, PIPE- FUEL FILTER BASEPLUG, PIPE- FUEL FILTER BASE
-
977453 BRACKET, MOUNTING - FUEL FILTERBRACKET, MOUNTING - FUEL FILTER
-
1010-20639 SCREW, FUEL FILTER TO MOUNTING BRACKET (1 1/8")SCREW, FUEL FILTER TO MOUNTING BRACKET (1 1/8")
-
1112-20084 WASHER, FUEL FILTER SCREWWASHER, FUEL FILTER SCREW
-
1211-82670911 NUT, FUEL FILTER SCREWNUT, FUEL FILTER SCREW
-
1322-33821 FITTING, FUEL LINE TO FUEL PUMP, FUEL FILTER AND CARBURETORFITTING, FUEL LINE TO FUEL PUMP, FUEL FILTER AND CARBURETOR
-
1432-64967 FUEL LINE, FUEL FILTER TO FUEL PUMP (STEEL TUBING)FUEL LINE, FUEL FILTER TO FUEL PUMP (STEEL TUBING)
-
1532-71363 FUEL LINE, PUMP TO CARBURETOR (STERN DRIVE & V-DRIVE)FUEL LINE, PUMP TO CARBURETOR (STERN DRIVE & V-DRIVE)
-
1532-71364T FUEL LINE, PUMP TO CARB. (STEEL)-INBOARDFUEL LINE, PUMP TO CARB. (STEEL)-INBOARD
-
16805489T BRACKET, MOUNTING-THROTTLE CABLEBRACKET, MOUNTING-THROTTLE CABLE
-
1716-38525 STUB, CABLE TO BRACKET (1 5/8")STUB, CABLE TO BRACKET (1 5/8")
-
1812-69056 WASHER, THROTTLE CABLE STUDWASHER, THROTTLE CABLE STUD
-
1911-8267089 NUT, THROTTLE CABEL STUDNUT, THROTTLE CABEL STUD
-
201347-818622R02 CARBURETOR ASSEMBLY
SERIAL 00000000-04465029CARBURETOR ASSEMBLY
SERIAL 00000000-04465029 -
201347-818622R02 CARBURETOR ASSEMBLY
SERIAL 04465030-09999999CARBURETOR ASSEMBLY
SERIAL 04465030-09999999 -
2116-8M0113177 STUD, CARBURETOR TO INTAKE MANIFOLD(1 9/16")STUD, CARBURETOR TO INTAKE MANIFOLD(1 9/16")
-
2116-70237 STUD, CARBURETOR TO MANIFOLD (2 11/16")STUD, CARBURETOR TO MANIFOLD (2 11/16")
-
2212-20084 WASHER, CARBURETOR STUDWASHER, CARBURETOR STUD
-
2311-29250 NUT, CARBURETOR STUDNUT, CARBURETOR STUD
-
2466012 ADAPTOR, CARBURETOR(STERN DRIVE & V-DRIVE)ADAPTOR, CARBURETOR(STERN DRIVE & V-DRIVE)
-
2570581 WEDGE, CARBURETOR MOUNTING (INBOARD)WEDGE, CARBURETOR MOUNTING (INBOARD)
-
2627-8079821 GASKET, CARBURETORGASKET, CARBURETOR
-
2710-53167T SCREW, ADAPTOR TO INTAKE MANIFOLD (7/8")SCREW, ADAPTOR TO INTAKE MANIFOLD (7/8")
-
2812-20084 WASHER, ADAPTOR SCREWWASHER, ADAPTOR SCREW
-
2927-70142 GASKET, CARBURETOR ADAPTORGASKET, CARBURETOR ADAPTOR
-
3022-70146 CONNECTOR, CARBURETOR (INBOARD)CONNECTOR, CARBURETOR (INBOARD)
-
3022-71969 CONNECTOR, CARBURETOR (90)-STERN DRIVECONNECTOR, CARBURETOR (90)-STERN DRIVE
-
3132-8M0062669 HOSE, CARBURETORHOSE, CARBURETOR
-
3254-815504310 CLAMP, HOSE ATTACHINGCLAMP, HOSE ATTACHING
-
3356863 VALVE, HOSE TO ROCKER COVERVALVE, HOSE TO ROCKER COVER
-
3425-56877 GROMMET, ROCKER COVER TO HOSE
SERIAL 00000000-04465029GROMMET, ROCKER COVER TO HOSE
SERIAL 00000000-04465029 -
3425-75400 GROMMET, ROCKER COVER TO HOSE
SERIAL 04465030-09999999GROMMET, ROCKER COVER TO HOSE
SERIAL 04465030-09999999 -
3516-70878 STUD, FLAME ARRESTOR MOUNTING_CARBURETOR (2")STUD, FLAME ARRESTOR MOUNTING_CARBURETOR (2")
-
3611-8267139 NUT, JAM-FLAME ARRESTOR MOUNTING STUD (BOTTOM)NUT, JAM-FLAME ARRESTOR MOUNTING STUD (BOTTOM)
-
37805016A1 FLAME ARRESTOR, CARBURETORFLAME ARRESTOR, CARBURETOR
-
3812-22937 WASHER, FLAME ARRESTORWASHER, FLAME ARRESTOR
-
3911-826709109 NUT, FLAME ARRESTOR STUDNUT, FLAME ARRESTOR STUD
-
4032-630021 HOSE, VENT-FLAME ARRESTORHOSE, VENT-FLAME ARRESTOR
-
4154-64648 CLAMP, VENT HOSECLAMP, VENT HOSE
-
4210-37892 SCREW, THROTTLE CABLE TO CARBURETOR (1")SCREW, THROTTLE CABLE TO CARBURETOR (1")
-
4312-26907 WASHER, THROTTLE CABLE SCREWWASHER, THROTTLE CABLE SCREW
-
4412-847883 WASHER, THROTTLE CABLE SCREWWASHER, THROTTLE CABLE SCREW
-
4523-57938 BUSHING, THROTTLE CABLE SCREWBUSHING, THROTTLE CABLE SCREW
-
4611-859124 NUT, THROTTLE CABLE SCREWNUT, THROTTLE CABLE SCREW
