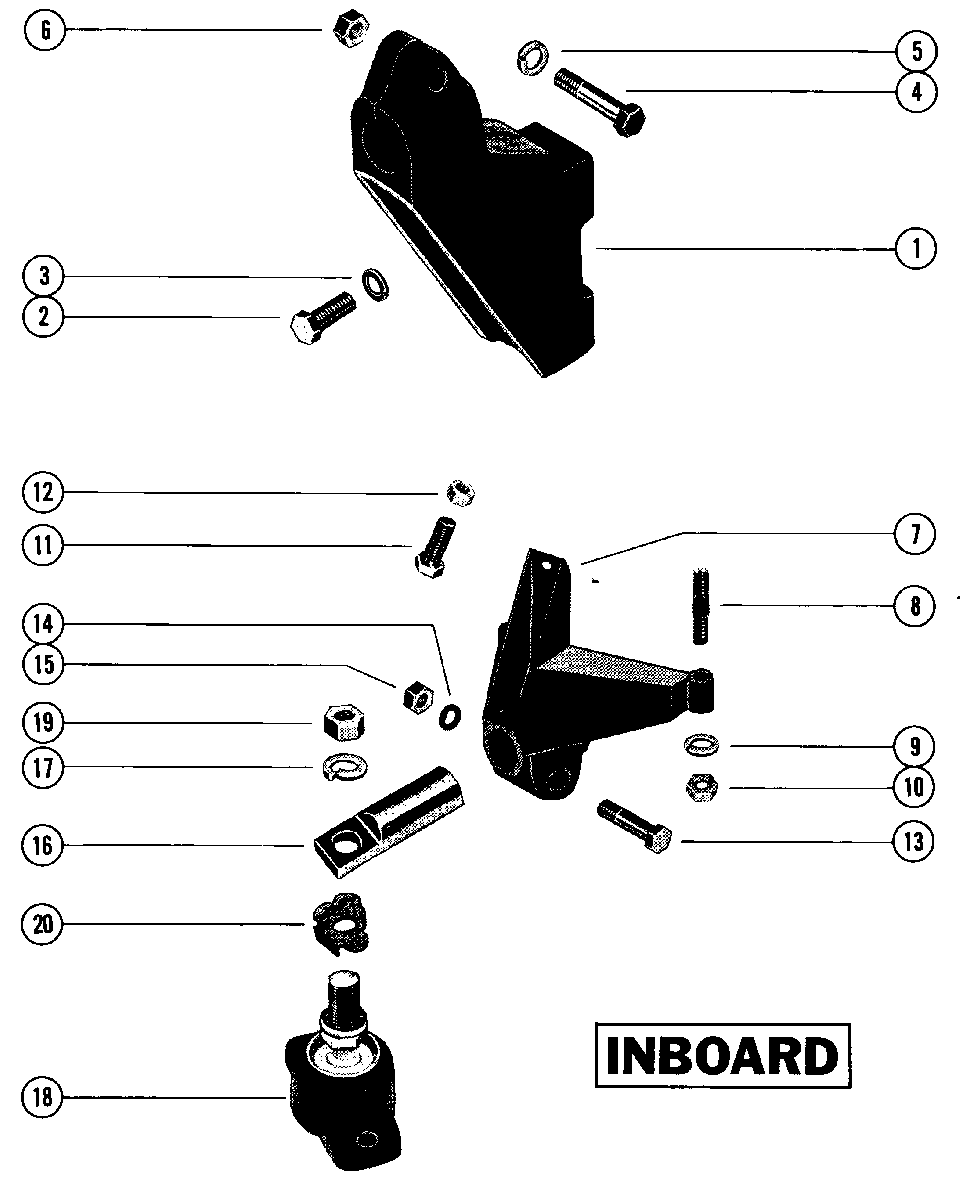

TRANSMISSION AND ENGINE MOUNTING (INBOARD) для Mercruiser - 233 MIE FORD 351 V-8 1975-1976 4173000 THRU 4775784
-
№АртикулНазвание
-
166417T BRACKET, MOUNTING - TRANSMISSION (REAR)BRACKET, MOUNTING - TRANSMISSION (REAR)
-
210-37269 SCREW, BRACKET TO TRANSMISSION (2")SCREW, BRACKET TO TRANSMISSION (2")
-
313-32993 LOCKWASHER, BRACKET SCREWLOCKWASHER, BRACKET SCREW
-
410-57357 SCREW, CLAMPING - MOUNTING BRACKET (2 1/4")SCREW, CLAMPING - MOUNTING BRACKET (2 1/4")
-
513-32993 LOCKWASHER, CLAMPING SCREWLOCKWASHER, CLAMPING SCREW
-
611-82670814 NUT, CLAMPING SCREWNUT, CLAMPING SCREW
-
766169 BRACKET, MOUNTING - ENGINE (FRONT)BRACKET, MOUNTING - ENGINE (FRONT)
-
816-65737 STUD, FRONT MOUNTING BRACKET (2 5/8")STUD, FRONT MOUNTING BRACKET (2 5/8")
-
816-65743 STUD, FRONT MOUNTING BRACKET STARBOARD REAR (3")STUD, FRONT MOUNTING BRACKET STARBOARD REAR (3")
-
913-32993 LOCKWASHER, FRONT MOUNTING BARCKETLOCKWASHER, FRONT MOUNTING BARCKET
-
1011-34933 NUT, FRONT MOUNTING BRACKETNUT, FRONT MOUNTING BRACKET
-
1110-68743 SCREW, ENGINE LOCATING (1 1/4")SCREW, ENGINE LOCATING (1 1/4")
-
1211-22024 NUT, ENGINE LOCATING SCREWNUT, ENGINE LOCATING SCREW
-
1310-37269 SCREW, CLAMPING - MOUNTING BRACKET (2")SCREW, CLAMPING - MOUNTING BRACKET (2")
-
1413-32993 LOCKWASHER , CLAMPING SCREWLOCKWASHER , CLAMPING SCREW
-
1511-82670814 NUT, CLAMPING SCREWNUT, CLAMPING SCREW
-
1666166A4 TRUNNION, ADJUSTING - MOUNTING BRACKETTRUNNION, ADJUSTING - MOUNTING BRACKET
-
1713-68102 LOCKWASHER, MOUNTING BRACKETLOCKWASHER, MOUNTING BRACKET
-
1866284A2 BASE, ENGINE MOUNTBASE, ENGINE MOUNT
-
1911-20739 NUT, JAM - ENGINE MOUNT BASENUT, JAM - ENGINE MOUNT BASE
-
2014-66658 TAB WASHER, BASE NUTTAB WASHER, BASE NUT
