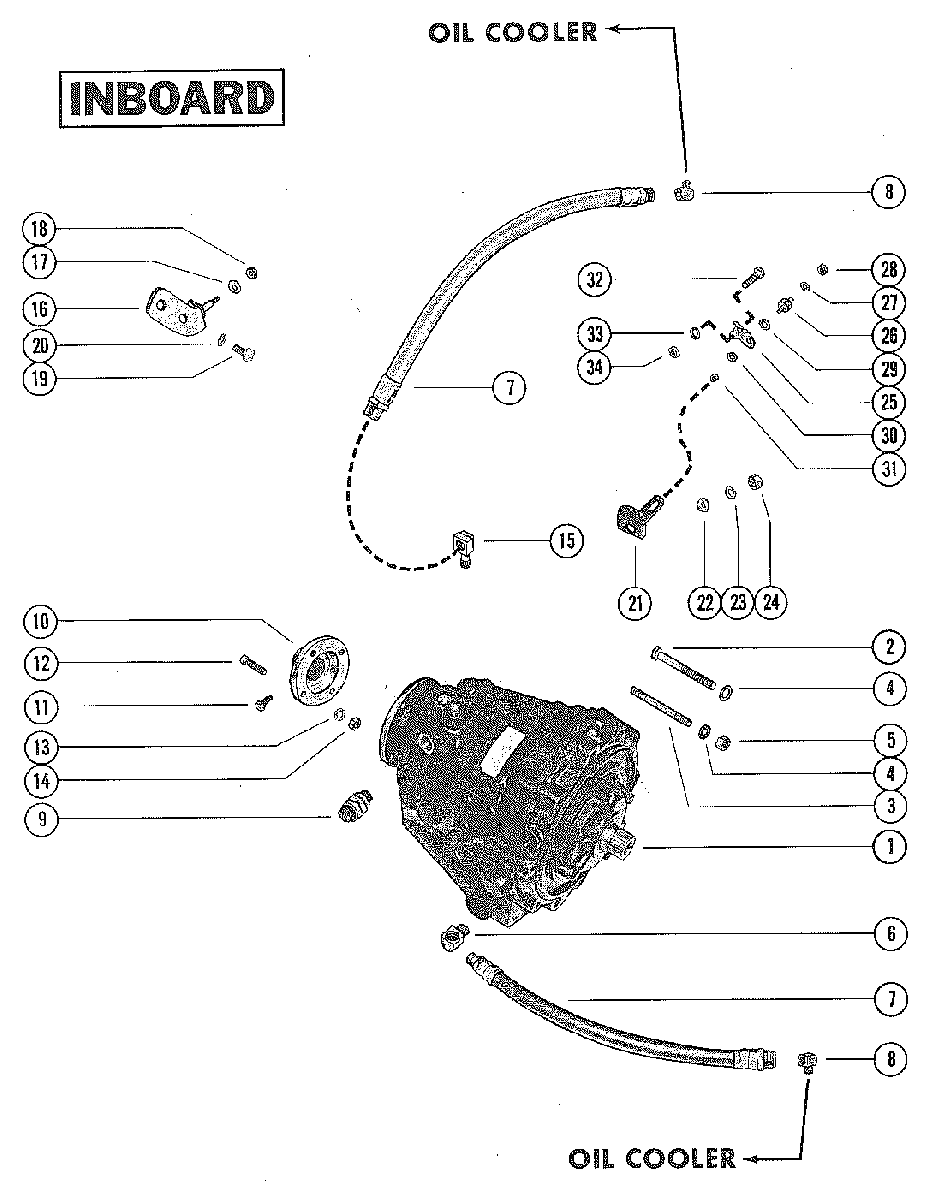

TRANSMISSION AND RELATED PARTS (INBOARD) для Mercruiser - 233 MIE FORD 351 V-8 1975-1976 4173000 THRU 4775784
-
№АртикулНазвание
-
147805A7 TRANSMISSION (DIRECT DRIVE)TRANSMISSION (DIRECT DRIVE)
-
147806R07 TRASMISSION (1.523:1 REDUCTION)TRASMISSION (1.523:1 REDUCTION)
-
147807A7 TRANSMISSION (19.09:1 REDUCTION)TRANSMISSION (19.09:1 REDUCTION)
-
147808R07 TRANSMISSION (2.57:1 REDUCTION)TRANSMISSION (2.57:1 REDUCTION)
-
147809A7 TRANSMISSION (2.909: REDUCTION)TRANSMISSION (2.909: REDUCTION)
-
210-47724 SCREW, TRANSMISSION TO ENGINE (3")SCREW, TRANSMISSION TO ENGINE (3")
-
210-47724 SCREW, TRANSMISSION TO ENGINE (3")SCREW, TRANSMISSION TO ENGINE (3")
-
316-57921 STUD, TRANSMISSION TO ENGINE (4")STUD, TRANSMISSION TO ENGINE (4")
-
413-32993 LOCKWASHER, TRANSMISSION SCREW AND STUDLOCKWASHER, TRANSMISSION SCREW AND STUD
-
511-22024 NUT, TRANSMISSION STUDNUT, TRANSMISSION STUD
-
622-47629 ELBOW, HOSE TO TRANSMISSION (90)ELBOW, HOSE TO TRANSMISSION (90)
-
732-475166 HOSE, TRANSMISSION TO OIL COOLER (28")HOSE, TRANSMISSION TO OIL COOLER (28")
-
732-4751612 HOSE, TRANSMISSION TO OIL COOLER (20")HOSE, TRANSMISSION TO OIL COOLER (20")
-
732-475166 HOSE, TRANSMISSION TO OIL COOLER (30")HOSE, TRANSMISSION TO OIL COOLER (30")
-
822-63835 ELBOW, HOSE TO OIL COOLERELBOW, HOSE TO OIL COOLER
-
947613 SWITCH, NEUTRAL SAFETYSWITCH, NEUTRAL SAFETY
-
1087917A1 FLANGE ASSEMBLY (1")
SEE NOTE AFLANGE ASSEMBLY (1")
SEE NOTE A -
1087917A2 FLANGE ASSEMBLY (1 1/8")
SEE NOTE AFLANGE ASSEMBLY (1 1/8")
SEE NOTE A -
1087917A3 FLANGE ASSEMBLY (1 1/4")
SEE NOTE AFLANGE ASSEMBLY (1 1/4")
SEE NOTE A -
1048384A1 FLANGE ASSEMBLY (1 3/8")
SEE NOTE AFLANGE ASSEMBLY (1 3/8")
SEE NOTE A -
1087917A5 FLANGE ASSEMBLY (1 1/2")
SEE NOTE AFLANGE ASSEMBLY (1 1/2")
SEE NOTE A -
1079476A1 FLANGE ASSEMBLY (1")
SEE NOTE BFLANGE ASSEMBLY (1")
SEE NOTE B -
1079476A2 FLANGE ASSEMBLY (1 1/8")
SEE NOTE BFLANGE ASSEMBLY (1 1/8")
SEE NOTE B -
1079476A3 FLANGE ASSEMBLY (1 1/4")
SEE NOTE BFLANGE ASSEMBLY (1 1/4")
SEE NOTE B -
1079476A4 FLANGE ASSEMBLY (1 3/8")
SEE NOTE BFLANGE ASSEMBLY (1 3/8")
SEE NOTE B -
1079476A5 FLANGE ASSEMBLY (1 1/2")
SEE NOTE BFLANGE ASSEMBLY (1 1/2")
SEE NOTE B -
1110-60168 SCREW, FLANGE TO PROPELLER SHAFT (1 1/2")
SEE NOTE A AND BSCREW, FLANGE TO PROPELLER SHAFT (1 1/2")
SEE NOTE A AND B -
1110-60171 SCREW, FLANGE TO PROPELLER SHAFT (1 1/4")
SEE NOTE A AND BSCREW, FLANGE TO PROPELLER SHAFT (1 1/4")
SEE NOTE A AND B -
1110-60171 SCREW, FLANGE TO PROPELLER SHAFT (1")
SEE NOTE A AND BSCREW, FLANGE TO PROPELLER SHAFT (1")
SEE NOTE A AND B -
1110-60169 SCREW, FLANGE TO PROPELLER SHAFT (3/4")
SEE NOTE A AND BSCREW, FLANGE TO PROPELLER SHAFT (3/4")
SEE NOTE A AND B -
1210-37909 SCREW, FLANGE TO PROPELLER SHAFT (1 1/8")SCREW, FLANGE TO PROPELLER SHAFT (1 1/8")
-
1313-35048 LOCKWASHER, TRANSMISSION FLANGE SCREWLOCKWASHER, TRANSMISSION FLANGE SCREW
-
1411-46335 NUT, TRANSMISSION FLANGE SCREWNUT, TRANSMISSION FLANGE SCREW
-
1522-63824 ELBOW, HOSE TO TRANSMISSION (90)ELBOW, HOSE TO TRANSMISSION (90)
-
1663815A1 BRACKET, SHIFT CABLEBRACKET, SHIFT CABLE
-
1712-56681 WASHER, SHIFT CABLE TO BRACKET STUDWASHER, SHIFT CABLE TO BRACKET STUD
-
1811-46438 NUT, SHIFT CABLE TO BRACKET STUB (10-32)NUT, SHIFT CABLE TO BRACKET STUB (10-32)
-
1910-65746 SCREW, BRACKET TO TRANSMISSION (3/4")SCREW, BRACKET TO TRANSMISSION (3/4")
-
2013-26992 LOCKWASHER, BRACKET SCREWLOCKWASHER, BRACKET SCREW
-
2148515 1 11 1
-
2212-20722 WASHER,K SHIFT LEVER TO TRANSMISSIONWASHER,K SHIFT LEVER TO TRANSMISSION
-
2313-26993 LOCKWASHER, SHIFT LEVER OT TRANSMISSIONLOCKWASHER, SHIFT LEVER OT TRANSMISSION
-
2411-22053 NUT, SHIFT LEVER TO TRASMISSIONNUT, SHIFT LEVER TO TRASMISSION
-
2548652 ADAPTOR, SHIFT LEVER TO TRANSMISSIONADAPTOR, SHIFT LEVER TO TRANSMISSION
-
2616-48680 STUD, SHIFT CABLE ADAPTOR TO SHIFT LEVER (1 1/4")STUD, SHIFT CABLE ADAPTOR TO SHIFT LEVER (1 1/4")
-
2712-20533 WASHER, SHIFT CABLE ADAPTOR STUDWASHER, SHIFT CABLE ADAPTOR STUD
-
2811-20184 NUT, SHIFT CABLE ADAPTOR STUD (1/4-28)NUT, SHIFT CABLE ADAPTOR STUD (1/4-28)
-
2913-29402 WAVE WASHER, SHIFT CABLE ADAPTOR STUDWAVE WASHER, SHIFT CABLE ADAPTOR STUD
-
3012-56681 WASHER, SHIFT CABLE ADAPTOR STUDWASHER, SHIFT CABLE ADAPTOR STUD
-
3111-46438 NUT, SHIFT CABLE ADAPTOR STUD (10-32)NUT, SHIFT CABLE ADAPTOR STUD (10-32)
-
3210-20639 SCREW, SHIFT CABLE TO ADAPTOR (1 1/8")SCREW, SHIFT CABLE TO ADAPTOR (1 1/8")
-
3312-22753 WASHER, SHIFT CABLE SCREWWASHER, SHIFT CABLE SCREW
-
3411-29250 NUT, SHIFT CABLE SCREW (5/16-24)NUT, SHIFT CABLE SCREW (5/16-24)
Все узлы модели:
- CARBURETOR ASSEMBLY
- CRANKSHAFT, PISTON AND CONNECTING ROD
- CYLINDER BLOCK, CYLINDER HEAD AND INTAKE MANIFOLD
- DISTRIBUTOR ASSEMBLY PRESTOLITE
- DISTRIBUTOR ASSEMBLY, COMPLETE MERCURY MARINE
- ENGINE MOUNTING (STERN DRIVE)
- EXHAUST MANIFOLD AND EXHAUST ELBOW ASSEMBLY
- FLYWHEEL HOUSING
- FLYWHEEL HOUSING AND OIL COOLER
- FUEL PUMP, FUEL FILTER AND CARBURETOR
- OIL PUMP AND OIL PAN
- ROCKER COVER, CAMSHAFT AND VALVES
- SHIFT BRACKET, REVERSE LOCK VALVE AND ARM ASSEMBLY (STERN DR
- STARTER MOTOR AND ALTERNATOR
- THERMOSTAT HOUSING, COVER AND EXHAUST ELBOW
- TRANSMISSION AND ENGINE MOUNTING (INBOARD)
- TRANSMISSION AND ENGINE MOUNTING (V-DRIVE)
- • TRANSMISSION AND RELATED PARTS (INBOARD)
- TRANSMISSION AND RELATED PARTS (V-DRIVE)
- WATER DISTRIBUTION HOSES
- WATER PUMP ASSEMBLY, COMPLETE INBOARD
- WIRE HARNESS, CIRCUIT BREAKER AND STARTER SOLENOID( INBOARD)
- WIRE HARNESS, CIRCUIT BREAKER AND STARTER SOLENOID(STERN)
