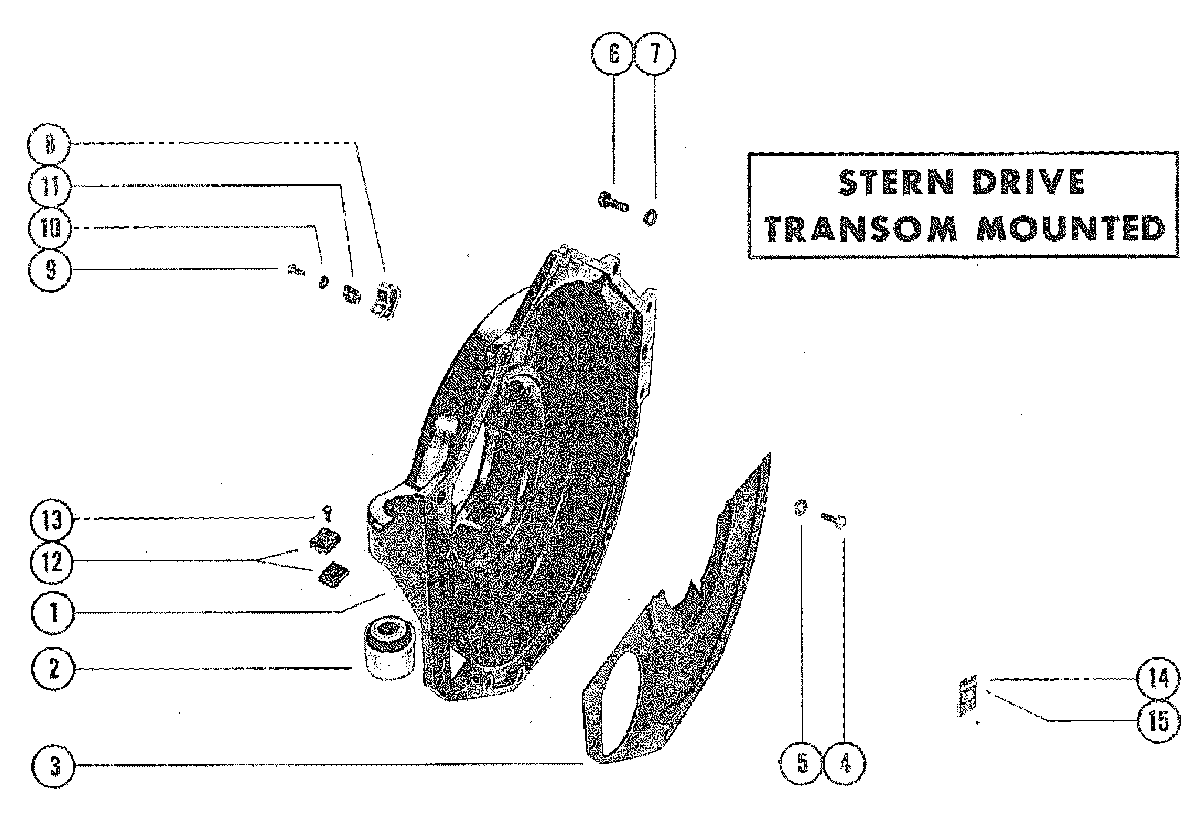

FLYWHEEL HOUSING AND MOUNTING BRACKETS (TRANSOM MOUNTED) для Mercruiser - 225 MIE GM 327 V-8 1968 2278647 THRU 2694014

  • №
    Артикул
    Название
  • 1
    53652A1 HOUSING ASSEMBLY, FLYWHEEL
    HOUSING ASSEMBLY, FLYWHEEL
  • 2
    35852 MOUNT RUBBER - FLYWHEEL HOUSING
    MOUNT RUBBER - FLYWHEEL HOUSING
  • 3
    35864A1 COVER PLATE, FLYWHEEL HOUSING
    COVER PLATE, FLYWHEEL HOUSING
  • 4
    10-25299 SCREW, COVER PLATE TO FLYWHEEL HOUSING ( 3/4")
    SCREW, COVER PLATE TO FLYWHEEL HOUSING ( 3/4")
  • 5
    13-39107 ;LOCKWASHER, COVER PLATE SCREW
    ;LOCKWASHER, COVER PLATE SCREW
  • 6
    10-34354 SCREW, FLYWHEEL HOUSING TO BLOCK (1 2/2")
    SCREW, FLYWHEEL HOUSING TO BLOCK (1 2/2")
  • 6
    10-53734 SCREW, FLYWHEEL HOUSING TO BLOCK (3")
    SCREW, FLYWHEEL HOUSING TO BLOCK (3")
  • 7
    13-35048 LOCKWASHER, FLYWHEEL HOUSING SCREW
    LOCKWASHER, FLYWHEEL HOUSING SCREW
  • 8
    54-46997 CLAMP, WIRING HARNESS TO HOUSING
    CLAMP, WIRING HARNESS TO HOUSING
  • 9
    10-22245 SCREW, WIRING HARNESS CLAMP ATTACHING (1/2:")
    SCREW, WIRING HARNESS CLAMP ATTACHING (1/2:")
  • 10
    13-26996 LOCKWASHER, WIRING HARNESS CLAMP SCREW
    LOCKWASHER, WIRING HARNESS CLAMP SCREW
  • 11
    8M0084613 "D" WASHER, WIRING HARNESS SCREW
    "D" WASHER, WIRING HARNESS SCREW
  • 12
    39974 CONNECTOR, HARNESS LEADS TO FLYWHEEL HOUSING
    CONNECTOR, HARNESS LEADS TO FLYWHEEL HOUSING
  • 13
    10-47618 SCREW, CONNECTOR TO FLYWHEEL HOUSING (1")
    SCREW, CONNECTOR TO FLYWHEEL HOUSING (1")
  • 14
    38-31042 SERIALK PLATE
    SERIALK PLATE
  • 15
    10-20314 SCREW, DRIVE-SERIAL PLATE TO CYLINDRE BLOCK (3/16")
    SCREW, DRIVE-SERIAL PLATE TO CYLINDRE BLOCK (3/16")
