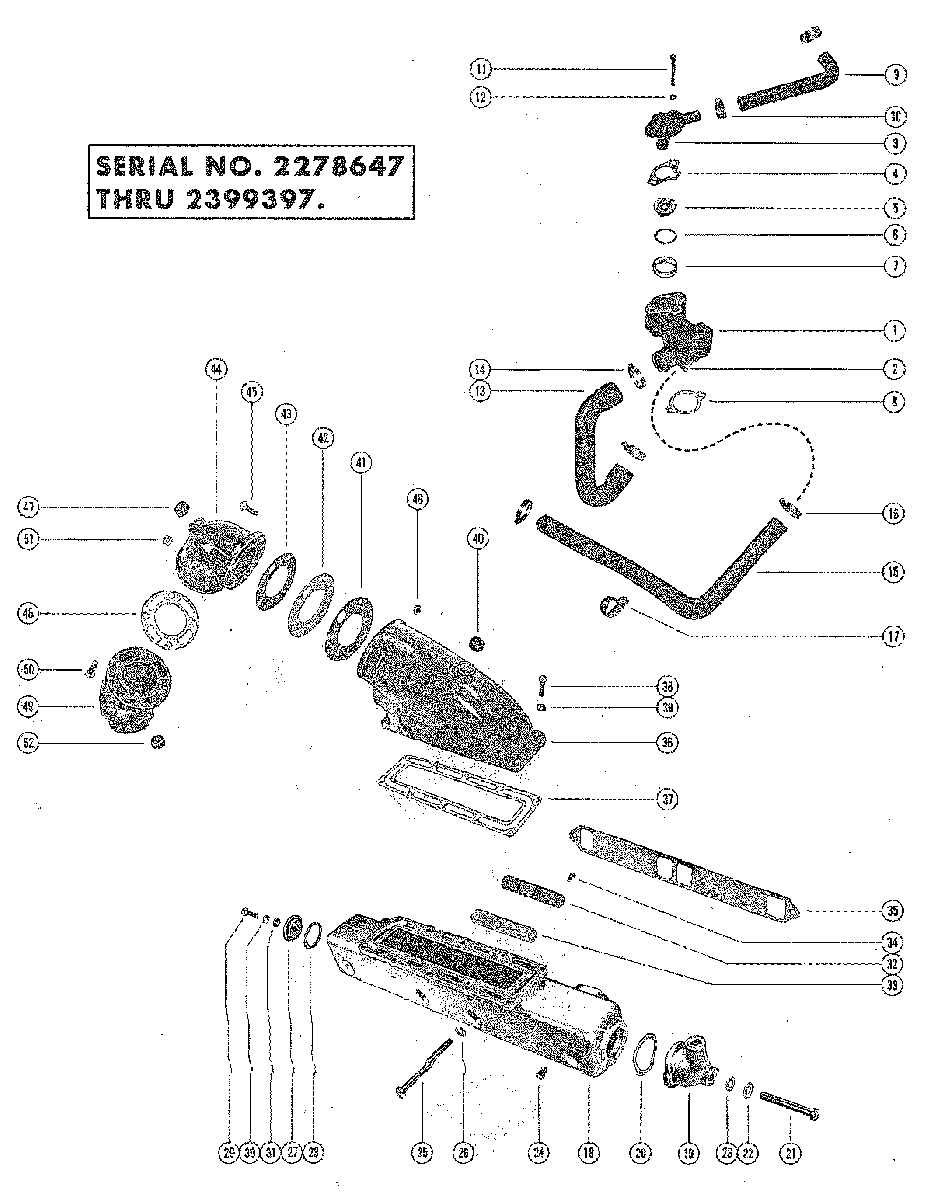

EXHAUST MANIFOLD AND EXHAUST ELBOW для Mercruiser - 225 MIE GM 327 V-8 1968 2278647 THRU 2694014

  • №
    Артикул
    Название
  • 1
    49965A2 THERMOSTAT HOUSING ASSEMBLY
    THERMOSTAT HOUSING ASSEMBLY
  • 2
    23-47511 SLEEVE, THERMOSTAT HOUSING
    SLEEVE, THERMOSTAT HOUSING
  • 3
    47441A1 COVER, THERMOSTAT HOUSING
    COVER, THERMOSTAT HOUSING
  • 4
    27-47509 GASKET, THERMOSTAT HSG. (UPPER)
    SERIAL 02278647-02399197
    GASKET, THERMOSTAT HSG. (UPPER)
    SERIAL 02278647-02399197
  • 4
    27-488181 GASKET, THERMOSTAT HSG. (UPPER)
    SERIAL 02399198-02399397
    GASKET, THERMOSTAT HSG. (UPPER)
    SERIAL 02399198-02399397
  • 5
    8M0089715 THERMOSTAT
    THERMOSTAT
  • 6
    27-47510 GASKET, THERMOSTAT (MIDDLE)
    GASKET, THERMOSTAT (MIDDLE)
  • 7
    23-47508T SLEEVE, THERMOSTAT HOUSING
    SLEEVE, THERMOSTAT HOUSING
  • 8
    27-530451 GASKET, THERMOSTAT HOUSING TO MANIFOLD (LOWER)
    GASKET, THERMOSTAT HOUSING TO MANIFOLD (LOWER)
  • 9
    32-8M0062614 HOSE, THERMOSTAT HOUSING TO EXHAUST MANIFOLD
    HOSE, THERMOSTAT HOUSING TO EXHAUST MANIFOLD
  • 10
    54-815504220 CLAMP, HOSE TO THERMOSTAT HOUSING AND EXHAUST MANIFOLD
    CLAMP, HOSE TO THERMOSTAT HOUSING AND EXHAUST MANIFOLD
  • 11
    10-35785 SCREW, THERMOSTAT HOUSING TO WATER METERING HOUSING (3 1/4")
    SCREW, THERMOSTAT HOUSING TO WATER METERING HOUSING (3 1/4")
  • 12
    13-35048 LOCKWASHER, THERMOSTAT HOUSING SCREW
    LOCKWASHER, THERMOSTAT HOUSING SCREW
  • 13
    32-33189 HOSE, THERMOSTAT HOUSING TO WATER PUMP
    HOSE, THERMOSTAT HOUSING TO WATER PUMP
  • 14
    54-815504228 CLAMP, HOSE THERMOSTAT HOUSING AND WATER PUMP
    CLAMP, HOSE THERMOSTAT HOUSING AND WATER PUMP
  • 15
    32-47650 HOSE, OIL COOLER TO THERMOSTAT HOUSING
    SERIAL 02278647-02399197
    HOSE, OIL COOLER TO THERMOSTAT HOUSING
    SERIAL 02278647-02399197
  • 15
    32-49044 HOSE, WATER PUMP TO THERMOSTAT HOUSING
    SERIAL 02399198-02399397
    HOSE, WATER PUMP TO THERMOSTAT HOUSING
    SERIAL 02399198-02399397
  • 16
    54-815504220 CLAMP, HOSE TO OIL COOLER AND THERMOSTAT HOUSING
    CLAMP, HOSE TO OIL COOLER AND THERMOSTAT HOUSING
  • 17
    54-47715 CLIP, HOSE TO CYLINDER BLOCK
    CLIP, HOSE TO CYLINDER BLOCK
  • 18
    37297 EXHAUST MANIFOLD (PROT AND STARBOARD)
    EXHAUST MANIFOLD (PROT AND STARBOARD)
  • 19
    36306 HOUSING, WATER INLET - EXHAUST MANIFOLD
    HOUSING, WATER INLET - EXHAUST MANIFOLD
  • 20
    27-33180 GASKET, WATER INLET HOUSING
    GASKET, WATER INLET HOUSING
  • 21
    10-68299 SCREW, WATER INLET HOUSING TO EXHAUST MANIFOLD (3")
    SCREW, WATER INLET HOUSING TO EXHAUST MANIFOLD (3")
  • 22
    12-20553 WASHER, WATER INLET HOUSING SCREW
    WASHER, WATER INLET HOUSING SCREW
  • 23
    12-33181 WASHER, COPPER - WATER INLET HOUSING SCREW
    WASHER, COPPER - WATER INLET HOUSING SCREW
  • 24
    22-328022 PULG, PIPE - EXHAUST MANIFOLD
    PULG, PIPE - EXHAUST MANIFOLD
  • 25
    10-60410 SCREW, EXHAUST MANIFOLD TO CYL. HEAD (4 1/4")
    SCREW, EXHAUST MANIFOLD TO CYL. HEAD (4 1/4")
  • 26
    12-20553 WASHER, EXHAUST MANIFOLD SCREW
    WASHER, EXHAUST MANIFOLD SCREW
  • 27
    35298A1 END CAP ASSEMBLY, EXHAUST MANIFOLD
    END CAP ASSEMBLY, EXHAUST MANIFOLD
  • 28
    27-33180 GASKET END CAP
    GASKET END CAP
  • 29
    10-34354 SCREW, END CAP TO EXHAUST MANIFOLD (1 1/2")
    SCREW, END CAP TO EXHAUST MANIFOLD (1 1/2")
  • 30
    12-20553 WASHER, END CAP SCREW
    WASHER, END CAP SCREW
  • 31
    12-33181 WASHER, COPPER - END CAP SCREW
    WASHER, COPPER - END CAP SCREW
  • 32
    33183 COVER. CHOKE OVEN - STARBOARD EXHAUST MANIFOLD
    SERIAL 02399198-02399397
    COVER. CHOKE OVEN - STARBOARD EXHAUST MANIFOLD
    SERIAL 02399198-02399397
  • 33
    27-33184 GASKET, CHOKE OVEN COVER
    SERIAL 02399198-02399397
    GASKET, CHOKE OVEN COVER
    SERIAL 02399198-02399397
  • 34
    10-22022 SCREW, CHOKE COVER TO EXHAUST MANIFOLD (3/8")
    SERIAL 02399198-02399397
    SCREW, CHOKE COVER TO EXHAUST MANIFOLD (3/8")
    SERIAL 02399198-02399397
  • 35
    27-33395 GASKET, EXHAUST MANIFOLD TO CYLINDER HEAD
    GASKET, EXHAUST MANIFOLD TO CYLINDER HEAD
  • 36
    37298 ELBOW, EXHAUST MANIFOLD
    ELBOW, EXHAUST MANIFOLD
  • 37
    27-37296 GASKET, EXHAUST MANIFOLD ELBOW
    GASKET, EXHAUST MANIFOLD ELBOW
  • 38
    10-37258 SCREW, EXHAUST MANIOLD ELBOW TO EXHAUST MANIFOLD (1 1/4")
    SCREW, EXHAUST MANIOLD ELBOW TO EXHAUST MANIFOLD (1 1/4")
  • 39
    11-28770 NUT, EXHAUST MANIFOLD ELBOW SCREW
    NUT, EXHAUST MANIFOLD ELBOW SCREW
  • 40
    22-416223 PLUG, PIPE - EXHAUST MANIFOLD ELBOW
    PLUG, PIPE - EXHAUST MANIFOLD ELBOW
  • 41
    27-35671 GASKET, EXHAUST MANIFOLD ELBOW TO FACE PLATE
    GASKET, EXHAUST MANIFOLD ELBOW TO FACE PLATE
  • 42
    35672 PLATE, FACE - EXHAUST MANIFOLD ELBOW TO UPPER EXHAUST ELBOW
    PLATE, FACE - EXHAUST MANIFOLD ELBOW TO UPPER EXHAUST ELBOW
  • 43
    27-35671 GASKET, UPPER EXHAUST ELBOW TO FACE PLATE
    GASKET, UPPER EXHAUST ELBOW TO FACE PLATE
  • 44
    35674 ELBOW, EXHAUST - UPPER
    ELBOW, EXHAUST - UPPER
  • 45
    10-21951 SCREW, UPPER ELBOW TO EXHAUST MANIFOLD ELBOW
    SCREW, UPPER ELBOW TO EXHAUST MANIFOLD ELBOW
  • 46
    91-52569A1 NUT, UPPER EXHAUST ELBOW SCREW
    NUT, UPPER EXHAUST ELBOW SCREW
  • 47
    22-416223 PULG, PIPE - UPPER EXHAUST ELBOW
    PULG, PIPE - UPPER EXHAUST ELBOW
  • 48
    27-35673 GASKET, UPPER EXHAUST ELBOW TO LOWER EXHAUST ELBOW
    GASKET, UPPER EXHAUST ELBOW TO LOWER EXHAUST ELBOW
  • 49
    35675 ELBOW, EXHAUST - LOWER
    ELBOW, EXHAUST - LOWER
  • 50
    10-21951 SCREW, UPPER EXHAUST ELBOW TO LOWER EXHAUST ELBOW (1 1/4")
    SCREW, UPPER EXHAUST ELBOW TO LOWER EXHAUST ELBOW (1 1/4")
  • 51
    11-25269 NUT, LOWER EXHAUST ELBOW SCREW
    NUT, LOWER EXHAUST ELBOW SCREW
  • 52
    22-416223 PLUG, PIPE - LOWER EXHAUST ELBOW
    PLUG, PIPE - LOWER EXHAUST ELBOW
