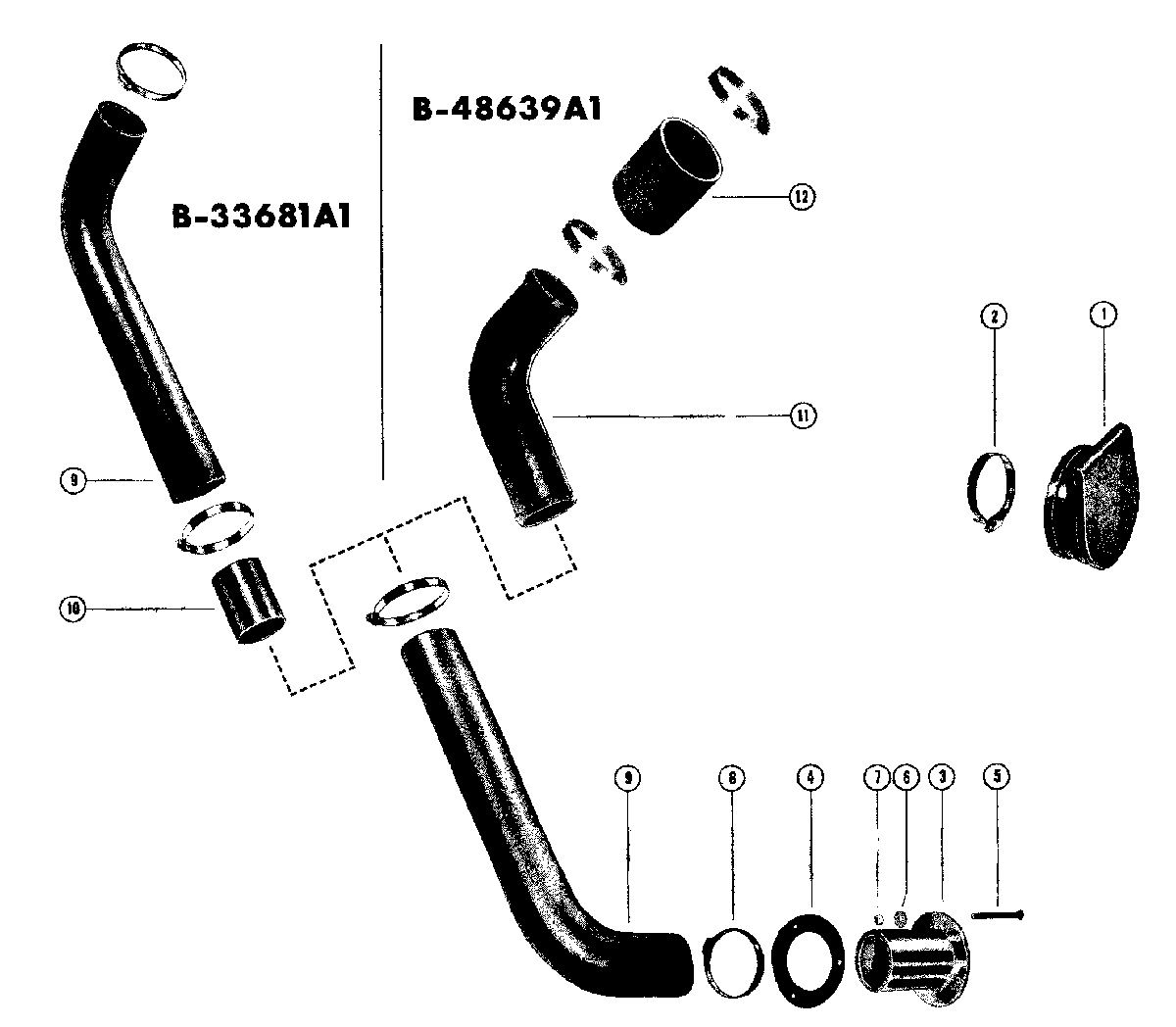

EXHAUST KIT для Mercruiser - 225 MIE GM 327 V-8 1968 2278647 THRU 2694014

  • №
    Артикул
    Название
  • -
    33681A1 EXHAUST KIT
    (Serial #2349198 thru #2399397) (No longer Available)
    EXHAUST KIT
    (Serial #2349198 thru #2399397) (No longer Available)
  • -
    48639A2 EXHAUST KIT
    (Serial #2399398 and up)
    EXHAUST KIT
    (Serial #2399398 and up)
  • 1
    34765A2 COVER KIT, Exhaust Flange
    COVER KIT, Exhaust Flange
  • 2
    54-815504456 CLAMP- Cover to Flange
    CLAMP- Cover to Flange
  • 3
    57885A1 FLANGE - Exhaust Hose
    FLANGE - Exhaust Hose
  • 4
    27-33600 GASKET - Exhaust Hose Flange
    GASKET - Exhaust Hose Flange
  • 5
    10-33684 SCREW - Hose Flange to Boat
    SCREW - Hose Flange to Boat
  • 6
    12-25908 WASHER - Exhaust Hose Flange to Boat Screw
    WASHER - Exhaust Hose Flange to Boat Screw
  • 7
    11-8267089 NUT - Exhaust Hose Flange to Boat Screw
    NUT - Exhaust Hose Flange to Boat Screw
  • 8
    54-815504456 CLAMP - Hose
    CLAMP - Hose
  • 9
    32-33645 TUBE - Exhaust/Exhaust Hose
    TUBE - Exhaust/Exhaust Hose
  • 10
    32-33685 HOSE ( 33681A1 only)
    HOSE ( 33681A1 only)
  • 11
    48639T PIPE - Exhaust
    PIPE - Exhaust
  • 12
    32-486594 HOSE - Exhaust
    HOSE - Exhaust
