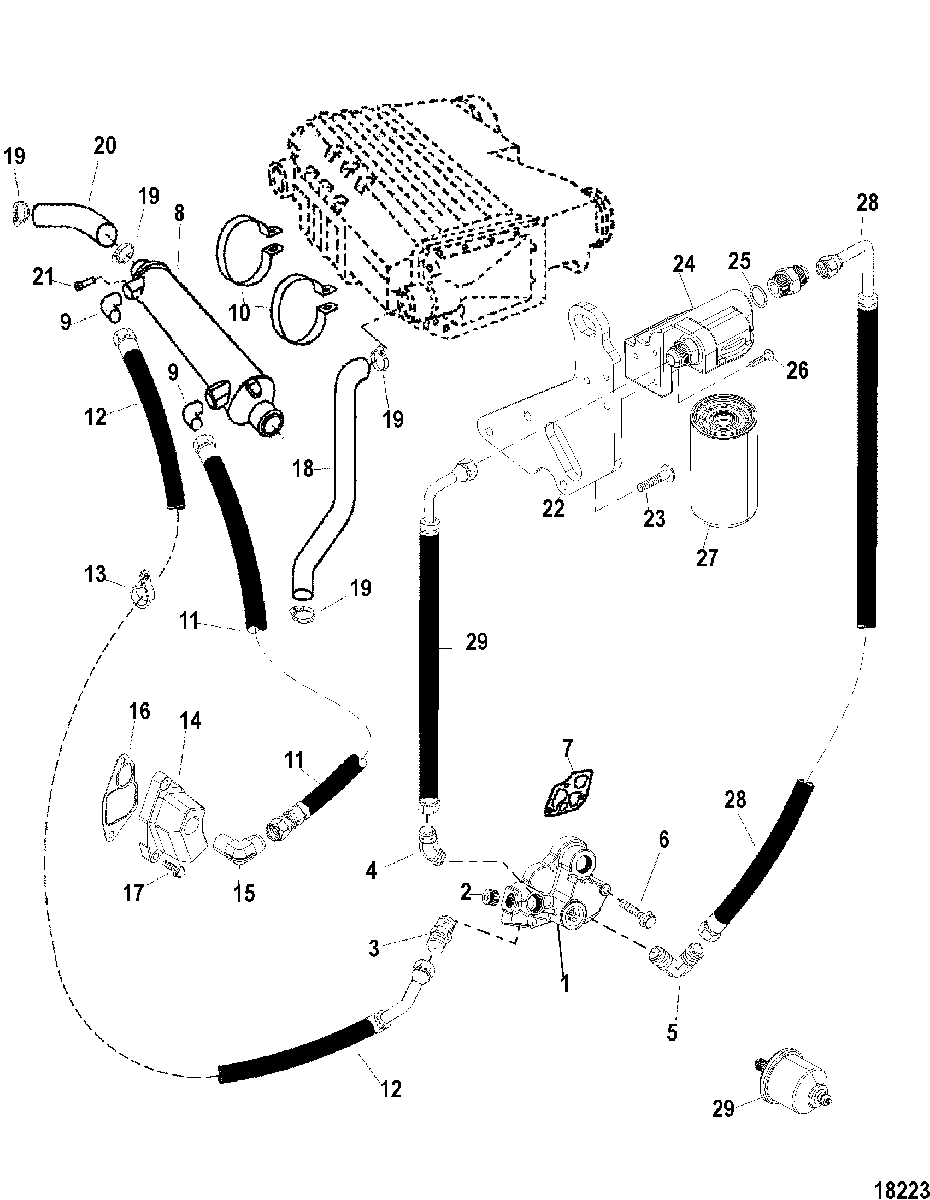

Oil Regulator and Cooler для Mercruiser - D7.3L D-TRONIC 300 1999 0L050050 & Up

  • №
    Артикул
    Название
  • 1
    862896A2 REGULATOR ASSEMBLY, Oil
    REGULATOR ASSEMBLY, Oil
  • 2
    19-853411 PLUG, (.75-14)
    PLUG, (.75-14)
  • 3
    22-853409 CONNECTOR
    CONNECTOR
  • 4
    22-802725 FITTING, Elbow (45 Degree)
    FITTING, Elbow (45 Degree)
  • 5
    22-853408 FITTING, Elbow (90 Degree)
    FITTING, Elbow (90 Degree)
  • 6
    10-81742730 SCREW, (M8 x 30)
    SCREW, (M8 x 30)
  • 6
    10-853377001 SCREW, (M8 x 60)
    SCREW, (M8 x 60)
  • 7
    27-853413 GASKET
    GASKET
  • 8
    853400T1 COOLER ASSEMBLY, Oil
    COOLER ASSEMBLY, Oil
  • 9
    22-853401 FITTING, Elbow (90 Degree)
    FITTING, Elbow (90 Degree)
  • 10
    54-853420 STRAP, Oil Cooler
    STRAP, Oil Cooler
  • 11
    32-853417 HOSE, Cooler to Engine
    HOSE, Cooler to Engine
  • 12
    32-802728 HOSE, Cooler to Regulator
    HOSE, Cooler to Regulator
  • 13
    54-802792 CLAMP
    CLAMP
  • 14
    863608 COVER, Oil Outlet
    COVER, Oil Outlet
  • 15
    22-853401 FITTING, Elbow (90 Degree)
    FITTING, Elbow (90 Degree)
  • 16
    27-853418 GASKET, Oil Cooler
    GASKET, Oil Cooler
  • 17
    10-81742730 SCREW, (M8 x 30)
    SCREW, (M8 x 30)
  • 18
    32-853422 HOSE, Seawater Pump to Air Cooler
    HOSE, Seawater Pump to Air Cooler
  • 19
    54-815504232 CLAMP, Worm Gear
    CLAMP, Worm Gear
  • 20
    32-853397 HOSE, Heat Exchanger to Oil Cooler
    HOSE, Heat Exchanger to Oil Cooler
  • 21
    97-808112 ANODE, Zinc
    ANODE, Zinc
  • 22
    862887 BRACKET
    BRACKET
  • 23
    10-4010830 SCREW, (M10 x 15) Hex Flange - Stainless Steel
    SCREW, (M10 x 15) Hex Flange - Stainless Steel
  • 24
    863148A3 HEADER ASSEMBLY
    HEADER ASSEMBLY
  • 25
    25-862895 O-RING
    O-RING
  • 26
    10-40011151 SCREW, (M8 x 35) Stainless Steel
    SCREW, (M8 x 35) Stainless Steel
  • 27
    35-862889 FILTER, (7.5 Inch - 190.5 mm), Oil
    SN# 0L391832 & Below
    FILTER, (7.5 Inch - 190.5 mm), Oil
    SN# 0L391832 & Below
  • 27
    35-805809T FILTER, (5.5 Inches - 139.7 mm), Oil
    SN# 0L391833 & Up
    FILTER, (5.5 Inches - 139.7 mm), Oil
    SN# 0L391833 & Up
  • 28
    32-802729 HOSE, Filter to Regulator
    HOSE, Filter to Regulator
  • 29
    805267T SENDER, Oil Pressure
    SENDER, Oil Pressure
