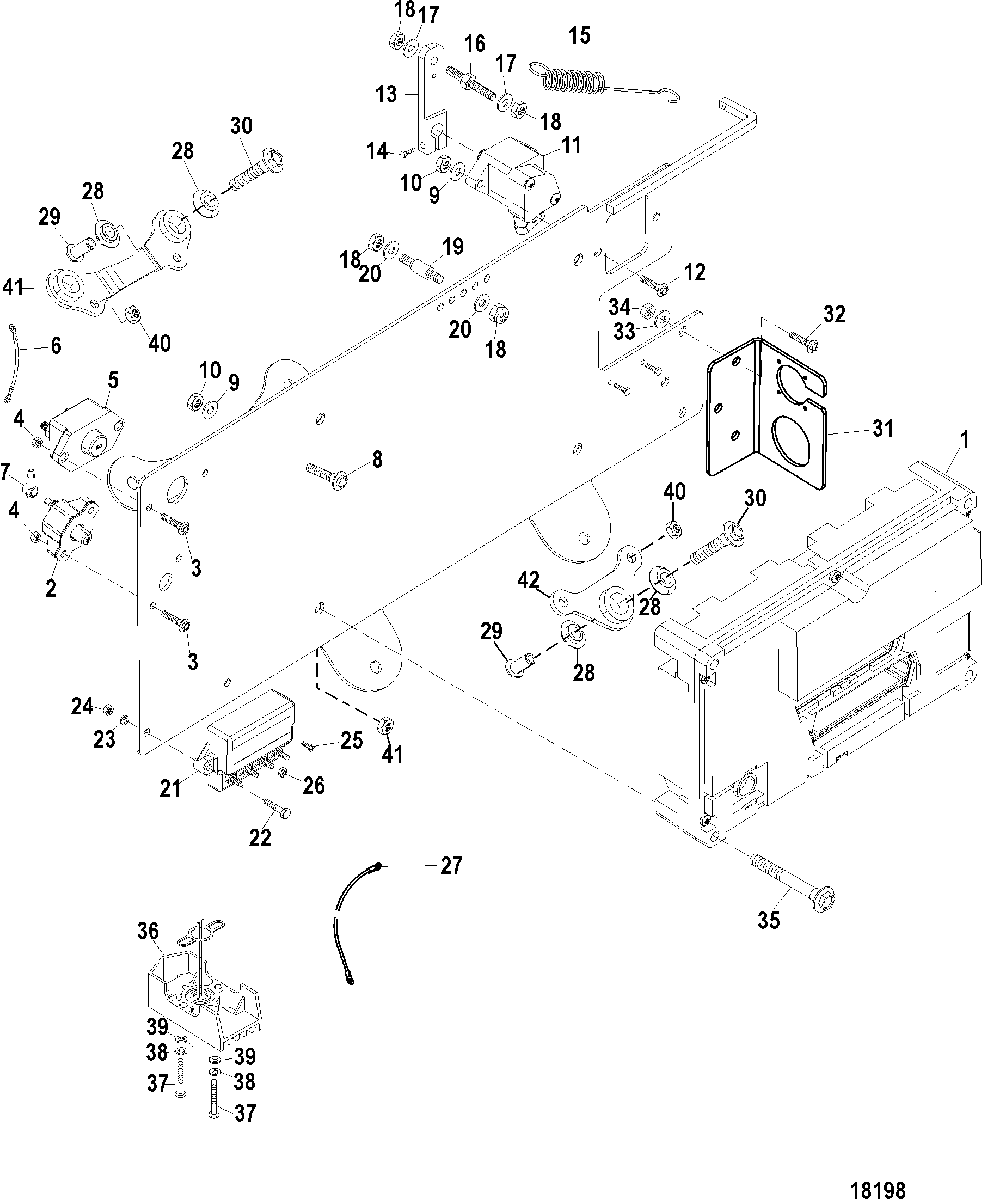

Electronic Panel для Mercruiser - D7.3L D-TRONIC 300 1999 0L050050 & Up

  • №
    Артикул
    Название
  • 1
    862169T MODULE, Electronic Control
    (300 HP)
    MODULE, Electronic Control
    (300 HP)
  • 1
    862169T1 MODULE, Electronic Control
    (260 HP)
    MODULE, Electronic Control
    (260 HP)
  • 2
    853404 BREAKER, Circuit - 30 Ampere
    BREAKER, Circuit - 30 Ampere
  • 3
    10-802784 SCREW, (M5 x 20)
    SCREW, (M5 x 20)
  • 4
    11-400211 NUT, (M5) Stainless Steel
    NUT, (M5) Stainless Steel
  • 5
    88-805692 BREAKER, Circuit - 150 Ampere
    BREAKER, Circuit - 150 Ampere
  • 6
    84-853506 WIRE
    WIRE
  • 7
    85-8500671 BOOT, Insulator - Red
    BOOT, Insulator - Red
  • 8
    10-4009416 SCREW, (M6 x 16)
    SCREW, (M6 x 16)
  • 9
    12-853211 WASHER
    WASHER
  • 10
    11-802777 NUT, (M6)
    NUT, (M6)
  • 11
    853497 CONTROL, Throttle
    CONTROL, Throttle
  • 12
    10-802783 SCREW, (M6 x 25)
    SCREW, (M6 x 25)
  • 13
    853498 LEVER
    LEVER
  • 14
    10-853097 SCREW, (M4 x 20)
    SCREW, (M4 x 20)
  • 15
    24-91821 SPRING
    SPRING
  • 16
    16-8M0113178 STUD, (.250-28 x 2.00)
    STUD, (.250-28 x 2.00)
  • 17
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel
    WASHER, (.281 x .500 x .060) Stainless Steel
  • 18
    11-8267089 NUT, (.250-28)
    NUT, (.250-28)
  • 19
    16-818192 STUD
    STUD
  • 20
    12-24664 WASHER, (M4 x 20)
    WASHER, (M4 x 20)
  • 21
    42600A09 CONTROLLER ASSEMBLY
    CONTROLLER ASSEMBLY
  • 22
    10-802784 SCREW, (M5 x 20)
    SCREW, (M5 x 20)
  • 23
    13-26996 LOCKWASHER, (#10) Stainless Steel
    LOCKWASHER, (#10) Stainless Steel
  • 24
    11-68219 NUT, (#10-32) Stainless Steel
    NUT, (#10-32) Stainless Steel
  • 25
    10-62568 SCREW, (#10-16 x .375)
    SCREW, (#10-16 x .375)
  • 26
    11-68219 NUT, (#10-32) Stainless Steel
    NUT, (#10-32) Stainless Steel
  • 27
    84-88543A3 CABLE ASSEMBLY
    CABLE ASSEMBLY
  • 28
    25-853470 ISOLATOR
    ISOLATOR
  • 29
    853504 SPACER
    SPACER
  • 30
    10-853219 SCREW, (M8 x 25)
    SCREW, (M8 x 25)
  • 31
    863390 PLATE, Electrical Connection Mounting
    PLATE, Electrical Connection Mounting
  • 32
    10-4009416 SCREW, (M6 x 16)
    SCREW, (M6 x 16)
  • 33
    12-853211 WASHER
    WASHER
  • 34
    11-802777 NUT, (M6)
    NUT, (M6)
  • 35
    10-853412 SCREW, (M8 x 70)
    SCREW, (M8 x 70)
  • 36
    8M0085692 ELECTRODE ASSEMBLY
    ELECTRODE ASSEMBLY
  • 37
    10-69067 SCREW, (.250-20 x 1.375)
    SCREW, (.250-20 x 1.375)
  • 38
    13-26992 LOCKWASHER, (.250) Stainless Steel
    LOCKWASHER, (.250) Stainless Steel
  • 39
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel
    WASHER, (.281 x .500 x .060) Stainless Steel
  • 40
    11-853468 NUT, (M8)
    NUT, (M8)
  • 41
    853293T BRACKET
    BRACKET
  • 42
    853499 BRACKET
    BRACKET
