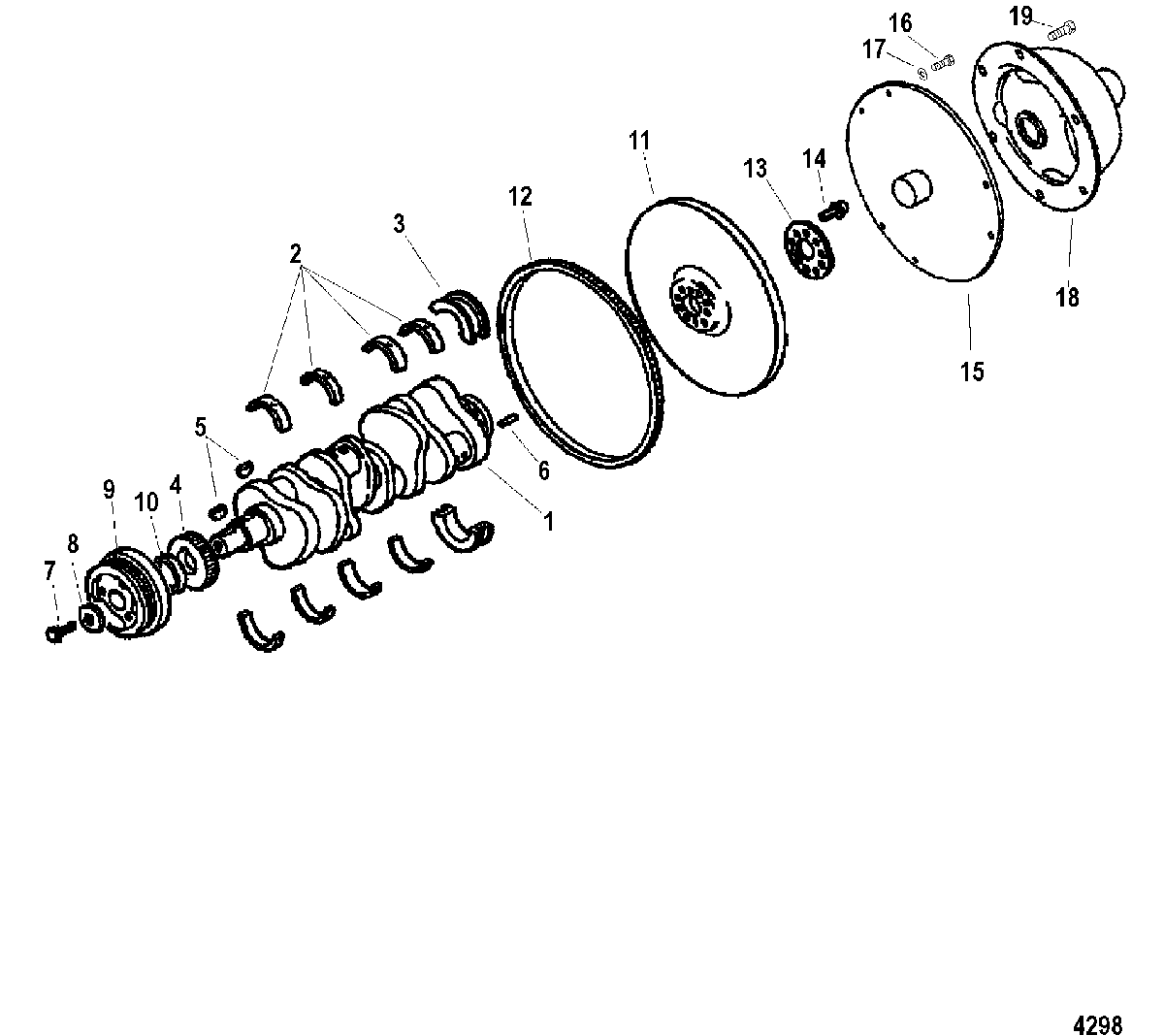

Crankshaft, Flywheel, and Related Parts для Mercruiser - D7.3L D-TRONIC 300 1999 0L050050 & Up

  • №
    Артикул
    Название
  • 1
    429-879834A1 CRANKSHAFT ASSEMBLY
    (INCLUDES CONNECTING ROD BEARINGS)
    CRANKSHAFT ASSEMBLY
    (INCLUDES CONNECTING ROD BEARINGS)
  • 2
    23-853067 BEARING, Main (Standard)
    BEARING, Main (Standard)
  • 2
    23-853068 BEARING, Main (.010)
    BEARING, Main (.010)
  • 2
    23-853069 BEARING, Main (.020)
    BEARING, Main (.020)
  • 2
    23-853070T BEARING, Main (.030)
    BEARING, Main (.030)
  • 3
    23-853071 BEARING, Rear Main (Standard)
    BEARING, Rear Main (Standard)
  • 3
    23-853072 BEARING, Rear Main (.010)
    BEARING, Rear Main (.010)
  • 3
    23-853073 BEARING, Rear Main (.020)
    BEARING, Rear Main (.020)
  • 3
    23-853074 BEARING, Rear Main (.030)
    BEARING, Rear Main (.030)
  • 4
    43-853065 GEAR, Crankshaft
    GEAR, Crankshaft
  • 5
    28-853066 KEY, Crankshaft
    KEY, Crankshaft
  • 6
    17-853081 PIN, (.375 x 1.00)
    PIN, (.375 x 1.00)
  • 7
    10-853061 BOLT, (M16 x 60)
    BOLT, (M16 x 60)
  • 8
    12-853062 WASHER, Crankshaft
    WASHER, Crankshaft
  • 9
    853063 DAMPER ASSEMBLY
    DAMPER ASSEMBLY
  • 10
    23-853064 SLEEVE, Front Oil Seal Wear
    SLEEVE, Front Oil Seal Wear
  • 11
    222-862753A1 FLYWHEEL ASSEMBLY
    FLYWHEEL ASSEMBLY
  • 12
    43-853075 GEAR, Flywheel Ring
    GEAR, Flywheel Ring
  • 13
    853079 RING, Reinforcement
    RING, Reinforcement
  • 14
    10-853080 BOLT
    BOLT
  • 15
    853274T COUPLER PLATE
    COUPLER PLATE
  • 16
    10-802773 SCREW, (.312-18 x 1.250)
    SCREW, (.312-18 x 1.250)
  • 17
    12-4002317 WASHER
    WASHER
  • 18
    805684A2 COUPLING
    COUPLING
  • 19
    10-47461 SCREW, (.437-14 x 1.00)
    SCREW, (.437-14 x 1.00)
  • 19
    10-40001192 SCREW, (M10 x 25)
    SCREW, (M10 x 25)
