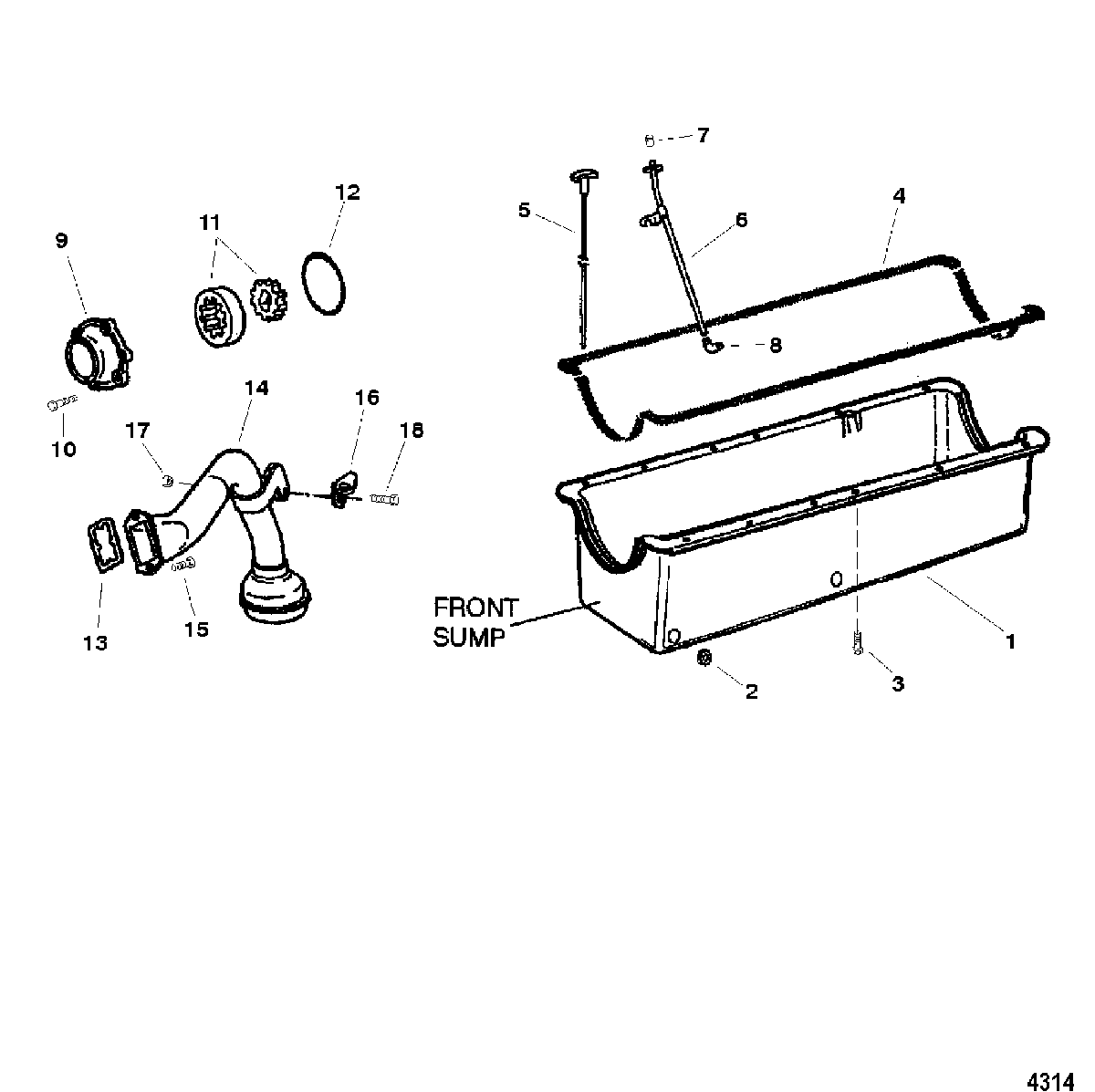

Oil Pan and Oil Pump для Mercruiser - D7.3L D-TRONIC 260 LD 1999 0L050050 & Up

  • №
    Артикул
    Название
  • 1
    863377A2 PAN ASSEMBLY, Oil
    SN# 0L677802 & Below
    PAN ASSEMBLY, Oil
    SN# 0L677802 & Below
  • 1
    863377A2 PAN ASSEMBLY, Oil
    SN# 0L677803 & Up
    PAN ASSEMBLY, Oil
    SN# 0L677803 & Up
  • 2
    19-853099 PLUG, (.250), Drain
    SN# 0L677802 & Below
    PLUG, (.250), Drain
    SN# 0L677802 & Below
  • 2
    22-73379 PLUG, (.250-18), Drain
    SN# 0L677803 & Up
    PLUG, (.250-18), Drain
    SN# 0L677803 & Up
  • 3
    10-853466 SCREW, (M8 x 20), Oil Pan
    SN# 0L677802 & Below
    SCREW, (M8 x 20), Oil Pan
    SN# 0L677802 & Below
  • 3
    10-853466 SCREW, Oil Pan
    SN# 0L677803 & Up
    SCREW, Oil Pan
    SN# 0L677803 & Up
  • 4
    92-809826 RTV SILICONE, (13 Ounce Cartridge) Black
    RTV SILICONE, (13 Ounce Cartridge) Black
  • 5
    853093 DIPSTICK
    DIPSTICK
  • 6
    32-853094 TUBE, Dipstick
    SN# 0L677802 & Below
    TUBE, Dipstick
    SN# 0L677802 & Below
  • 6
    864495 TUBE, Dipstick
    SN# 0L677803 & Up
    TUBE, Dipstick
    SN# 0L677803 & Up
  • 7
    36-853095 CAP, Dipstick Tube
    SN# 0L677802 & Below
    CAP, Dipstick Tube
    SN# 0L677802 & Below
  • 7
    861982 CAP, Dipstick Tube
    SN# 0L677803 & Up
    CAP, Dipstick Tube
    SN# 0L677803 & Up
  • 8
    22-853096 FITTING, Elbow (90 Degree)
    FITTING, Elbow (90 Degree)
  • 9
    853083 HOUSING, Oil Pump
    HOUSING, Oil Pump
  • 10
    10-853084 BOLT, (M8 x 30)
    BOLT, (M8 x 30)
  • 11
    853085T GEROTOR
    GEROTOR
  • 12
    27-853086 GASKET
    GASKET
  • 13
    27-853087 GASKET
    GASKET
  • 14
    32-853088 TUBE, Oil Pick-Up
    TUBE, Oil Pick-Up
  • 15
    10-853242 SCREW
    SCREW
  • 16
    853090 BRACKET
    BRACKET
  • 17
    11-853468 NUT, (M8)
    NUT, (M8)
  • 18
    10-853092 BOLT
    BOLT
