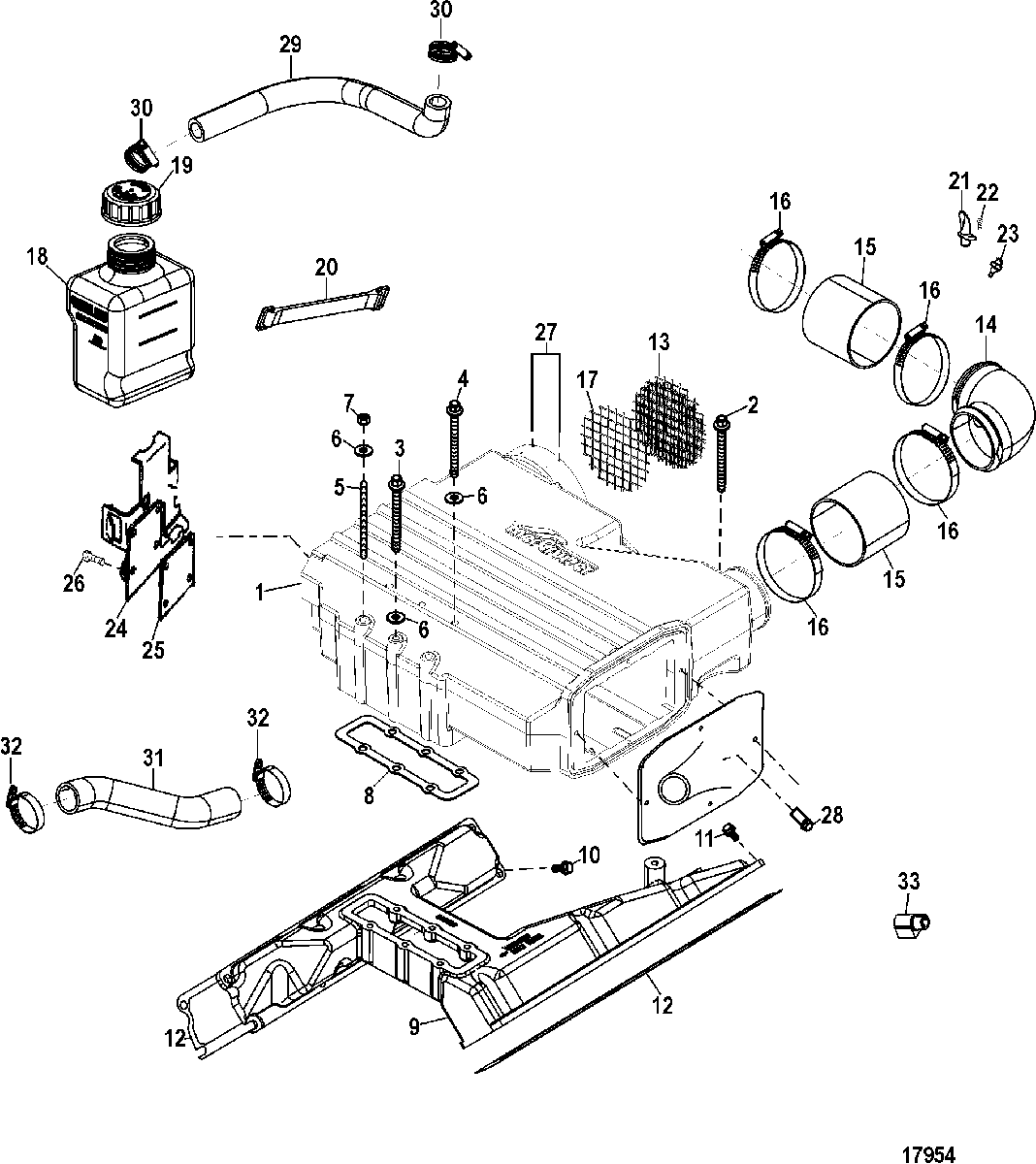

Aftercooler and Intake Manifold для Mercruiser - D7.3L D-TRONIC 260 LD 1999 0L050050 & Up

№

Артикул

Название
1

864172A3 AFTERCOOLER ASSEMBLY

AFTERCOOLER ASSEMBLY
2

10-853226 SCREW, (M8 x 100)

SCREW, (M8 x 100)
3

10-853371 SCREW, (M8 x 130)

SCREW, (M8 x 130)
4

10-802785 SCREW, (M8 x 150)

SCREW, (M8 x 150)
5

16-853429 STUD, (M8 x 130)

STUD, (M8 x 130)
6

12-853373 WASHER

WASHER
7

11-853468 NUT, (M8)

NUT, (M8)
8

27-853374 GASKET

GASKET
9

853375A1 MANIFOLD ASSEMBLY, Intake

MANIFOLD ASSEMBLY, Intake
10

10-853376 SCREW, (M8 x 20)

SCREW, (M8 x 20)
11

10-853377001 SCREW, (M8 x 60)

SCREW, (M8 x 60)
12

27-853378 GASKET, Intake

GASKET, Intake
13

853379 ELEMENT, Air Cleaner

ELEMENT, Air Cleaner
14

862273T ELBOW

ELBOW
15

32-802716 HOSE

HOSE
16

54-815504248 CLAMP, Worm Gear, Hose

CLAMP, Worm Gear, Hose
17

853215 SCREEN

SCREEN
18

8M0075708 MONITOR ASSEMBLY, Drive Lube

MONITOR ASSEMBLY, Drive Lube
19

36-8067271 CAP, Drive Lube Monitor

CAP, Drive Lube Monitor
20

808023T STRAP, Bracket

STRAP, Bracket
21

853382 TUBE

TUBE
22

10-802776 SCREW, (M4 x 16)

SCREW, (M4 x 16)
23

853203 SENDER, Air Temperature

SENDER, Air Temperature
24

860065A1 BRACKET KIT, Oil Reservoir

BRACKET KIT, Oil Reservoir
25

NLA No Longer Available, Plate, Cover

No Longer Available, Plate, Cover
26

10-4010816 SCREW, (M10 x 16) Hex Flange - Stainless Steel

SCREW, (M10 x 16) Hex Flange - Stainless Steel
27

853483 KEEPER

KEEPER
28

97-808112 ANODE, Zinc

ANODE, Zinc
29

32-853431 HOSE

HOSE
30

54-815504412 CLAMP, Worm Gear, Hose

CLAMP, Worm Gear, Hose
31

32-897143 HOSE, To Heat Exchanger

HOSE, To Heat Exchanger
32

54-815504232 CLAMP, Worm Gear, Hose

CLAMP, Worm Gear, Hose
33

22-853173 ELBOW

ELBOW
-

861986 SENSOR, MAP

SENSOR, MAP
