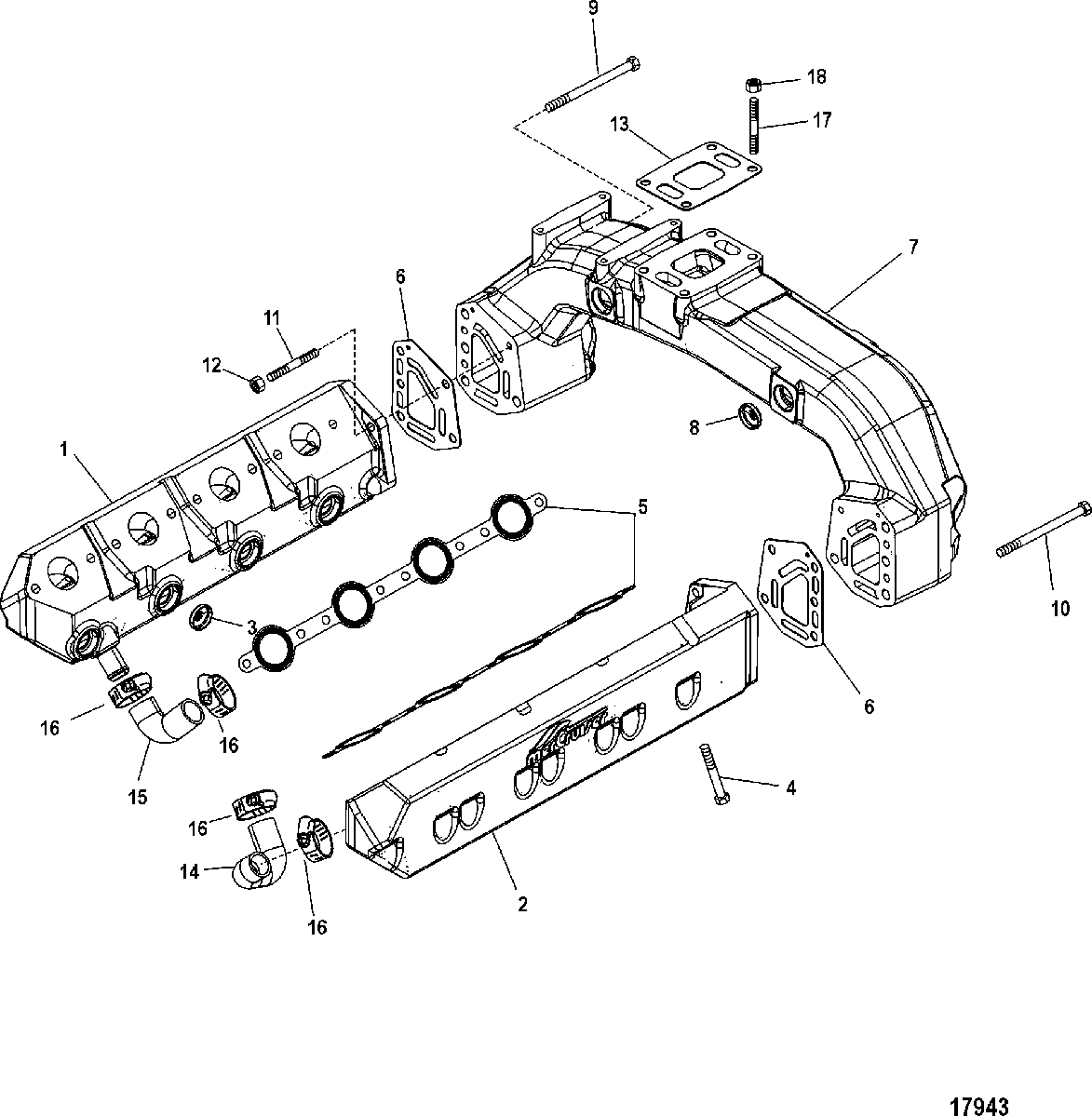

Exhaust Manifold для Mercruiser - D7.3L D-TRONIC 260 LD 1999 0L050050 & Up

  • №
    Артикул
    Название
  • 1
    853145T1 MANIFOLD ASSEMBLY, Exhaust, Starboard
    MANIFOLD ASSEMBLY, Exhaust, Starboard
  • 2
    853148T1 MANIFOLD ASSEMBLY, Exhaust, Port
    MANIFOLD ASSEMBLY, Exhaust, Port
  • -
    19-805921 PLUG, (1.25 Inch)
    PLUG, (1.25 Inch)
  • 3
    853146 TUBE, Hose Connector
    TUBE, Hose Connector
  • 4
    10-853147 SCREW, (M10 x 90)
    SCREW, (M10 x 90)
  • 5
    27-853151 GASKET, Exhaust Manifold
    GASKET, Exhaust Manifold
  • 6
    27-853152 GASKET, Exhaust (Rear)
    GASKET, Exhaust (Rear)
  • 7
    853153A1 MANIFOLD ASSEMBLY, Rear
    MANIFOLD ASSEMBLY, Rear
  • 8
    19-805921 PLUG, (1.25 Inch)
    PLUG, (1.25 Inch)
  • 9
    10-853155 SCREW, (M10 x 140)
    SCREW, (M10 x 140)
  • 10
    10-824848110 SCREW, (M10 x 110)
    SCREW, (M10 x 110)
  • 11
    16-802780 STUD, (M10 x 50)
    STUD, (M10 x 50)
  • 12
    11-853447 NUT, (M10)
    NUT, (M10)
  • 13
    27-853157 GASKET, Turbocharger
    GASKET, Turbocharger
  • 14
    32-898419 HOSE
    HOSE
  • 15
    32-853179 HOSE
    HOSE
  • 16
    54-815504216 CLAMP, Worm Gear (1.56 Diameter)
    CLAMP, Worm Gear (1.56 Diameter)
  • 17
    16-802780 STUD, (M10 x 50)
    STUD, (M10 x 50)
  • 18
    11-853447 NUT, (M10)
    NUT, (M10)
