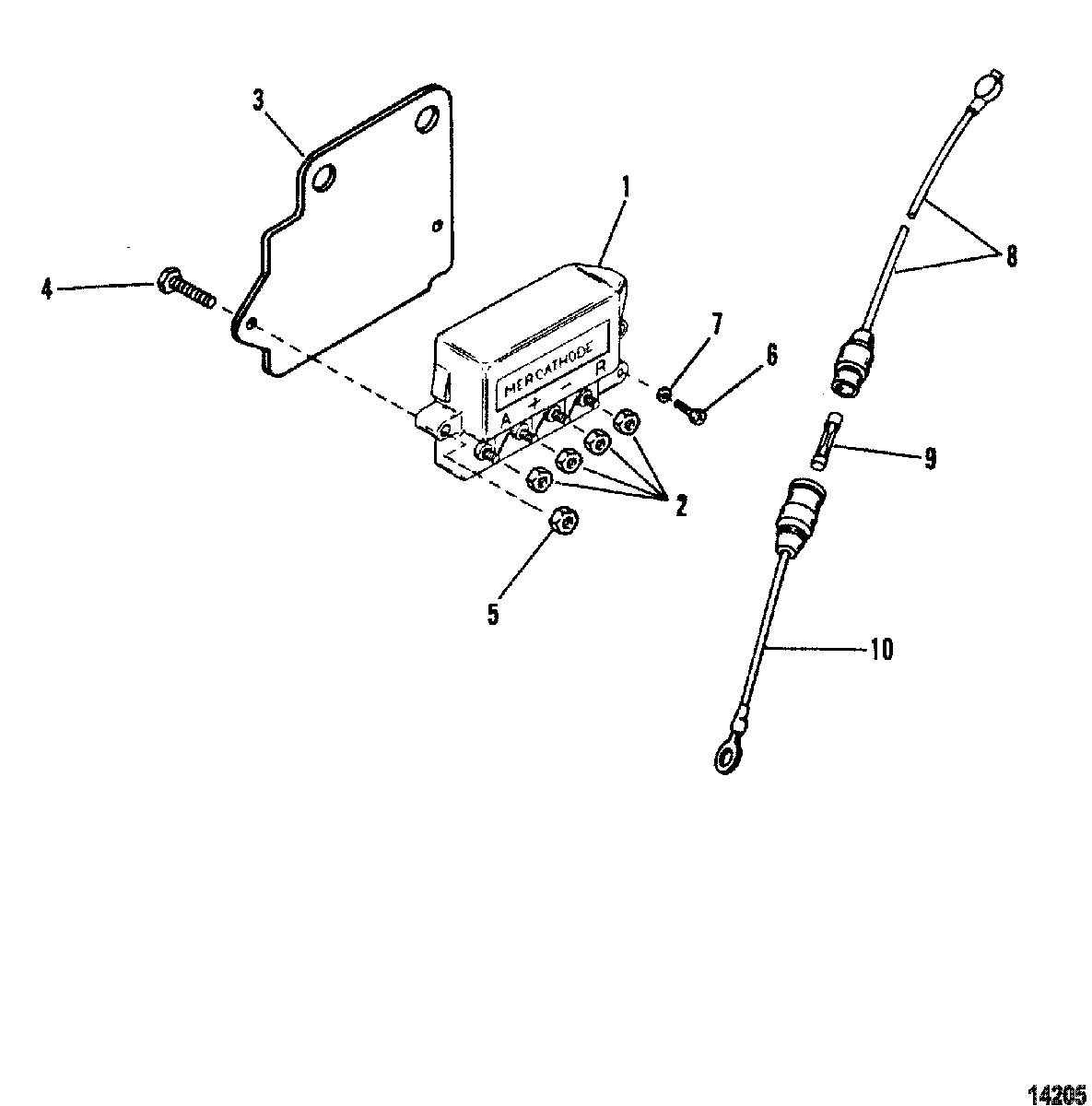

Mercathode(Stern Drive) для Mercruiser - D3.0L (BRAVO) VM 183 I/L5 1994-1997 0D725152 THRU 0F999999

  • №
    Артикул
    Название
  • 1
    42600A09 CONTROLLER ASSEMBLY
    CONTROLLER ASSEMBLY
  • 2
    11-68219 NUT, (#10-32) Stainless Steel
    NUT, (#10-32) Stainless Steel
  • 3
    18893T BRACKET
    (3.0L) SN# 0D725459 & Below
    BRACKET
    (3.0L) SN# 0D725459 & Below
  • 3
    18893T BRACKET
    (3.6L) SN# 0F306929 & Below
    BRACKET
    (3.6L) SN# 0F306929 & Below
  • 3A
    807286T BRACKET
    (3.0L) SN# 0D725460 & Up
    BRACKET
    (3.0L) SN# 0D725460 & Up
  • 3A
    807286T BRACKET
    (3.6L) SN# 0F306930 & Up
    BRACKET
    (3.6L) SN# 0F306930 & Up
  • 3B
    10-40001188 SCREW, (M10 x 20)
    (3.0L) SN# 0D725460 & Up
    SCREW, (M10 x 20)
    (3.0L) SN# 0D725460 & Up
  • 3B
    10-40001188 SCREW, (M10 x 20)
    (3.6L) SN# 0F306930 & Up
    SCREW, (M10 x 20)
    (3.6L) SN# 0F306930 & Up
  • 3C
    12-4002220 WASHER
    (3.0L) SN# 0D725460 & Up
    WASHER
    (3.0L) SN# 0D725460 & Up
  • 3C
    12-4002220 WASHER
    (3.6L) SN# 0F306930 & Up
    WASHER
    (3.6L) SN# 0F306930 & Up
  • 4
    10-4000117 SCREW, (M5 x 20)
    SCREW, (M5 x 20)
  • 5
    11-809922038 NUT
    NUT
  • 6
    63568 SCREW
    SCREW
  • 7
    12-30164 WASHER, (.192 x .375 x .0312) Stainless Steel
    WASHER, (.192 x .375 x .0312) Stainless Steel
  • 8
    84-95084A9 CABLE ASSEMBLY, (91.00 Inches) Red/Purple Strip, Fuse
    (Long Red)
    CABLE ASSEMBLY, (91.00 Inches) Red/Purple Strip, Fuse
    (Long Red)
  • 9
    88-79091 FUSE, 20 Ampere
    FUSE, 20 Ampere
  • 10
    84-95084A10 CABLE ASSEMBLY, (5.00 Inches) Red, Fuse
    (Short-Red)
    CABLE ASSEMBLY, (5.00 Inches) Red, Fuse
    (Short-Red)
