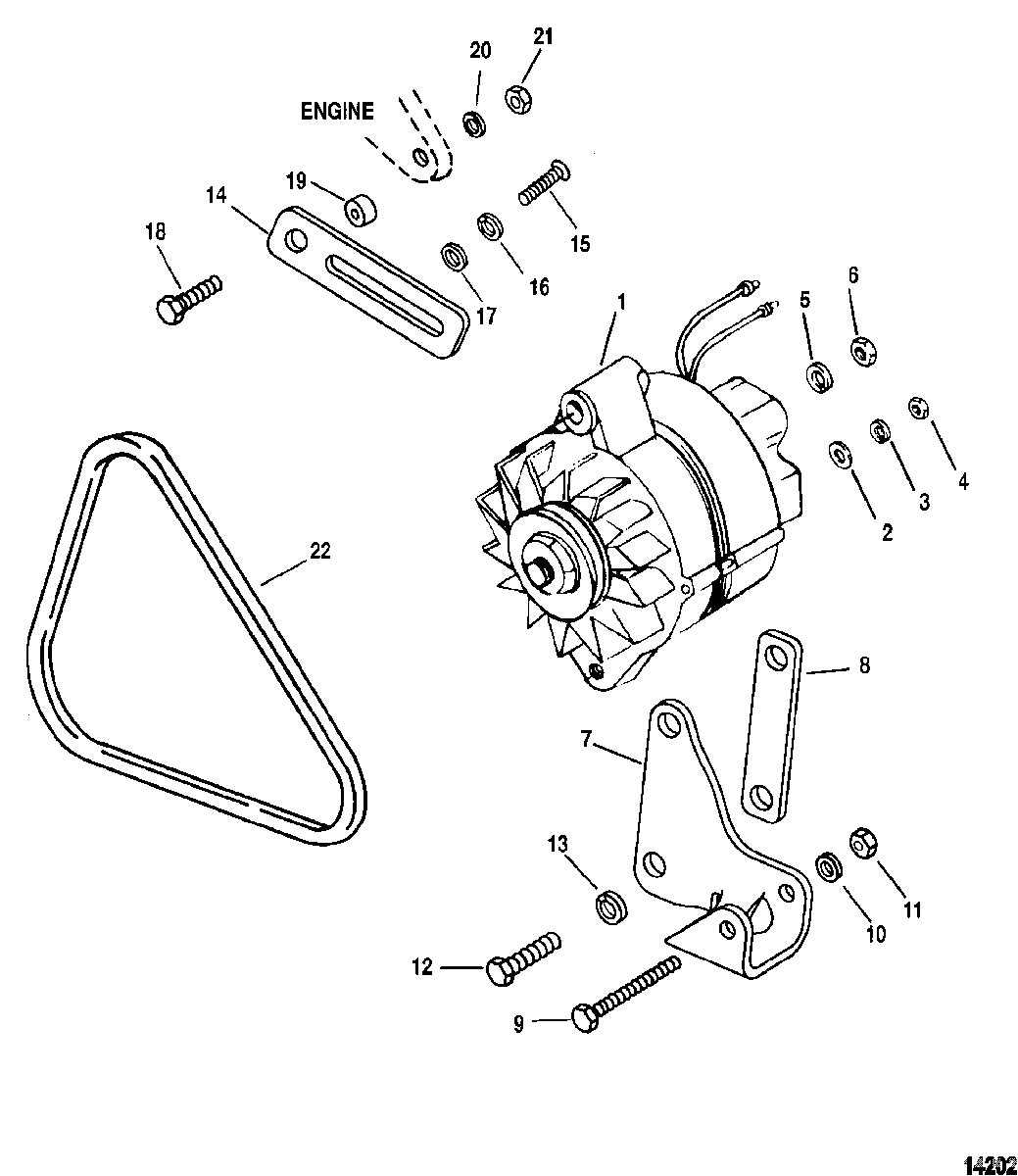

Alternator And Mounting(Serial #D725400, F306551 and Up) для Mercruiser - D3.0L (BRAVO) VM 183 I/L5 1994-1997 0D725152 THRU 0F999999

  • №
    Артикул
    Название
  • 1
    805884T ALTERNATOR
    ALTERNATOR
  • 2
    12-96457 WASHER, Phenolic (.27 x .81 x .062)
    WASHER, Phenolic (.27 x .81 x .062)
  • 3
    13-26992 LOCKWASHER, (.250) Stainless Steel
    LOCKWASHER, (.250) Stainless Steel
  • 4
    11-94330 NUT, (.250-20) Brass
    NUT, (.250-20) Brass
  • 5
    19-36996 PLUG (#10)
    PLUG (#10)
  • 6
    11-79989 NUT, (#10-24) Stainless Steel
    NUT, (#10-24) Stainless Steel
  • 7
    806979T BRACKET
    BRACKET
  • 8
    807035T SPACER PLATE
    SPACER PLATE
  • 9
    10-68299 SCREW, (.375-16 x 3.00) Stainless Steel
    SCREW, (.375-16 x 3.00) Stainless Steel
  • 10
    12-4002320 WASHER
    WASHER
  • 11
    11-82670912 NUT, (.375-16)
    NUT, (.375-16)
  • 12
    13-4002510 LOCKWASHER
    LOCKWASHER
  • 13
    806980T BRACE
    BRACE
  • 14
    10-35386 SCREW, (.312-18 x 1.00)
    SCREW, (.312-18 x 1.00)
  • 15
    13-53166 LOCKWASHER, (.312)
    LOCKWASHER, (.312)
  • 16
    12-814806 WASHER, (.344 x .688 x .065) Stainless Steel
    WASHER, (.344 x .688 x .065) Stainless Steel
  • 17
    10-4000382 SCREW, (M10 x 60)
    SCREW, (M10 x 60)
  • 18
    23-807029 BUSHING
    BUSHING
  • 19
    12-4002319 WASHER
    WASHER
  • 20
    11-4013610 NUT, (M10)
    NUT, (M10)
  • 21
    57-64032Q1 V BELT
    V BELT
