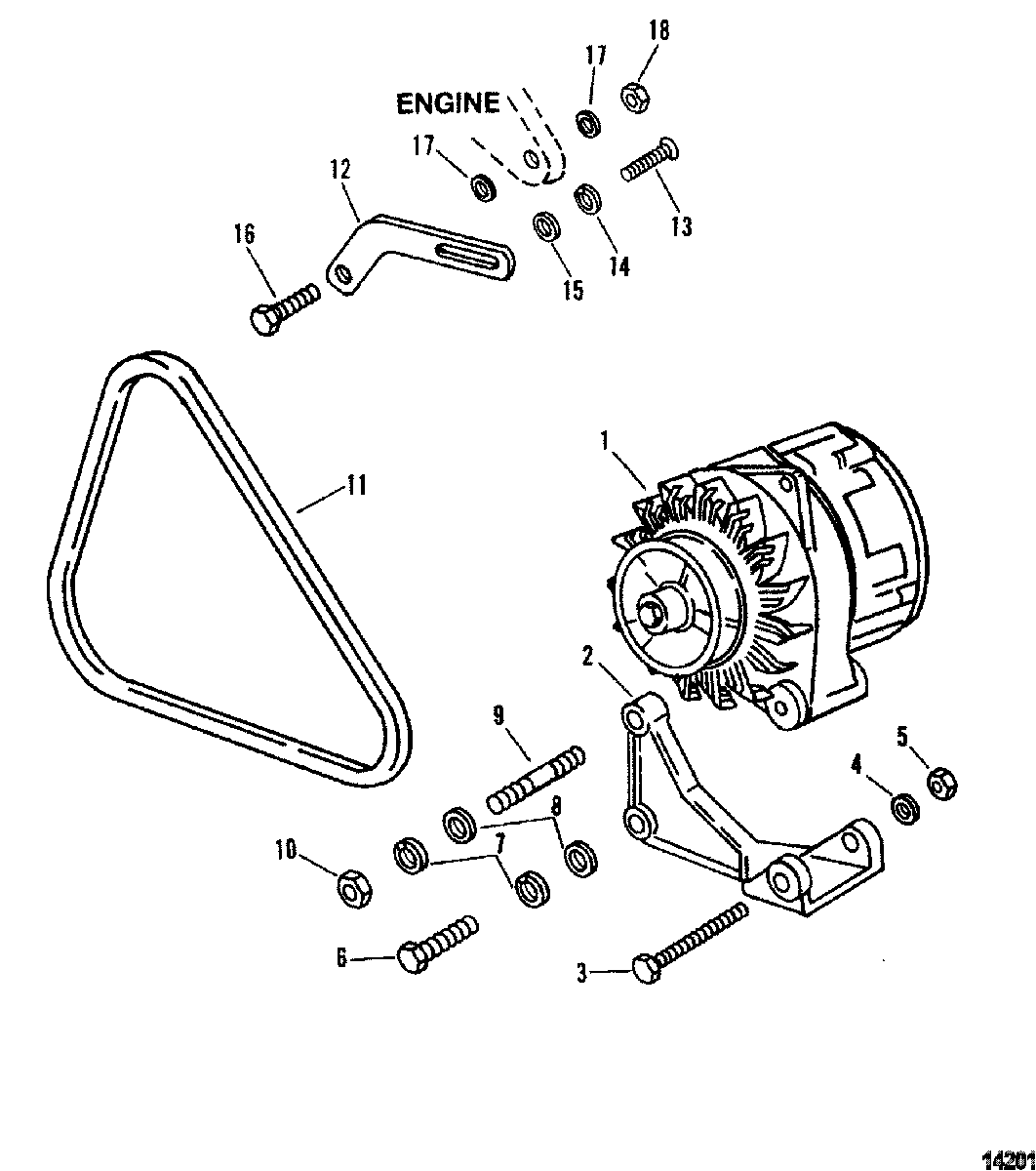

Alternator And Mounting(Serial #D725399, F306550 and Below) для Mercruiser - D3.0L (BRAVO) VM 183 I/L5 1994-1997 0D725152 THRU 0F999999

  • №
    Артикул
    Название
  • 1
    805884T ALTERNATOR
    (Prestolite)
    ALTERNATOR
    (Prestolite)
  • 1A
    805884T ALTERNATOR
    (Mando)
    ALTERNATOR
    (Mando)
  • 2
    801763465 SUPPORT
    SUPPORT
  • 3
    10-809912567 SCREW
    SCREW
  • 4
    12-4002217 WASHER
    WASHER
  • 5
    11-815088 NUT, (M8)
    NUT, (M8)
  • 6
    10-811476 SCREW
    SCREW
  • 7
    13-879194375 LOCKWASHER
    LOCKWASHER
  • 8
    12-811480 WASHER
    WASHER
  • 9
    16-806621 STUD
    STUD
  • 10
    11-879172161 NUT
    NUT
  • 11
    57-44207Q V BELT
    V BELT
  • 12
    806422 BRACE
    BRACE
  • 13
    10-35386 SCREW, (.312-18 x 1.00)
    SCREW, (.312-18 x 1.00)
  • 14
    13-53166 LOCKWASHER, (.312)
    LOCKWASHER, (.312)
  • 15
    12-814806 WASHER, (.344 x .688 x .065) Stainless Steel
    WASHER, (.344 x .688 x .065) Stainless Steel
  • 16
    10-4000377 SCREW, (M10 x 30)
    SCREW, (M10 x 30)
  • 17
    12-4002320 WASHER
    WASHER
  • 18
    11-4013610 NUT, (M10)
    NUT, (M10)
  • 19
    12-96457 WASHER, Phenolic (.27 x .81 x .062)
    (Mando Alternator)
    WASHER, Phenolic (.27 x .81 x .062)
    (Mando Alternator)
  • 20
    13-26992 LOCKWASHER, (.250) (.250 Inch)
    (Mando Alternator)
    LOCKWASHER, (.250) (.250 Inch)
    (Mando Alternator)
  • 21
    11-94330 NUT, (.250-20) Brass
    (Mando Alternator)
    NUT, (.250-20) Brass
    (Mando Alternator)
  • 22
    19-36996 PLUG (#10)
    (Mando Alternator)
    PLUG (#10)
    (Mando Alternator)
  • 23
    11-79989 NUT, (#10-24) Stainless Steel
    (Mando Alternator)
    NUT, (#10-24) Stainless Steel
    (Mando Alternator)
