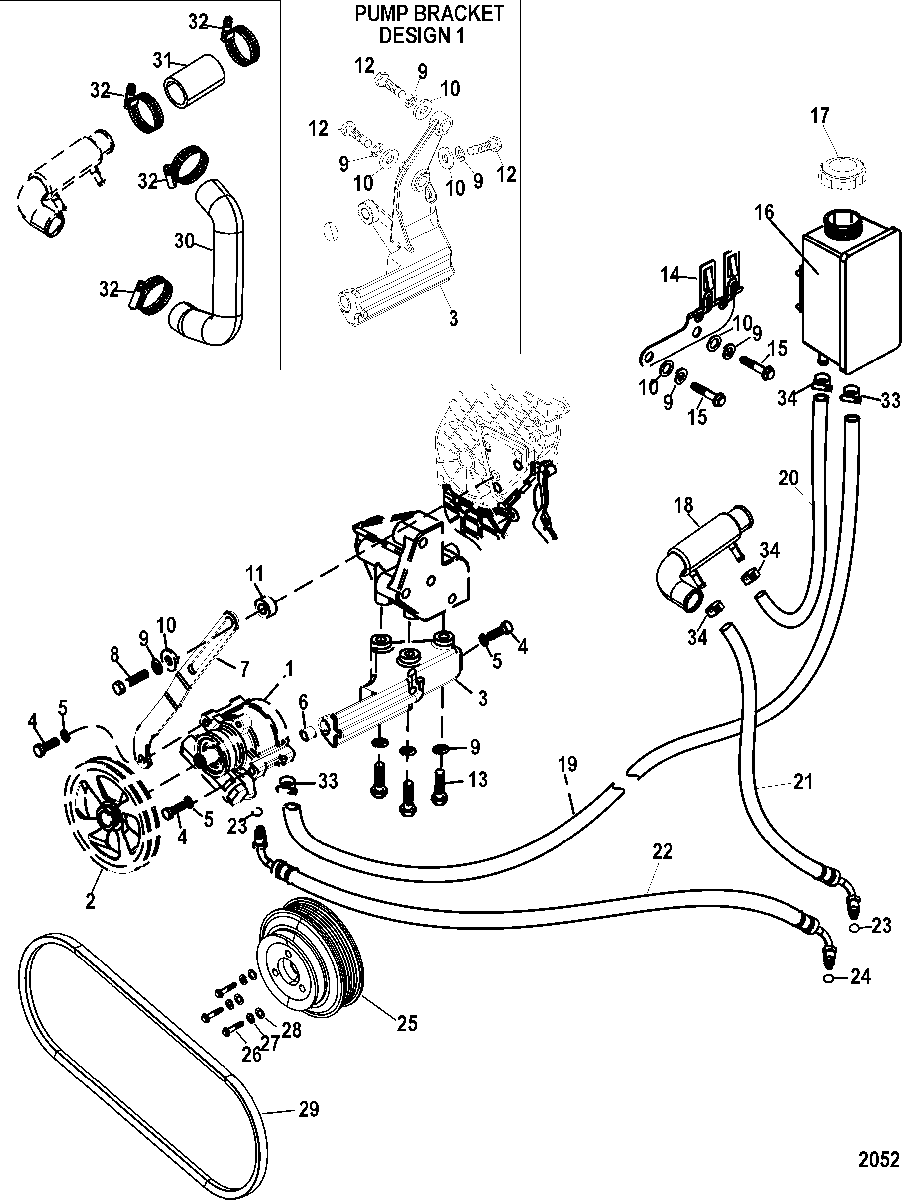

POWER STEERING COMPONENTS для Mercruiser - D1.7L DTI 0M055000 THRU 0M999999

  • №
    Артикул
    Название
  • 1
    806230T PUMP, Power Steering
    PUMP, Power Steering
  • 2
    863403T PULLEY, Power Steering
    PULLEY, Power Steering
  • 3
    863399T BRACKET, Pump
    BRACKET, Pump
  • 4
    10-40001134 SCREW, (M8 x 25)
    SCREW, (M8 x 25)
  • 5
    13-400247 LOCKWASHER, (M8)
    LOCKWASHER, (M8)
  • 6
    23-864181 SPACER
    SPACER
  • 7
    863401 BRACKET, Pump Tension
    BRACKET, Pump Tension
  • 7
    864341 BRACKET, Pump Tension
    BRACKET, Pump Tension
  • 8
    10-40001197 SCREW, (M10 x 35)
    SCREW, (M10 x 35)
  • 9
    13-400248 LOCKWASHER, (M10)
    LOCKWASHER, (M10)
  • 10
    12-25909 WASHER, (.406 x .812 x .065)
    WASHER, (.406 x .812 x .065)
  • 11
    23-863400 SPACER
    SPACER
  • 12
    10-4000383 SCREW, (M10 x 70)
    SCREW, (M10 x 70)
  • 13
    10-81516265 BOLT, (M10 x 65)
    BOLT, (M10 x 65)
  • 14
    863749 BRACKET, Reservoir
    BRACKET, Reservoir
  • 15
    10-40001192 SCREW, (M10 x 25)
    SCREW, (M10 x 25)
  • 16
    865264A06 RESERVOIR ASSEMBLY, Power Steering Fluid
    RESERVOIR ASSEMBLY, Power Steering Fluid
  • 17
    806216 CAP, Power Steering Reservoir
    CAP, Power Steering Reservoir
  • 18
    863939T COOLER, Power Steering
    COOLER, Power Steering
  • 19
    32-86280833 HOSE
    HOSE
  • 20
    32-8M0062341 HOSE, (216.00 Inches Bulk)
    HOSE, (216.00 Inches Bulk)
  • 21
    32-80622136 HOSE
    HOSE
  • 22
    32-80622216 HOSE
    HOSE
  • 23
    25-89879 O-RING, (.301 x .064)
    O-RING, (.301 x .064)
  • 24
    25-806232 O-RING, (.239 x .064)
    O-RING, (.239 x .064)
  • 25
    863404T PULLEY, Water Pump
    PULLEY, Water Pump
  • 26
    10-4000331 SCREW, (M6 x 30)
    SCREW, (M6 x 30)
  • 27
    13-400256 LOCKWASHER, (M6)
    LOCKWASHER, (M6)
  • 28
    12-4002316 WASHER
    WASHER
  • 29
    57-864187Q BELT, Power Assisted Steering Pulley
    BELT, Power Assisted Steering Pulley
  • 30
    32-863819 HOSE
    HOSE
  • 31
    32-863047 HOSE
    HOSE
  • 32
    54-815504220 CLAMP, Worm Gear, Hose
    CLAMP, Worm Gear, Hose
  • 33
    54-815504210 CLAMP, Worm Gear, Hose
    CLAMP, Worm Gear, Hose
  • 34
    54-815504105 CLAMP, Worm Gear (11-18 mm), Hose
    CLAMP, Worm Gear (11-18 mm), Hose
