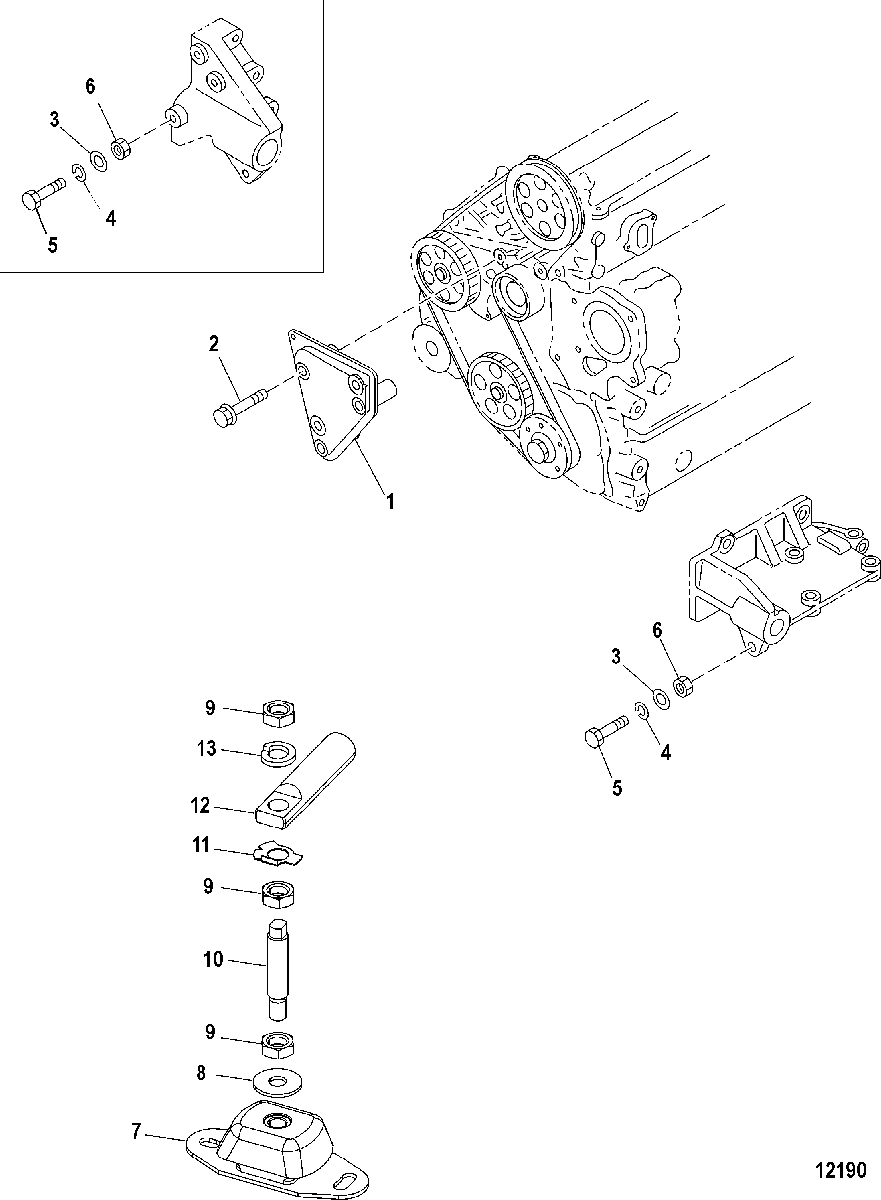

ENGINE MOUNTS для Mercruiser - D1.7L DTI 0M055000 THRU 0M999999

  • №
    Артикул
    Название
  • 1
    888747 FOOT, Engine
    ( MFG on or Prior to Oct-01 )
    FOOT, Engine
    ( MFG on or Prior to Oct-01 )
  • 2
    10-882311 SCREW, (M10 x 60) (M10 x 60)
    SCREW, (M10 x 60) (M10 x 60)
  • 3
    13-882636 LOCKWASHER, Lock
    LOCKWASHER, Lock
  • 4
    12-882642 WASHER
    WASHER
  • 5
    10-882310 SCREW, (M10 x 50) (M10 x 50)
    SCREW, (M10 x 50) (M10 x 50)
  • 6
    11-882725 NUT, (M10) (M10)
    NUT, (M10) (M10)
  • 7
    98323A6 BASE ASSEMBLY
    BASE ASSEMBLY
  • 8
    12-33171 WASHER, (.6406 x 1.750 x .125)
    WASHER, (.6406 x 1.750 x .125)
  • 9
    11-20739 NUT, (.750-16)
    NUT, (.750-16)
  • 10
    16-8M0022149 STUD, (.750-16 x Special)
    STUD, (.750-16 x Special)
  • 11
    14-66658 TAB WASHER, Tab
    TAB WASHER, Tab
  • 12
    66166A4 TRUNNION
    TRUNNION
  • 13
    13-68102 LOCKWASHER, (.750)
    LOCKWASHER, (.750)
