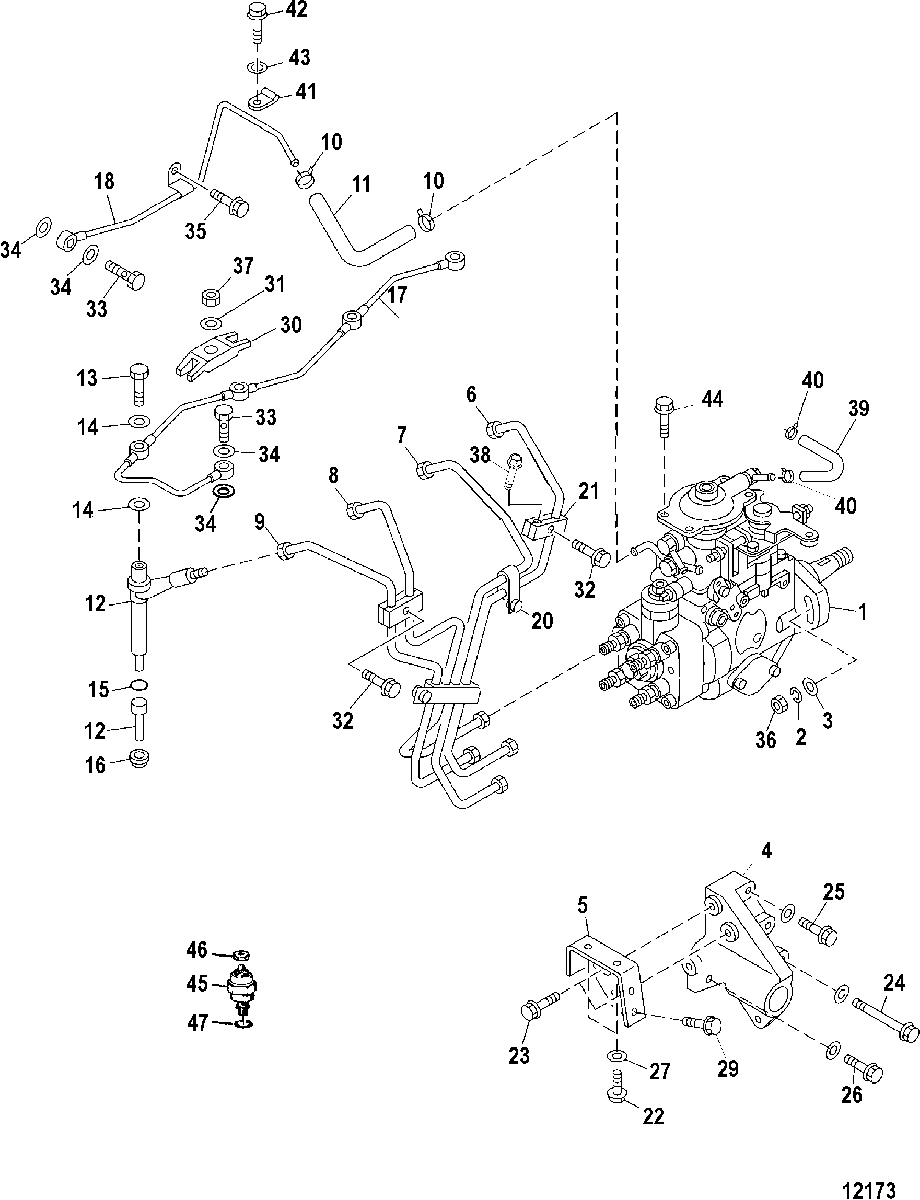

FUEL INJECTION SYSTEM для Mercruiser - D1.7L DTI 0M055000 THRU 0M999999

  • №
    Артикул
    Название
  • 1
    882554 PUMP ASSEMBLY, Fuel Injection
    PUMP ASSEMBLY, Fuel Injection
  • 2
    13-882641 LOCKWASHER
    LOCKWASHER
  • 3
    12-882645 WASHER
    WASHER
  • 4
    882557 BRACKET, Injection Pump
    BRACKET, Injection Pump
  • 5
    882618 BRACKET, Injection Pump
    BRACKET, Injection Pump
  • 6
    32-882733 PIPE, Injection
    PIPE, Injection
  • 7
    32-882734 PIPE, Injection
    PIPE, Injection
  • 8
    8M0075939 PIPE, Injection
    PIPE, Injection
  • 9
    32-882736 PIPE, Injection
    PIPE, Injection
  • 10
    54-882660 CLIP, Hose
    CLIP, Hose
  • 11
    32-882600 HOSE, Rubber, Fuel Leak
    HOSE, Rubber, Fuel Leak
  • 12
    882555 NOZZLE ASSEMBLY, Inection
    NOZZLE ASSEMBLY, Inection
  • 13
    10-882498 SCREW
    SCREW
  • 14
    27-882497 GASKET, Leak Off Pipe
    GASKET, Leak Off Pipe
  • 15
    27-882488 GASKET, Injection Nozzle
    GASKET, Injection Nozzle
  • 16
    27-882418 GASKET, Injection Nozzle
    GASKET, Injection Nozzle
  • 17
    882437 PIPE, Fuel, Nozzle Leak Off
    PIPE, Fuel, Nozzle Leak Off
  • 18
    882568 PIPE, Fuel, Nozzle Leak Off
    PIPE, Fuel, Nozzle Leak Off
  • 19
    54-883890 CLIP, Injection Pipe
    CLIP, Injection Pipe
  • 20
    8M0075939 CLIP, Injection Pipe
    CLIP, Injection Pipe
  • 21
    8M0075939 CLIP, Injection Pipe
    CLIP, Injection Pipe
  • 22
    10-882309 SCREW, (M10 x 16) (M10 x 16)
    SCREW, (M10 x 16) (M10 x 16)
  • 23
    10-8M0115083 SCREW, (M8 x 18) (M8 x 18)
    SCREW, (M8 x 18) (M8 x 18)
  • 24
    10-882333 BOLT AND LOCKWASHER, (M10 x 16)
    BOLT AND LOCKWASHER, (M10 x 16)
  • 25
    10-882621 SCREW, (M10 x 50) (M10 x 50)
    SCREW, (M10 x 50) (M10 x 50)
  • 26
    10-882624 SCREW, (M10 x 28) (M10 x 28)
    SCREW, (M10 x 28) (M10 x 28)
  • 27
    12-882646 WASHER
    WASHER
  • 28
    13-882640 LOCKWASHER
    LOCKWASHER
  • 29
    10-882319 SCREW, (M8 x 16) (M8 x 16)
    SCREW, (M8 x 16) (M8 x 16)
  • 30
    8M0098322 BRACKET, Injection Nozzle
    BRACKET, Injection Nozzle
  • 31
    12-882345 WASHER
    WASHER
  • 32
    10-882434 SCREW, (M5 x 22) (M5 x 22)
    SCREW, (M5 x 22) (M5 x 22)
  • 33
    10-882659 SCREW
    SCREW
  • 34
    27-882651 GASKET, Leak Off Pipe
    GASKET, Leak Off Pipe
  • 35
    10-882290 SCREW, (M6 x 10), Flange (M6 x 10)
    SCREW, (M6 x 10), Flange (M6 x 10)
  • 36
    11-882632 NUT, (M8) (M8)
    NUT, (M8) (M8)
  • 37
    11-882633 NUT, (M10) (M10)
    NUT, (M10) (M10)
  • 38
    17-882740 PIN
    PIN
  • 39
    32-882577 HOSE, Boost
    HOSE, Boost
  • 40
    54-882660 CLIP, Hose
    CLIP, Hose
  • 41
    54-882352 CLIP, Fuel Pipe
    CLIP, Fuel Pipe
  • 42
    10-882306 SCREW, (M10 x 12) (M10 x 12)
    SCREW, (M10 x 12) (M10 x 12)
  • 43
    12-882642 WASHER
    WASHER
  • 44
    10-882629 SCREW, (M6 x 20), Flange (M6 x 12)
    SCREW, (M6 x 20), Flange (M6 x 12)
  • 45
    811406 VALVE, Fuel Shut Off
    VALVE, Fuel Shut Off
  • 46
    11-809922038 NUT
    NUT
  • 47
    12-811407 WASHER
    WASHER
