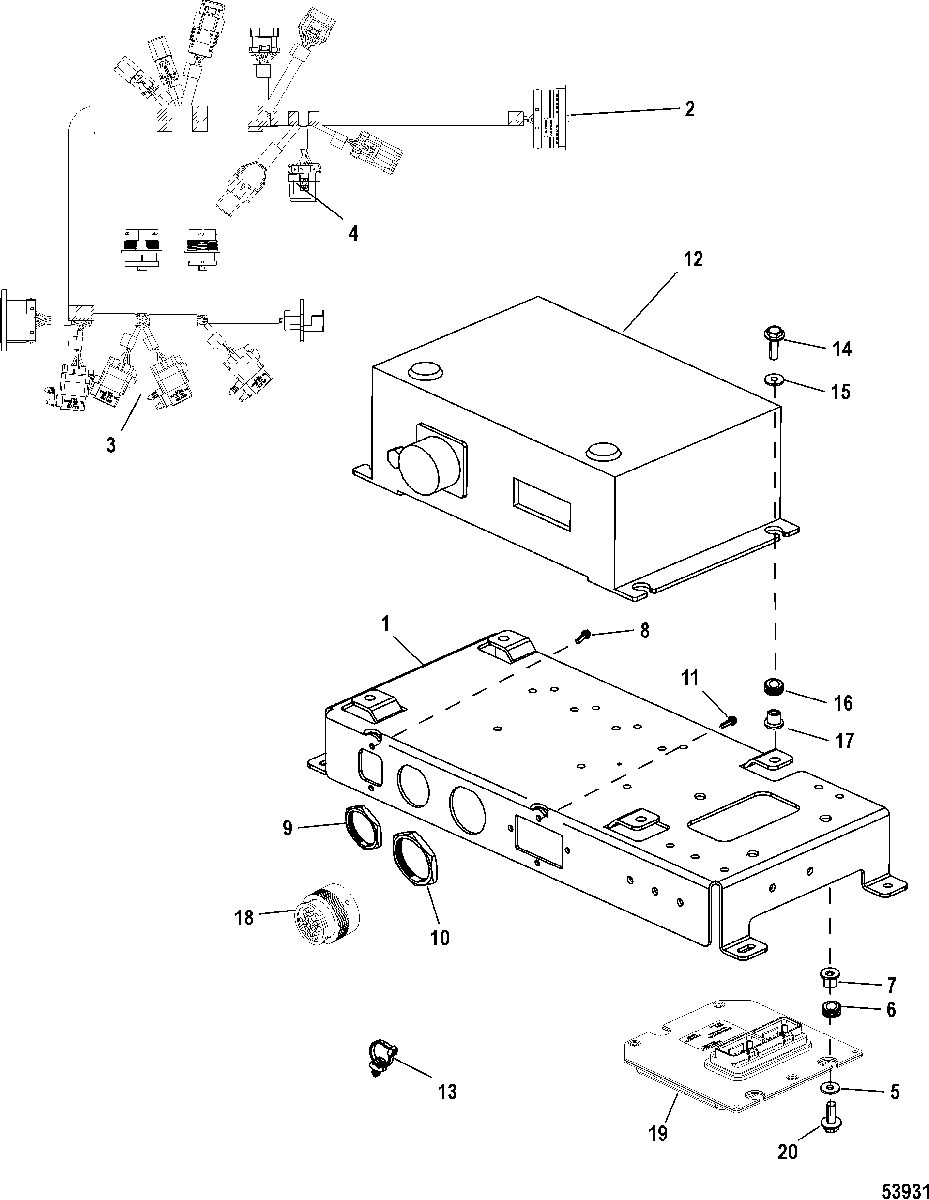

VESSEL ADAPTER ASSEMBLY для Mercruiser - 3.0L TDI 260 IB ALL & Up

  • №
    Артикул
    Название
  • 1
    8M0083042 ELECTRICAL BRACKET
    ELECTRICAL BRACKET
  • 2
    84-8M0082626 HARNESS, VAA
    HARNESS, VAA
  • 3
    882751 RELAY
    RELAY
  • 4
    88-83296910 FUSE, Mini - Red - 10 Ampere
    FUSE, Mini - Red - 10 Ampere
  • 4
    88-832969T15 FUSE, Mini - Blue - 15 Ampere
    FUSE, Mini - Blue - 15 Ampere
  • 4
    88-832969T05 FUSE, Mini - Tan - 5 Ampere
    FUSE, Mini - Tan - 5 Ampere
  • -
    8M2005497 VIBRATION ISOLATOR KIT, Washer, Bushing, and Grommet
    VIBRATION ISOLATOR KIT, Washer, Bushing, and Grommet
  • 5
    12-25908 WASHER, (.265 x .812 x .0625)
    WASHER, (.265 x .812 x .0625)
  • 6
    23-856954 BUSHING
    BUSHING
  • 7
    25-834985 GROMMET
    GROMMET
  • 8
    10-4005685 SCREW, (M4 x 10)
    SCREW, (M4 x 10)
  • 9
    11-889664 NUT, (1.500-18) Black Nylon
    NUT, (1.500-18) Black Nylon
  • 10
    11-8M2001655 NUT
    NUT
  • 11
    10-4001186 SCREW, (M4 X 13) HEX WASH HD SS
    SCREW, (M4 X 13) HEX WASH HD SS
  • 12
    8M6005049 ELECTRIC CONTROL ASSEMBLY, Design I
    All but 150 HP Module
    ELECTRIC CONTROL ASSEMBLY, Design I
    All but 150 HP Module
  • 12
    8M6005049 ELECTRIC CONTROL ASSEMBLY, Design II
    All Horsepowers
    ELECTRIC CONTROL ASSEMBLY, Design II
    All Horsepowers
  • 13
    54-899145 CLIP, Tie Strap
    CLIP, Tie Strap
  • 14
    10-82130025 SCREW, (M6 x 25)
    SCREW, (M6 x 25)
  • 15
    12-25908 WASHER, (.265 x .812 x .0625)
    WASHER, (.265 x .812 x .0625)
  • 16
    23-856954 BUSHING
    BUSHING
  • 17
    25-834985 GROMMET
    GROMMET
  • 18
    98-8M0096723 PLUG, 19 Pin
    PLUG, 19 Pin
  • 19
    77-8M0086454 SIM MODULE, 260 DTS SD
    SIM MODULE, 260 DTS SD
  • 19
    77-8M0086455 SIM MODULE, 260 MECH SD
    SIM MODULE, 260 MECH SD
  • 19
    77-8M0086456 SIM MODULE, 230 DTS SD
    SIM MODULE, 230 DTS SD
  • 19
    77-8M0086459 SIM MODULE, 230 MECH SD
    SIM MODULE, 230 MECH SD
  • 19
    77-8M0100484 SIM MODULE, 230 DTS SD 3500 RPM
    SIM MODULE, 230 DTS SD 3500 RPM
  • 19
    77-8M0100482 SIM MODULE, 230 MECH SD 3500 RPM
    SIM MODULE, 230 MECH SD 3500 RPM
  • 19
    77-8M0101192 SIM MODULE, 150 DTS SD
    SIM MODULE, 150 DTS SD
  • 19
    77-8M0101191 SIM MODULE, 150 MECH SD
    SIM MODULE, 150 MECH SD
  • 19
    77-8M0086461 SIM MODULE, 100 DTS SD
    SIM MODULE, 100 DTS SD
  • 19
    77-8M0086462 SIM MODULE, 100 MECH SD
    SIM MODULE, 100 MECH SD
  • 19
    77-8M0086463 SIM MODULE, 260 DTS IB
    SIM MODULE, 260 DTS IB
  • 19
    77-8M0086464 SIM MODULE, 260 MECH IB
    SIM MODULE, 260 MECH IB
  • 19
    77-8M0086465 SIM MODULE, 230 DTS IB 4000 RPM
    SIM MODULE, 230 DTS IB 4000 RPM
  • 19
    77-8M0086467 SIM MODULE, 230 MECH IB 4000 RPM
    SIM MODULE, 230 MECH IB 4000 RPM
  • 19
    77-8M0086469 SIM MODULE, 230 MECH IB 3500 RPM
    SIM MODULE, 230 MECH IB 3500 RPM
  • 20
    10-8M0103807 SCREW, (M6 x 25 MM) Stainless Steel
    SCREW, (M6 x 25 MM) Stainless Steel
