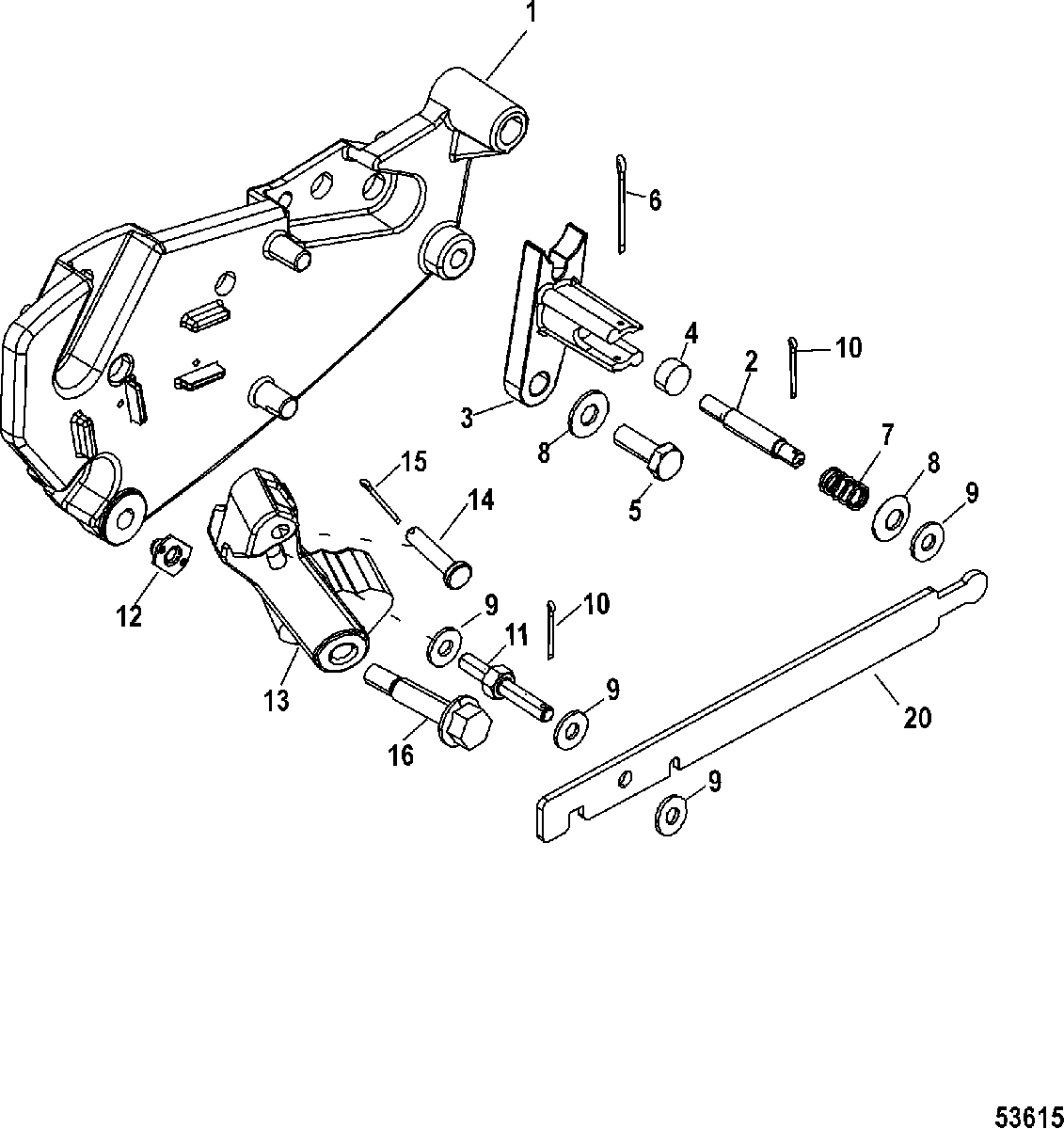

Shift Bracket, Bravo для Mercruiser - 3.0L TDI 260 IB ALL & Up

  • №
    Артикул
    Название
  • 1
    99237A27 BRACKET ASSEMBLY, Shift
    BRACKET ASSEMBLY, Shift
  • 2
    16-865154A02 STUD KIT, (.250-20/.250-28 x 2.120), With Cotter Pin
    STUD KIT, (.250-20/.250-28 x 2.120), With Cotter Pin
  • 3
    865434A02 RETAINER KIT, Shift Cable, With Cotter Pin
    RETAINER KIT, Shift Cable, With Cotter Pin
  • 4
    23-98828 SPACER
    SPACER
  • 5
    10-53167T SCREW, .312-18X .88
    SCREW, .312-18X .88
  • 6
    18-328571 COTTER PIN
    COTTER PIN
  • 7
    24-98880 SPRING
    SPRING
  • 8
    12-56720 WASHER, (.330 x .750 x .060) Stainless Steel
    WASHER, (.330 x .750 x .060) Stainless Steel
  • 9
    12-35462 WASHER, (.2656 x .625 x .0625) Stainless Steel
    WASHER, (.2656 x .625 x .0625) Stainless Steel
  • 10
    18-210711 COTTER PIN
    COTTER PIN
  • 11
    16-865393A02 STUD KIT, (.250-28 x 1.90), With Cotter Pin
    STUD KIT, (.250-28 x 1.90), With Cotter Pin
  • 12
    11-63341 TEE NUT
    TEE NUT
  • 13
    863911A12 LEVER ASSEMBLY, Shift
    LEVER ASSEMBLY, Shift
  • 14
    17-68402 PIN, (.250 x 1.13), Clevis
    PIN, (.250 x 1.13), Clevis
  • 15
    18-210711 COTTER PIN
    COTTER PIN
  • 16
    10-865148 SHOULDER SCREW, (.312-18 x 1.843) Stainless Steel
    SHOULDER SCREW, (.312-18 x 1.843) Stainless Steel
  • 17
    91-12427T TOOL, Shift Adjust
    TOOL, Shift Adjust
