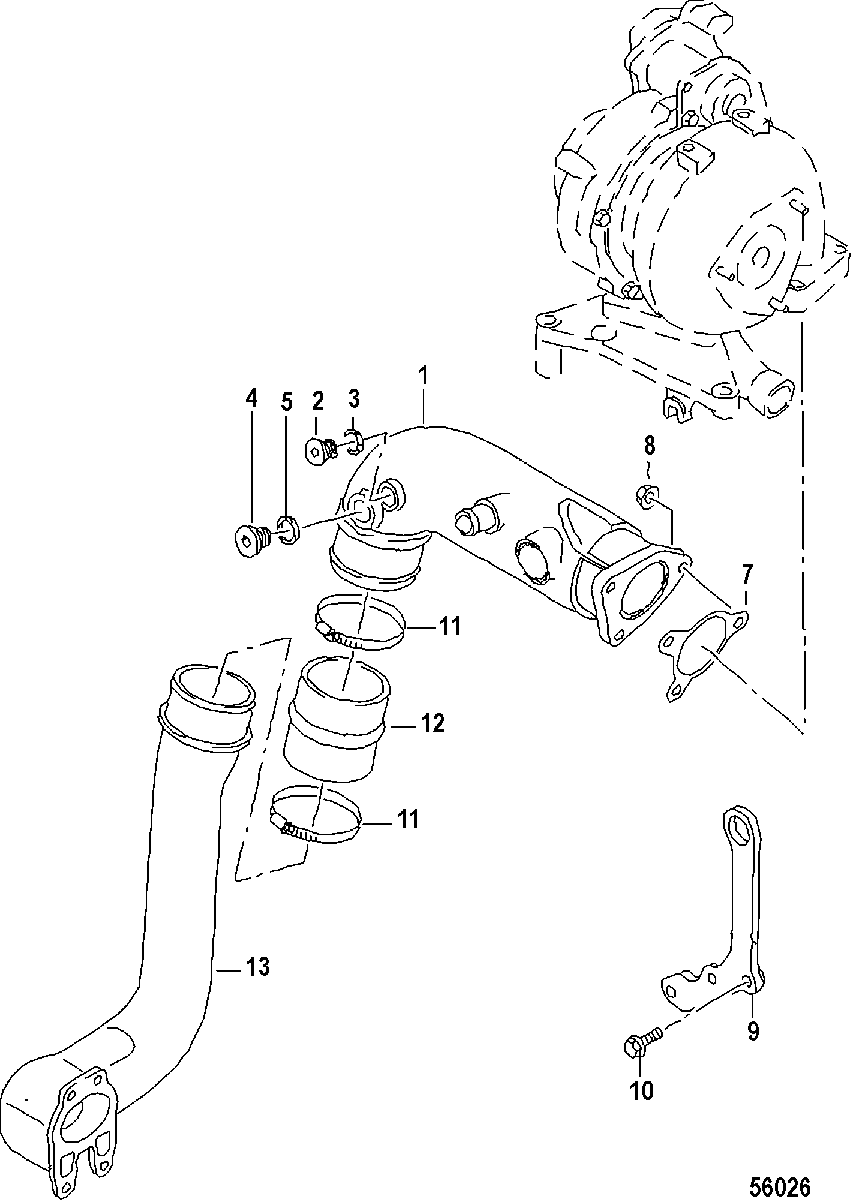

EXHAUST PIPE для Mercruiser - 3.0L TDI 260 IB ALL & Up

  • №
    Артикул
    Название
  • 1
    8M0080713 ELBOW
    Inboard
    ELBOW
    Inboard
  • 1
    8M0080714 RISER
    Sterndrive
    RISER
    Sterndrive
  • 2
    22-8M0068566 PLUG , M16x1.3
    PLUG , M16x1.3
  • 3
    8M0089018 O-RING, 17x23
    O-RING, 17x23
  • 4
    22-8M0068567 PLUG , M21x1.8
    PLUG , M21x1.8
  • 5
    25-8M0068349 O-RING, 21X26
    O-RING, 21X26
  • NS
    22-8M0068100 PLUG , 20
    PLUG , 20
  • 7
    27-8M0068026 GASKET , 62MM
    GASKET , 62MM
  • 8
    11-8M0068560 NUT LOCK
    NUT LOCK
  • 9
    NSS NOT SOLD SEPARATE, Bracket
    NOT SOLD SEPARATE, Bracket
  • 10
    10-8M0068232 SCREW , M8x25
    SCREW , M8x25
  • 11
    54-8M0067057 CLAMP, T BOLT, 100-120MM
    CLAMP, T BOLT, 100-120MM
  • NS
    19-8M0074364 CAP, Clamp
    CAP, Clamp
  • 12
    32-8M0141554 HOSE
    HOSE
  • 13
    8M0067339 EXHAUST PIPE ASSEMBLY, Bullhorn
    Sterndrive
    EXHAUST PIPE ASSEMBLY, Bullhorn
    Sterndrive
  • NS
    10-8M0113174 SCREW, (.375-16 x 1.25), Bullhorn
    Sterndrive
    SCREW, (.375-16 x 1.25), Bullhorn
    Sterndrive
  • NS
    13-41471 LOCKWASHER, (.375), Bullhorn
    Sterndrive
    LOCKWASHER, (.375), Bullhorn
    Sterndrive
  • NS
    92-8M0068055 HOT BOLT PASTE, 170G
    HOT BOLT PASTE, 170G
  • NS
    56-8M0094355 PARTS BAG, Exhaust Water Bypass
    Sterndrive
    PARTS BAG, Exhaust Water Bypass
    Sterndrive
  • NS
    22-8M0095046 FITTING KIT, Shaft Log Cooler
    Inboard
    FITTING KIT, Shaft Log Cooler
    Inboard
