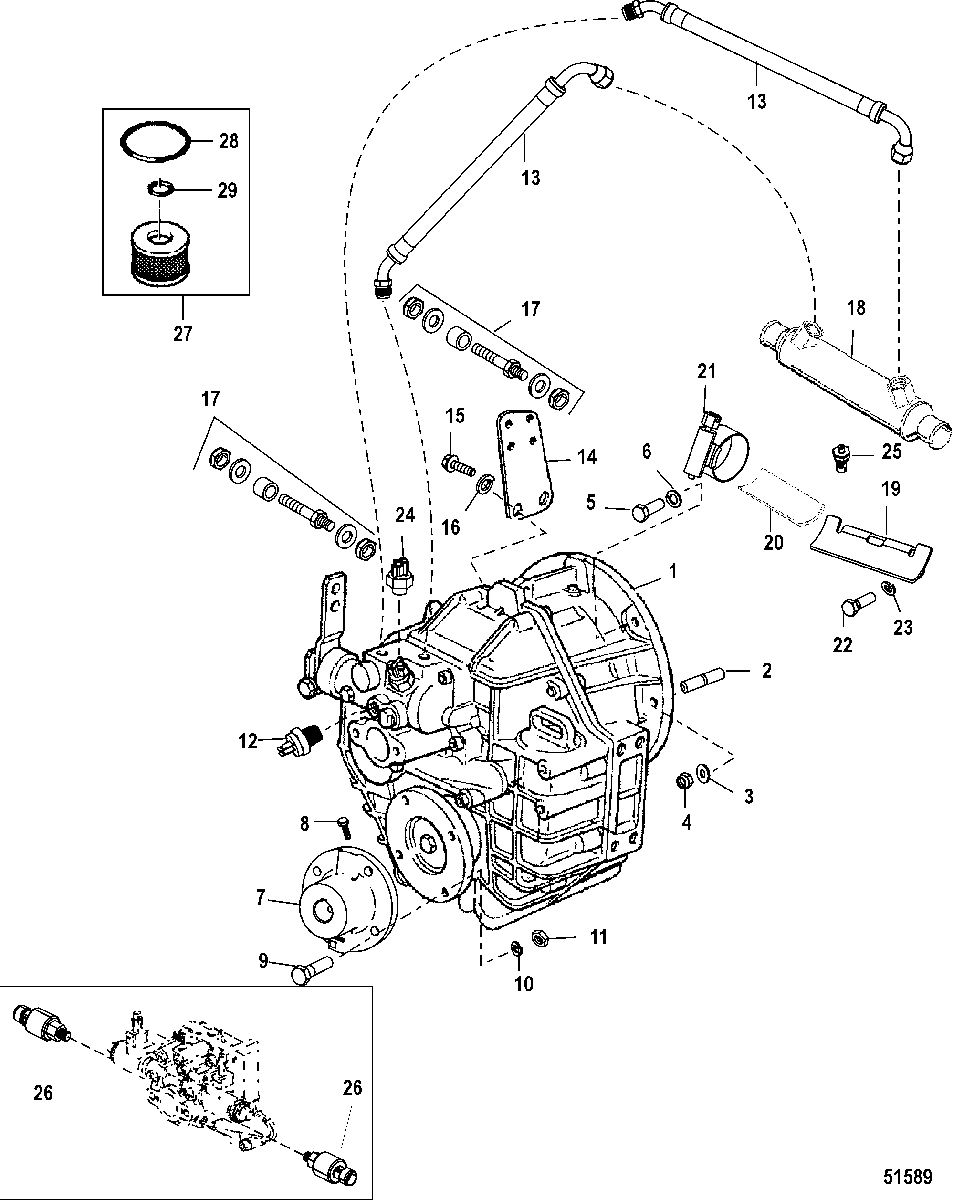

Transmission and Related Parts(Hurth 630/800) для Mercruiser - 8.2L INBOARD (H.O.) EC 2A041665 & Up

  • №
    Артикул
    Название
  • 1
    865703T02 TRANSMISSION, (1.5:1 Ratio) (630A) Down Angle
    Electric Shift
    TRANSMISSION, (1.5:1 Ratio) (630A) Down Angle
    Electric Shift
  • 1
    865703T03 TRANSMISSION, (2.0:1 Ratio) (630A) Down Angle
    Electric Shift
    TRANSMISSION, (2.0:1 Ratio) (630A) Down Angle
    Electric Shift
  • 1
    865703T04 TRANSMISSION, (2.50:1 Ratio) (630A) Down Angle
    Electric Shift
    TRANSMISSION, (2.50:1 Ratio) (630A) Down Angle
    Electric Shift
  • 1
    865703T05 TRANSMISSION, (2.70:1 Ratio) (630A) Down Angle
    Electric Shift
    TRANSMISSION, (2.70:1 Ratio) (630A) Down Angle
    Electric Shift
  • 1
    865705T01 TRANSMISSION, (2.85:1 Ratio) (800A) Down Angle
    Electric Shift
    TRANSMISSION, (2.85:1 Ratio) (800A) Down Angle
    Electric Shift
  • 1
    865704T02 TRANSMISSION, (1.5:1 Ratio) (630V) V-Drive
    Electric Shift
    TRANSMISSION, (1.5:1 Ratio) (630V) V-Drive
    Electric Shift
  • 1
    865704T03 TRANSMISSION, (2.0:1 Ratio) (630V) V-Drive
    Electric Shift
    TRANSMISSION, (2.0:1 Ratio) (630V) V-Drive
    Electric Shift
  • 1
    865704T04 TRANSMISSION, (2.5:1 Ratio) (630V) V-Drive
    Electric Shift
    TRANSMISSION, (2.5:1 Ratio) (630V) V-Drive
    Electric Shift
  • 2
    16-805259 STUD
    STUD
  • 2
    16-8M0034453 STUD, (7/16 x 2.19)
    (Hurth 800A Only)
    STUD, (7/16 x 2.19)
    (Hurth 800A Only)
  • 3
    12-22248 WASHER, (.453 x .875 x .060)
    WASHER, (.453 x .875 x .060)
  • 3
    12-79552 WASHER, (.453 x .750 x .062) Stainless Steel
    (Hurth 800A Only)
    WASHER, (.453 x .750 x .062) Stainless Steel
    (Hurth 800A Only)
  • 4
    11-82670815 NUT, (.437-20)
    NUT, (.437-20)
  • 4
    11-859116 NUT, (.437-20)
    (Hurth 800A Only)
    NUT, (.437-20)
    (Hurth 800A Only)
  • 5
    10-47462 SCREW, (.437-14 x 1.250)
    SCREW, (.437-14 x 1.250)
  • 6
    13-32993 LOCKWASHER, (.437)
    LOCKWASHER, (.437)
  • 7
    79476A1 FLANGE ASSEMBLY, (5.00 x 1.00)
    FLANGE ASSEMBLY, (5.00 x 1.00)
  • 7
    79476A3 FLANGE ASSEMBLY, (5.00 x 1.25)
    FLANGE ASSEMBLY, (5.00 x 1.25)
  • 7
    79476A4 FLANGE ASSEMBLY, (5.00 x 1.375)
    FLANGE ASSEMBLY, (5.00 x 1.375)
  • 7
    79476A5 FLANGE ASSEMBLY, (5.00 x 1.50)
    FLANGE ASSEMBLY, (5.00 x 1.50)
  • 7
    79476A6 FLANGE ASSEMBLY, (5.00 x 1.75)
    FLANGE ASSEMBLY, (5.00 x 1.75)
  • 8
    10-60171 SCREW, (.375-16 x 1.250)
    SCREW, (.375-16 x 1.250)
  • 8
    10-60169 SCREW, (.375-16 x .750)
    SCREW, (.375-16 x .750)
  • 9
    10-805159 SCREW, (.437-20 x 1.500)
    SCREW, (.437-20 x 1.500)
  • 10
    13-32993 LOCKWASHER, (.437)
    LOCKWASHER, (.437)
  • 11
    11-22024 NUT, (.437-14)
    NUT, (.437-14)
  • 12
    87-88031 SWITCH ASSEMBLY
    SWITCH ASSEMBLY
  • 13
    32-8054781 HOSE, (19.50)
    HOSE, (19.50)
  • 14
    806238 BRACKET
    BRACKET
  • 15
    10-40001124 SCREW, (M8 x 14)
    SCREW, (M8 x 14)
  • 16
    13-400247 LOCKWASHER, (M8)
    LOCKWASHER, (M8)
  • 17
    16-97477A3 STUD KIT
    STUD KIT
  • 18
    863832T01 COOLER, Transmission Oil
    COOLER, Transmission Oil
  • 19
    805546A2 BRACKET, Oil Cooler
    BRACKET, Oil Cooler
  • 20
    772233 PAD
    PAD
  • 21
    54-815504232 CLAMP, Worm Gear (2.50 Diameter)
    CLAMP, Worm Gear (2.50 Diameter)
  • 22
    10-35047 SCREW, (.375-16 x 1.250) Stainless Steel
    SCREW, (.375-16 x 1.250) Stainless Steel
  • 23
    13-35048 LOCKWASHER, (.375)
    LOCKWASHER, (.375)
  • 24
    87-813300 SWITCH, Neutral Safety
    SWITCH, Neutral Safety
  • 25
    8M6000623 SENSOR
    SENSOR
  • 26
    865664 PRESSURE TRANSDUCER, 500 PSI
    Digital Throttle and Shift
    PRESSURE TRANSDUCER, 500 PSI
    Digital Throttle and Shift
  • 27
    35-879194241 FILTER KIT, Oil
    FILTER KIT, Oil
  • 28
    25-813407 O-RING
    O-RING
  • 29
    25-813406 O-RING
    O-RING
