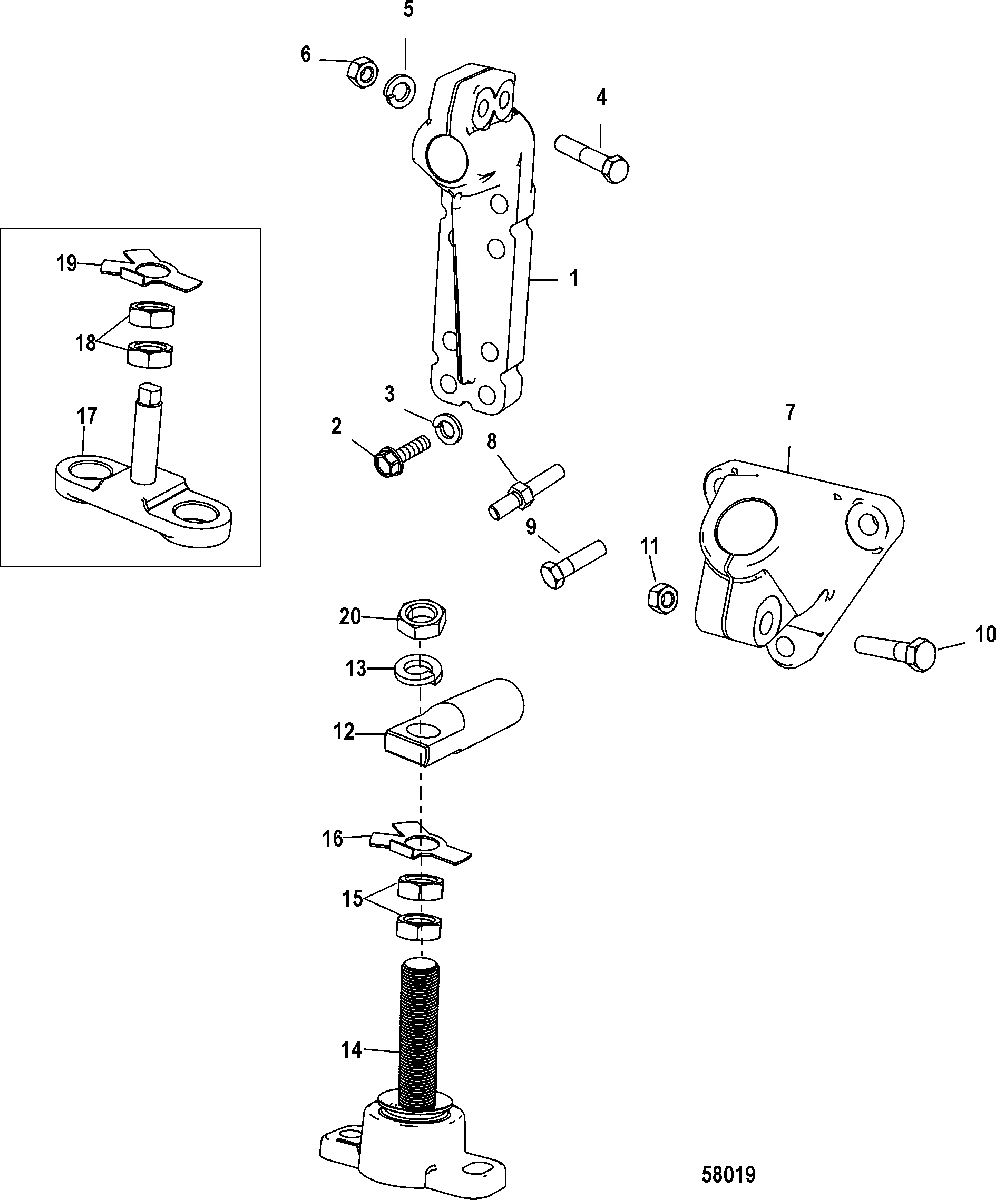

Transmission and Engine Mounting, Hurth 630/800 для Mercruiser - 8.2L INBOARD (H.O.) EC 2A041665 & Up
-
№АртикулНазвание
-
118903T02 BRACKETBRACKET
-
210-4007750 SCREW, (M12 x 50)SCREW, (M12 x 50)
-
313-38829 LOCKWASHER, (.500)LOCKWASHER, (.500)
-
410-57357 SCREW, (.437-13 x 2.250)SCREW, (.437-13 x 2.250)
-
513-32993 LOCKWASHER, (.437)LOCKWASHER, (.437)
-
611-82670814 NUT, (.437-14)NUT, (.437-14)
-
766418T BRACKET, FrontBRACKET, Front
-
816-8M2004610 STUD, (.375-16 x 2.130)
StarboardSTUD, (.375-16 x 2.130)
Starboard -
910-865982007 SCREW, (.375-16 x 1.25) Hex Flange
StarboardSCREW, (.375-16 x 1.25) Hex Flange
Starboard -
910-865982007 SCREW, (.375-16 x 1.25) Hex Flange
PortSCREW, (.375-16 x 1.25) Hex Flange
Port -
1010-37269 SCREW, (.437-14 x 2.00)SCREW, (.437-14 x 2.00)
-
1111-82670814 NUT, (.437-14)NUT, (.437-14)
-
1266166A4 TRUNNIONTRUNNION
-
1313-68102 LOCKWASHER, (.750)LOCKWASHER, (.750)
-
1466284A2 BASE ASSEMBLYBASE ASSEMBLY
-
1511-20739 NUT, (.750-16)NUT, (.750-16)
-
1614-66658 TAB WASHERTAB WASHER
-
17816326A2 BASE ASSEMBLYBASE ASSEMBLY
-
1811-816331 NUT, (.750-16)NUT, (.750-16)
-
1914-66658 TAB WASHERTAB WASHER
-
2011-20739 NUT, (.750-16)NUT, (.750-16)
