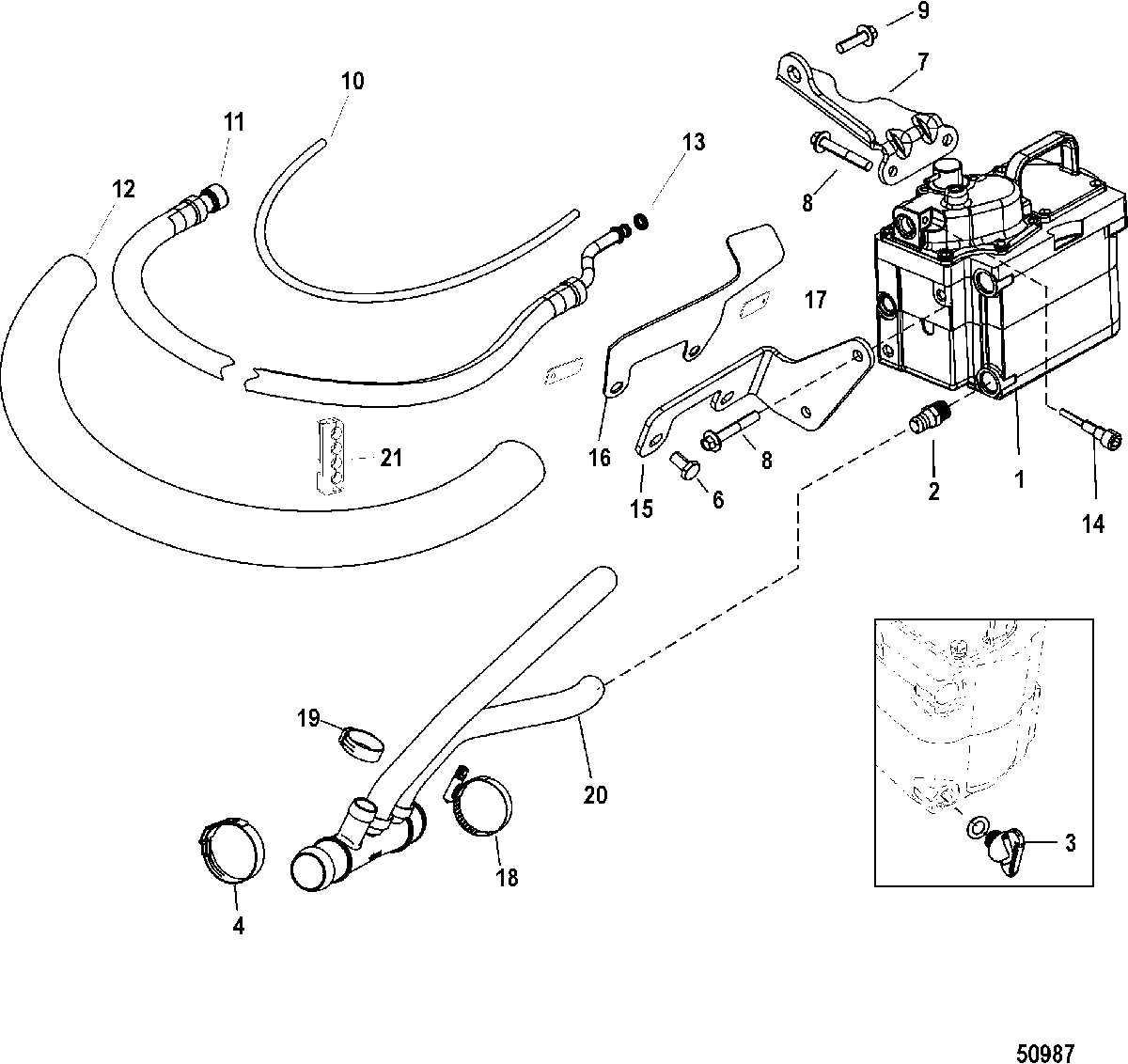

Cool Fuel System для Mercruiser - 8.2L INBOARD (H.O.) EC 2A041665 & Up

  • №
    Артикул
    Название
  • 1
    8M0047215 MODULE KIT, Fuel Pump, Complete
    MODULE KIT, Fuel Pump, Complete
  • 1
    8M0047215 MODULE KIT, Fuel Pump, Complete, With Drain Port
    MODULE KIT, Fuel Pump, Complete, With Drain Port
  • 2
    22-8M2010476 FITTING, (3/8-18)
    FITTING, (3/8-18)
  • 3
    22-8M0119211 PLUG ASSEMBLY, (.500-13) Blue, Housing With Drain Port Only
    PLUG ASSEMBLY, (.500-13) Blue, Housing With Drain Port Only
  • 4
    54-815504220 CLAMP, Worm Gear
    CLAMP, Worm Gear
  • 5
    54-815504222 CLAMP, Worm Gear (1.98 DIameter)
    CLAMP, Worm Gear (1.98 DIameter)
  • 6
    10-40001195 SCREW, (M10 x 30)
    SCREW, (M10 x 30)
  • 7
    8M2017251 BRACKET, Support, Fuel Module
    BRACKET, Support, Fuel Module
  • 8
    10-4010720 SCREW, (M8 x 20)
    SCREW, (M8 x 20)
  • 9
    10-8M2017668 SCREW, (7/16-14 x 1.00)
    SCREW, (7/16-14 x 1.00)
  • 10
    32-8M0063567 HOSE, 58.00 inch Bulk
    HOSE, 58.00 inch Bulk
  • 11
    32-8M0046149 LINE, Fuel, Fuel Module to Fuel Rail
    LINE, Fuel, Fuel Module to Fuel Rail
  • 12
    NSS NOT SOLD SEPARATE, INSULATOR SLEEVE
    NOT SOLD SEPARATE, INSULATOR SLEEVE
  • 13
    26-863151 SEAL, Quad Ring
    SEAL, Quad Ring
  • 14
    10-866114 SCREW, (.250-28) Special
    SCREW, (.250-28) Special
  • 15
    864468T BRACKET
    BRACKET
  • 16
    8M0065221 SHIELD, Fuel Line
    SHIELD, Fuel Line
  • 17
    54-8M6500043 CLIP, Ignition
    CLIP, Ignition
  • 18
    54-815504232 CLAMP, Worm Gear (2.50 Diameter)
    CLAMP, Worm Gear (2.50 Diameter)
  • 19
    54-815504212 CLAMP, Worm Gear
    CLAMP, Worm Gear
  • 20
    22-8M0045363 HOSE ASSEMBLY, 3 Bib Orifice Meter
    HOSE ASSEMBLY, 3 Bib Orifice Meter
  • 21
    54-8M6500044 CLIP, Ignition, Dual
    CLIP, Ignition, Dual
