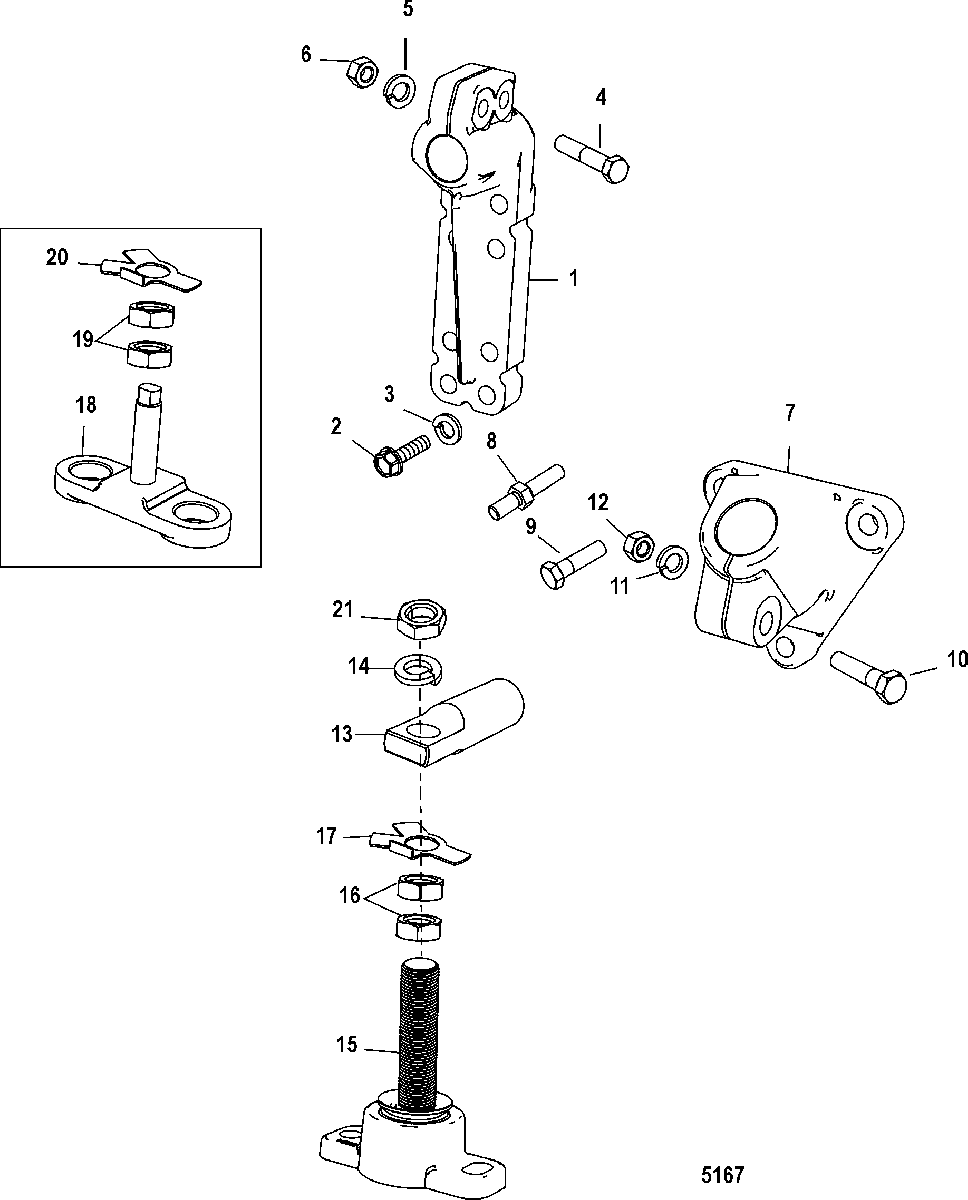

Transmission and Engine Mounting, Hurth 630/800 для Mercruiser - 8.2L INBOARD (BASE) EC 1A350802 THRU 2A041664

  • №
    Артикул
    Название
  • 1
    18903T02 BRACKET
    BRACKET
  • 2
    10-4007750 SCREW, (M12 x 50)
    SCREW, (M12 x 50)
  • 3
    13-38829 LOCKWASHER, (.500)
    LOCKWASHER, (.500)
  • 4
    10-57357 SCREW, (.437-13 x 2.250)
    SCREW, (.437-13 x 2.250)
  • 5
    13-32993 LOCKWASHER, (.437)
    LOCKWASHER, (.437)
  • 6
    11-82670814 NUT, (.437-14)
    NUT, (.437-14)
  • 7
    66418T BRACKET, Front
    BRACKET, Front
  • 8
    16-8M2004610 STUD, (.375-16 x 2.130)
    Starboard
    STUD, (.375-16 x 2.130)
    Starboard
  • 9
    10-865982007 SCREW, (.375-16 x 1.25) Hex Flange
    Starboard
    SCREW, (.375-16 x 1.25) Hex Flange
    Starboard
  • 9
    10-865982007 SCREW, (.375-16 x 1.25) Hex Flange
    Port
    SCREW, (.375-16 x 1.25) Hex Flange
    Port
  • 10
    10-37269 SCREW, (.437-14 x 2.00)
    SCREW, (.437-14 x 2.00)
  • 11
    13-32993 LOCKWASHER, (.437)
    LOCKWASHER, (.437)
  • 12
    11-82670814 NUT, (.437-14)
    NUT, (.437-14)
  • 13
    66166A4 TRUNNION
    TRUNNION
  • 14
    13-68102 LOCKWASHER, (.750)
    LOCKWASHER, (.750)
  • 15
    66284A2 BASE ASSEMBLY
    BASE ASSEMBLY
  • 16
    11-20739 NUT, (.750-16)
    NUT, (.750-16)
  • 17
    14-66658 TAB WASHER
    TAB WASHER
  • 18
    816326A2 BASE ASSEMBLY
    BASE ASSEMBLY
  • 19
    11-816331 NUT, (.750-16)
    NUT, (.750-16)
  • 20
    14-66658 TAB WASHER
    TAB WASHER
  • 21
    11-20739 NUT, (.750-16)
    NUT, (.750-16)
