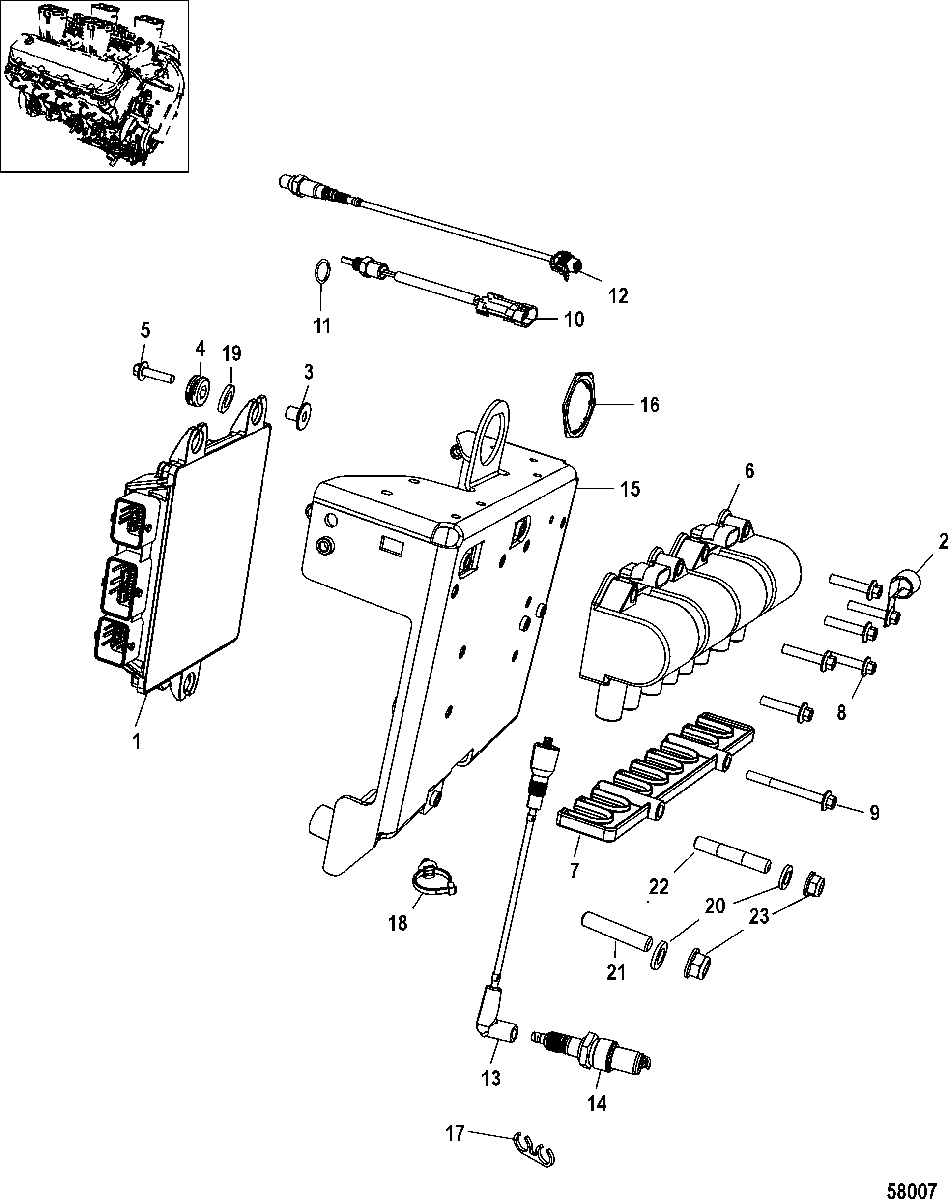

Electrical Components для Mercruiser - 8.2L INBOARD (BASE) EC 1A350802 THRU 2A041664

  • №
    Артикул
    Название
  • 1
    8M0059120 ECM, Engine Control Module, Base, Digital Throttle & Shift
    SN# 1A352945 & Below
    ECM, Engine Control Module, Base, Digital Throttle & Shift
    SN# 1A352945 & Below
  • 1
    78-8M0059264 PCM, Propulsion Control Module, Base, Digital Throttle & Shift
    SN# 1A352946 & Up
    PCM, Propulsion Control Module, Base, Digital Throttle & Shift
    SN# 1A352946 & Up
  • 1
    8M0059121 ECM, Engine Control Module, High Output, Digital Throttle & Shift
    SN# 1A352945 & Below
    ECM, Engine Control Module, High Output, Digital Throttle & Shift
    SN# 1A352945 & Below
  • 1
    78-8M0059265 PCM, Propulsion Control Module, High Output, Digital Throttle & Shift
    SN# 1A352946 & Up
    PCM, Propulsion Control Module, High Output, Digital Throttle & Shift
    SN# 1A352946 & Up
  • 2
    54-858951 J CLIP
    J CLIP
  • 3
    23-856954 BUSHING
    BUSHING
  • 4
    25-834985 GROMMET
    GROMMET
  • 5
    10-82130025 SCREW, (M6 x 25)
    SCREW, (M6 x 25)
  • 6
    841203T COIL, Ignition
    COIL, Ignition
  • 7
    8M0053613 RETAINER, Ignition Cable Support
    RETAINER, Ignition Cable Support
  • 8
    10-4010630 SCREW, (M6 x 30) Stainless Steel
    SCREW, (M6 x 30) Stainless Steel
  • 9
    10-88552560 SCREW, (M6 x60)
    SCREW, (M6 x60)
  • 10
    885342002 SENSOR ASSEMBLY, Water Temperature
    SENSOR ASSEMBLY, Water Temperature
  • 10
    885342002 SENSOR ASSEMBLY, Exhaust
    SENSOR ASSEMBLY, Exhaust
  • 11
    25-896699 O-RING, (1.78 mm x .08 mm)
    O-RING, (1.78 mm x .08 mm)
  • 12
    8M2003959 SENSOR, Oxygen
    SENSOR, Oxygen
  • 13
    84-899329A09 CABLE SET, High Tension-Set of Eight
    CABLE SET, High Tension-Set of Eight
  • 14
    33-8M0114747 SPARK PLUG
    SPARK PLUG
  • 15
    8M0045733 BRACKET, Electrical
    BRACKET, Electrical
  • 16
    11-889664 NUT, (1.500-18) Black Nylon
    NUT, (1.500-18) Black Nylon
  • 17
    54676 RETAINER, Two Wire
    RETAINER, Two Wire
  • 18
    54-899145 CLIP, Tie Strap
    CLIP, Tie Strap
  • 19
    12-65567 WASHER, (.265 x .750 x .048) Stainless Steel
    WASHER, (.265 x .750 x .048) Stainless Steel
  • 20
    12-45176 WASHER, (.453 x .812 x .105) Stainless Steel
    WASHER, (.453 x .812 x .105) Stainless Steel
  • 21
    16-56295 STUD, (.437 x 2.69), Electrical Bracket to Cylinder Head
    STUD, (.437 x 2.69), Electrical Bracket to Cylinder Head
  • 22
    16-8M0034453 STUD, (7/16 x 2.19), Electrical Bracket to Cylinder Head
    STUD, (7/16 x 2.19), Electrical Bracket to Cylinder Head
  • 23
    11-859135 NUT, (.437-20) Brass/Nickel Plated
    NUT, (.437-20) Brass/Nickel Plated
