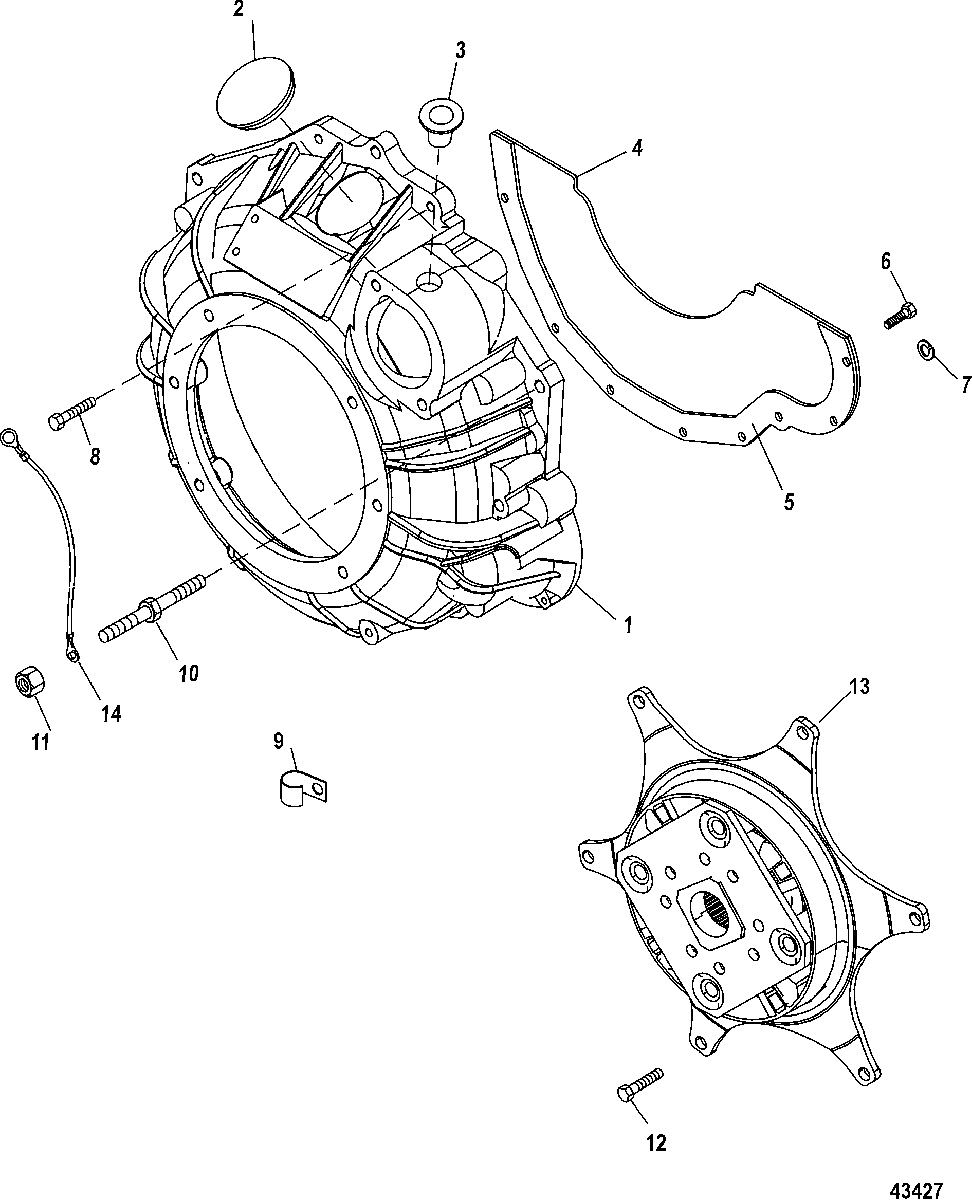

Flywheel Housing для Mercruiser - 8.2L INBOARD (BASE) EC 1A350802 THRU 2A041664

  • №
    Артикул
    Название
  • 1
    814309A1 HOUSING ASSEMBLY
    HOUSING ASSEMBLY
  • 2
    19-12304 PLUG
    PLUG
  • 3
    19-38606 CAPLUG, (#10)
    CAPLUG, (#10)
  • 4
    818718A4 COVER ASSEMBLY, Flywheel
    COVER ASSEMBLY, Flywheel
  • 5
    27-86015 GASKET
    GASKET
  • 6
    10-98253 SCREW, (.250-20 x .500)
    SCREW, (.250-20 x .500)
  • 7
    13-26992 LOCKWASHER, (.250) Stainless Steel
    LOCKWASHER, (.250) Stainless Steel
  • 8
    10-47277 SCREW, (.312-24 x .750)
    SCREW, (.312-24 x .750)
  • 8
    10-65210 SCREW, (.375-16 x 1.00)
    SCREW, (.375-16 x 1.00)
  • 8
    10-35047 SCREW, (.375-16 x 1.250) Stainless Steel
    SCREW, (.375-16 x 1.250) Stainless Steel
  • 8
    10-95802 SCREW, (.375-16 x 2.750) Stainless Steel
    SCREW, (.375-16 x 2.750) Stainless Steel
  • 9
    54-92850 CLAMP
    CLAMP
  • 10
    16-861316 STUD, Grounding, Stainless Steel
    STUD, Grounding, Stainless Steel
  • 11
    11-82671112 NUT, (.375-16)
    NUT, (.375-16)
  • 12
    10-863480 SCREW, (.375-16 x 1.125)
    SCREW, (.375-16 x 1.125)
  • 13
    862975A2 DRIVEPLATE ASSEMBLY
    DRIVEPLATE ASSEMBLY
  • 14
    84-62826T06 CABLE ASSEMBLY, Ground (13.00 Inches) Black
    CABLE ASSEMBLY, Ground (13.00 Inches) Black
